2.1 Specifications
Main Component Specifications

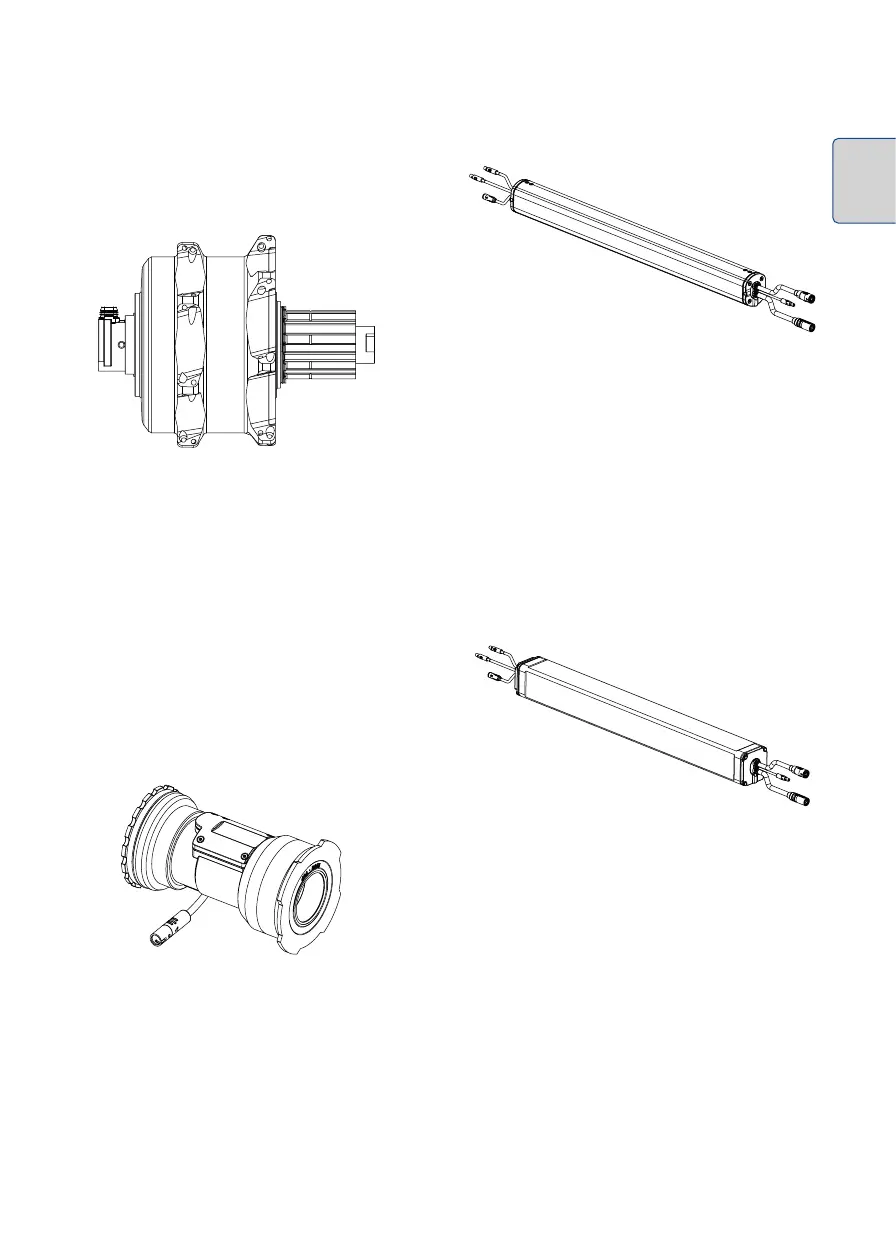

2.1.1. X20 Drive Unit
• R142 O.L.D. and Thru Axle (12 mm)
• 28 Straight-pull spokes
• 14G Standard
• Nominal voltage CA: 42 V
• 55Nm (Compared to Mid Drive)
• Compatible with 140mm flat mount calipers
• Max. Speed: 25km/h or 20 mph (Limited per region)
• Automatic Motor Connection System
• Standard Freewheel installation
• CAN BUS Interface
• Water ingress protection: IP64
• Weight: 1,399 grs (without freewheel)
2.1.2. X20 Torque & Cadence Sensor
• Nominal voltage CC: 6V
• Designed for press-fit BB shells
• 4 different models available (Dimensions depending on
the version and standard used)
• Cadence and torque reading
• Compatible with all spindles on the market
• Mixed press-fit and threaded mechanism
• 92 mm wire to battery
• CAN BUS Interface
• Water ingress protection: IP54
2.1.3. X250 – X20 Internal Battery
• Nominal voltage CA: 25-42 V
• Voltage & charging current CC: 42C – 2.1A / 4A
• Capacity: 236Wh / 36V
• Dimensions: 469.5 x 49.6 x 41.8 mm (LxWxH)
• CAN BUS Interface
• Water ingress protection: IP66
• 2 HMI-; Accessories connectors
• Light support 2A/6V (12W)/12V (24W) USB 2A/5V
• Weight: 1,500 grs
2.1.4. iX350 - X20 Internal Battery
• Nominal voltage CA: 25-42 V
• Voltage & charging CC: 42C – 2.1A / 4A
• Capacity: 350Wh / 36V
• Dimensions: 469.5 x 51 x 52 mm (LxWxH)
• Water ingress protection: IP54
• CAN BUS interface
• 2 HMI Accessories connectors
• Light support 2A/6V (12W) /12V (24W), USB 2A/5V
• Weight: 2,250 grs
