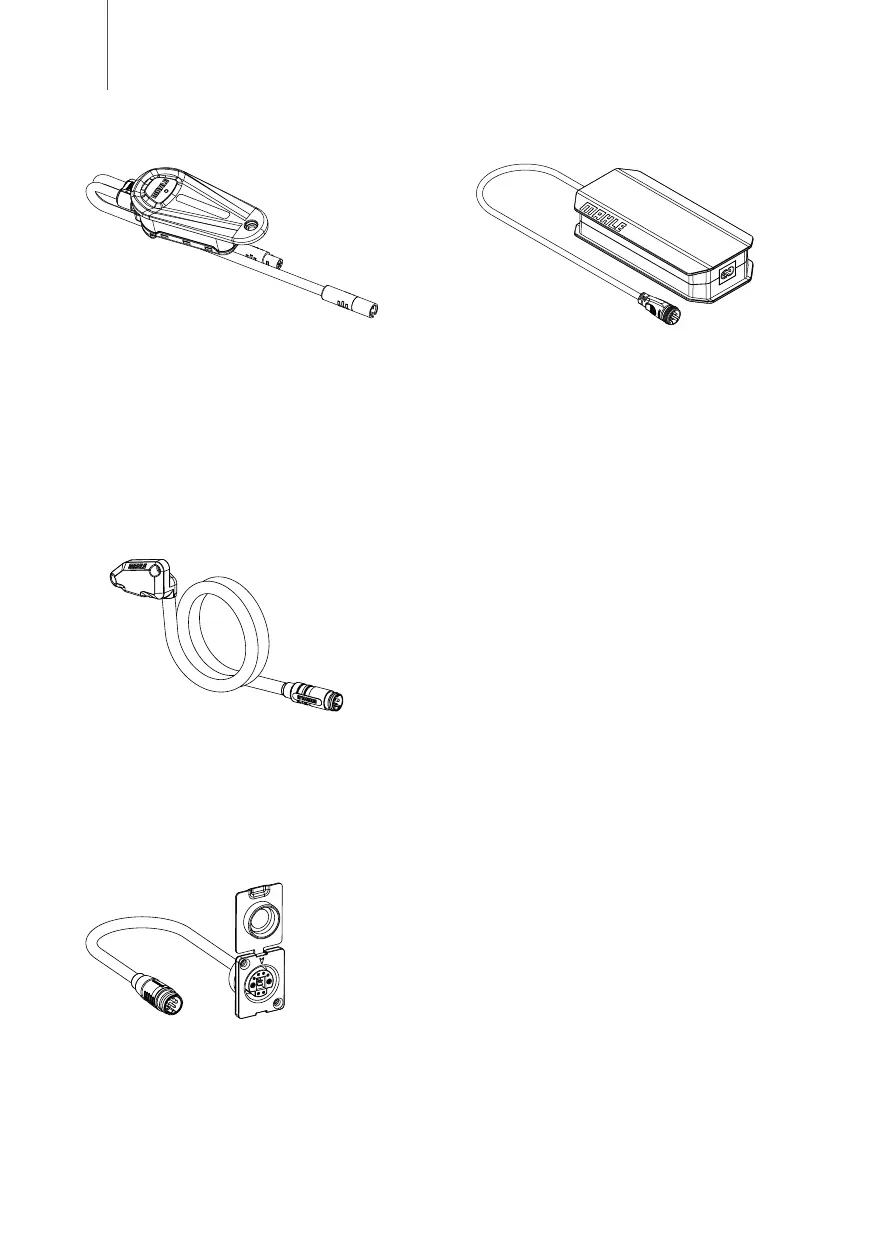

2.1.5. HMI Head Control Unit
• Voltage CC: 6V
• Ambient temperature: 60 C / -10C
• Dimensions: 73.1 x 28.2 x 18.9 mm (LxWxH)
• CAN BUS, ANT+ and Bluetooth® Interface
• Water ingress protection: IP54
• Weight: 32 grs
2.1.6. X20 Dropout Drive Unit Connector
• 550 mm cable length
• Water ingress protection: IP54
• Weight: 64 grs
2.1.7. Charger Port
• 6-pin connector with poka-yoke connection
• Water ingress protection: IP54
• Weight: 24 grs
010
MAHLE X20 System · General Overview
V.1.0.1 - 04/2022
2.1.8 Active Charger
• Nominal voltage AC: 90-246V, 50-60 Hz
• Nominal voltage CA: 42 V – 2.1A / 4A
• Voltage & charging CC: 42C – 2.1A / 4A
• Ambient temperature: 90 C / -15C
• Dimensions: 187 x 90 x 44.4 mm (LxWxH)
• Water ingress protection: IP20
• Weight: 690 grs
2.2 Compatible eBikes
The X20 System can only be assembled on eBikes which
were designed for the integration of X20 components. An
aftermarket- or retrofit application is not possible. The
eBike need to pass all the certifications and
homologations required by the specific regions in which
the bike is going to be sold. Please check the official
MAHLE SmartBike Systems website in order to access
our most updated list of eBikes on the market with our
X20 System:
Website: www.mahle-smartbike.com
To Next Page
