2.1. Main System
Protection Against Dust and splashing water in general,
except where otherwise indicated.

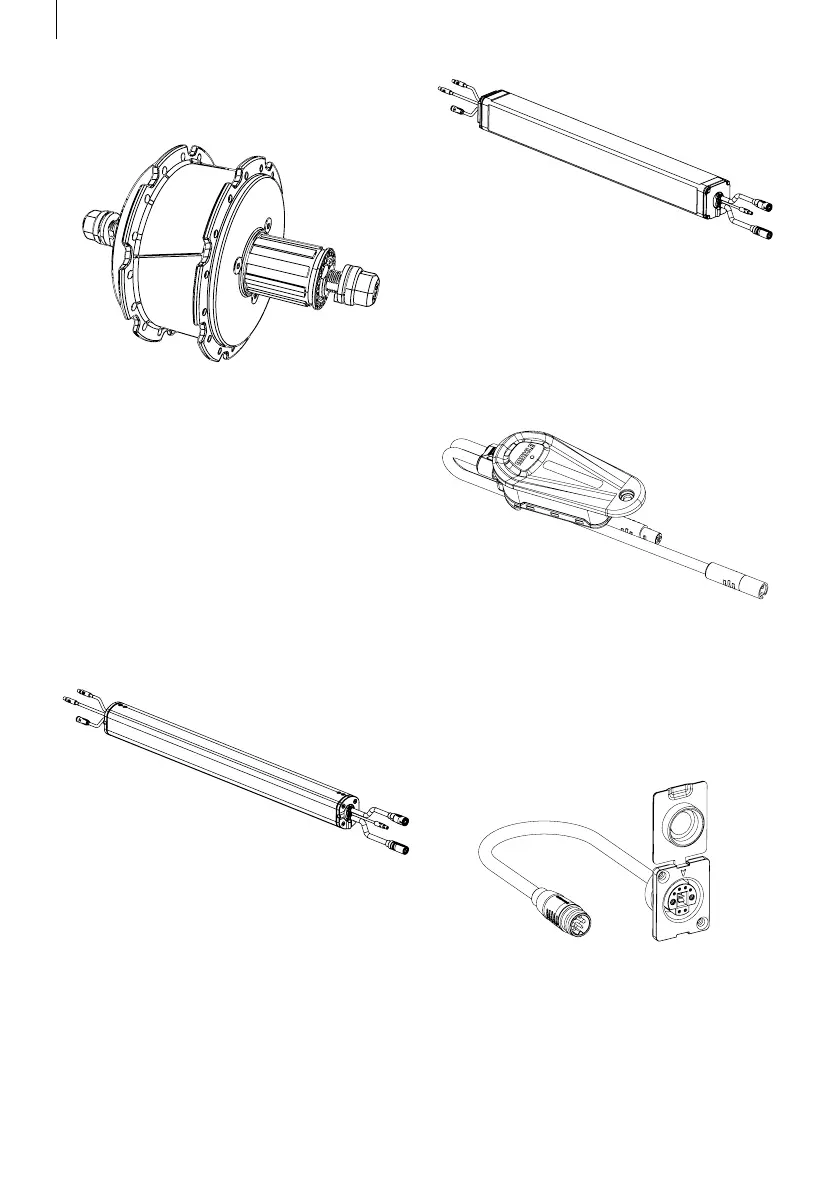

2.1.1. X30 Engine
• Engine with torque equivalent to that of a 45 Nm
mid-engine.
• O.L.D. Axis 136.5 mm.
• Rated voltage: 36 V.
• Max. speed: 25 km/h or 20 mph (limited by region).
• Motor connection system by means of a watertight
connector.
• Standard free wheel installation.
• CAN-BUS interface.
• Weight: 1,900 g (without core).
2.1.2. Internal Battery
There are two internal battery options for the MAHLE X30
system depending on their charging capacity.
2.1.2.1 iX2 Battery
• Capacity: 236 Wh.
• Rated voltage: 36 V.
• Maximum charge current: 3.2 A.
• Measurements: 469.5 x 49.6 x 41.8 mm.
• CAN-BUS interface.
• Energy support for accessories: 2A (maximum) /
12 V (maximum).
• Weight: 1,500 g.
2.1.2.2 iX3 Battery
• Capacity: 350 Wh.
• Rated voltage: 36 V.
• Maximum charge current: 4 A.
• Measurements: 469.5 x 51 x 52 mm.
• CAN-BUS interface.
• Energy support for accessories: 2A (maximum) /
12 V (maximum).
• Weight: 2250 g.
2.1.3. Control unit
• Action button.
• Light sensor.
• Measurements: 73.1 x 28.2 x 18.9 mm.
• Dynamic RGB LED interface.
• CAN-BUS, ANT+ and Bluetooth® interface.
• Temperature of use: -10 ºC to 60 ºC.
• Weight: 32 g.
2.1.4. Charging port
• 6-pin connector with single connection.
• Weight: 24 g.
