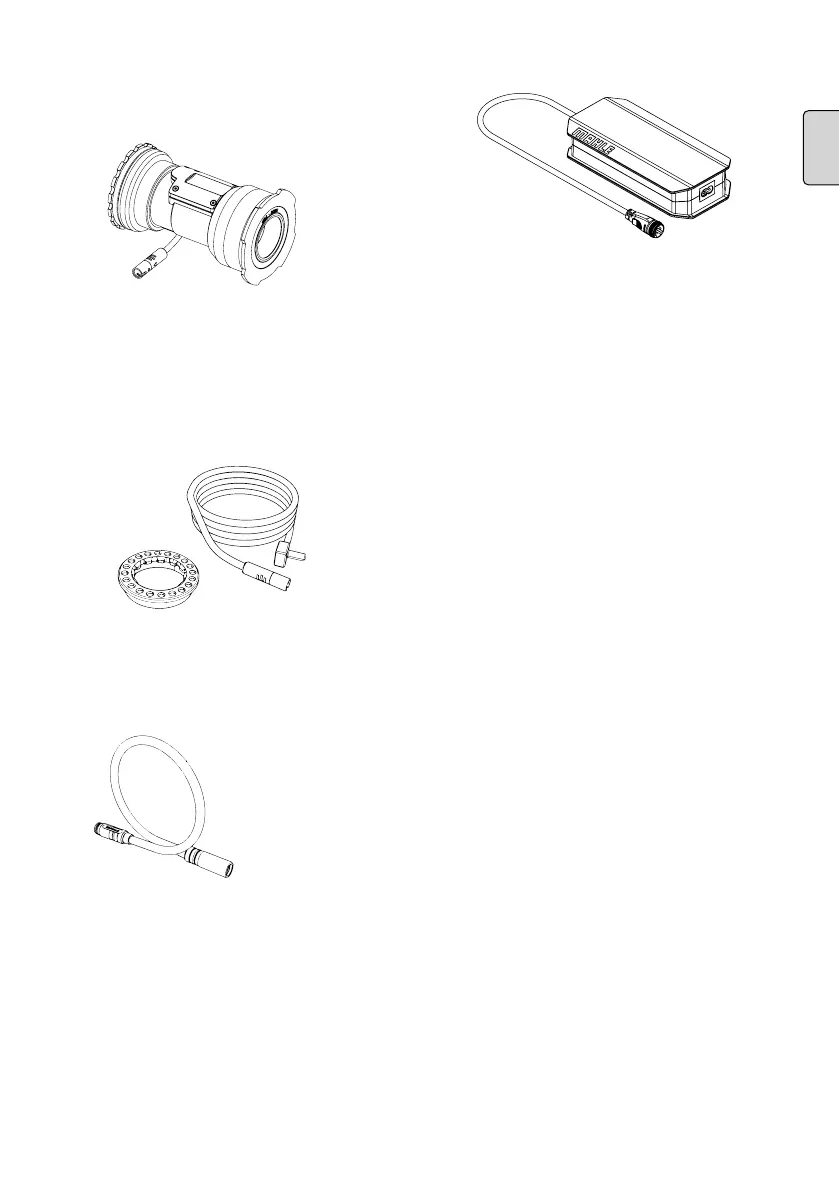

2.1.5. Pedal sensor
The X30 system has two ways of monitoring the cyclist's
pedalling.
2.1.5.1 Torque/cadence sensor
• Torque/cadence reading.
• Designed for BB snap-on housings.
• 4 different models available.
• Compatible with all spindles on the market.
• Mixed press-fit and threaded mechanism.
• Digital interface.
• Weight: 159 g.
2.1.5.2 Cadence sensor
• Magnetic cadence sensor.
• Number of magnets: 20.
• Compatible with Shimano Hiper Glyde cassettes
(12v and 10/11v).
2.1.6. Engine connector X30
• Cable length 300 mm.
• Weight: 44 g.
2.1.7. Active Charger
• Input voltage (AC): 90-246 V 50-60 Hz.
• Rated output voltage/current: 42 V – 3.2A / 4A.
• Recommended temperature of use:
-15 ºC to 35 ºC.
• Measurements: 187 x 90 x 44.4 mm.
• Protection against water ingress: IP20.
• Weight: 690 g.
