Maico MA 42 Service Manual

Service Manual MA 42
D-0125965 Rev. D
10
18/05/2022
2.2 Connections
In order to ensure that the device works properly, it has to be checked and calibrated at
least once every twelve months.

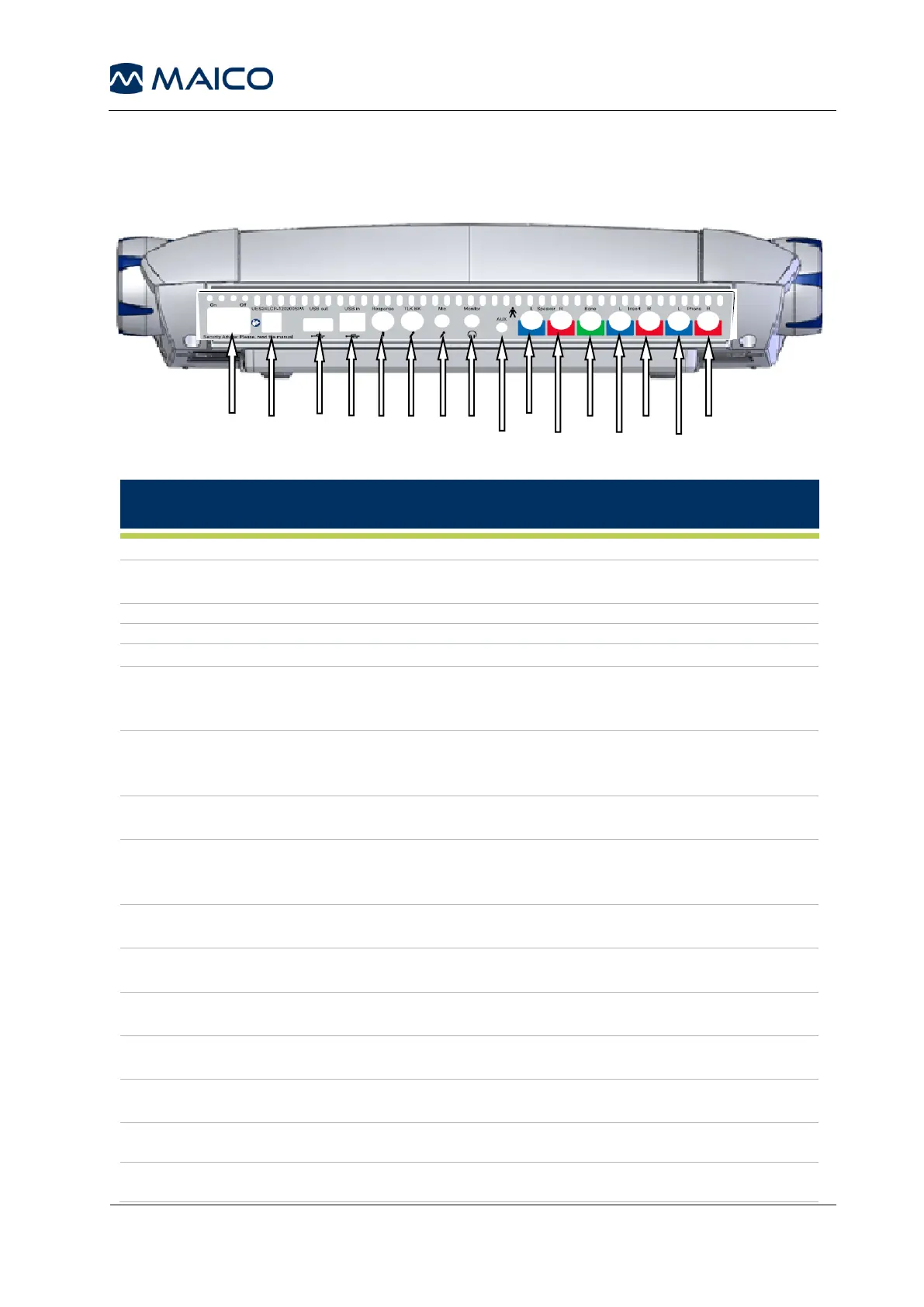

Figure 7
Table 7 Connections on Backside
CONNECTIONS
No
Connection socket
Specification
1
On/Off
Power Switch
2
Power Supply
External Power supply +12V 2A (center +12V)
Model UES24LCP-120200SPA
3
USB 2.0 A Host
4
USB 2.0 B Device
5
Patient Response Switch
2 kΩ 3.3V DC
6
Talk Back Microphone
Input impedance
Min. input level 0 VU
Max. input level 0 VU
3.4 kΩ
212 µVrms 1 kHz
6.6 mVrms 1 kHz
7
Mic (Microphone)
Input impedance
Min. input level 0 VU
Max. input level 0 VU
3.4 kΩ
212 µVrms 1 kHz
6.6 mVrms 1 kHz
8
Monitor Phone
Max voltage level
Load impedance
2.4 Vrms
4 Ω or higher
9
AUX Input
Input impedance
Min. input level 0 VU
Max. input level 0 VU
47 kΩ
16 mVrms 1 kHz
500 mVrms 1 kHz
10
Speaker Left Line
Max. voltage level
Load impedance
3 Vrms
2 kΩ or higher
11
Speaker Right Line
Max. voltage level
Load impedance
3 Vrms
2 kΩ or higher
12
Bone (Bone Conductor)
Max. voltage level
Load impedance
6 Vrms
3.3 Ω or higher
13
Insert Phone Left
Max. voltage level
Load impedance
3 Vrms
10 Ω or higher
14
Insert Phone Right
Max. voltage level
Load impedance
3 Vrms
10 Ω or higher
15
Phone Left (Headphone)
Max. voltage level
Load impedance
3 Vrms
10 Ω or higher
16
Phone Right (Headphone)
Max. voltage level
Load impedance
3 Vrms
10 Ω or higher
11
13
14
16
15
12
9
10
8
7
6
5
4
2
1
3
