Maiman Electronics SF8025, SF8075, SF8150, SF8300
11

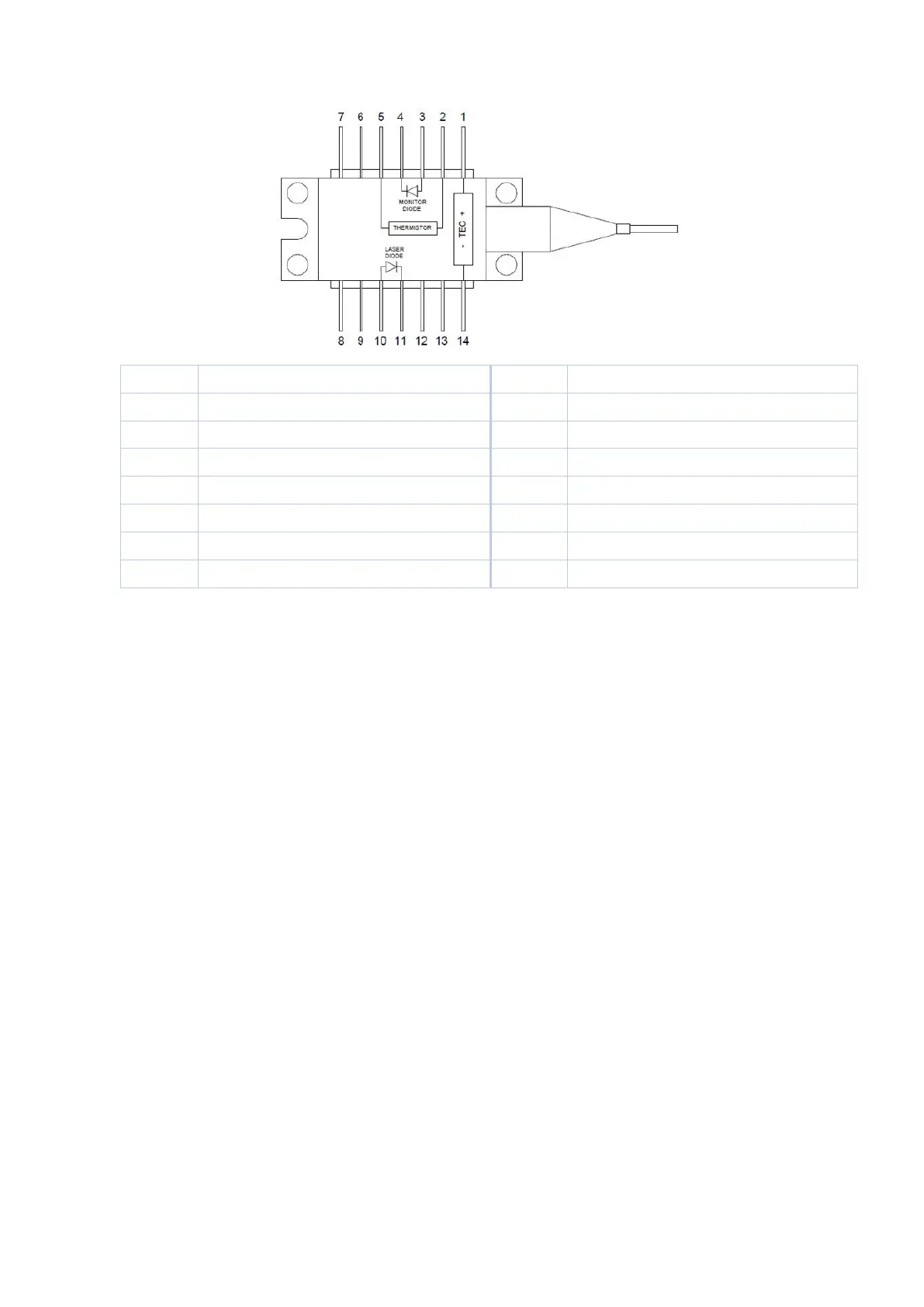

Laser diode pinout
№
Description
№
Description
1
TEC Anode
14
TEC Cathode
2
Thermistor
13
n/c
3
Monitor PD Anode
12
n/c
4
Monitor PD Cathode
11
LD Cathode
5
Thermistor
10
LD Anode
6
n/c
9
n/c
7
n/c
8
n/c
