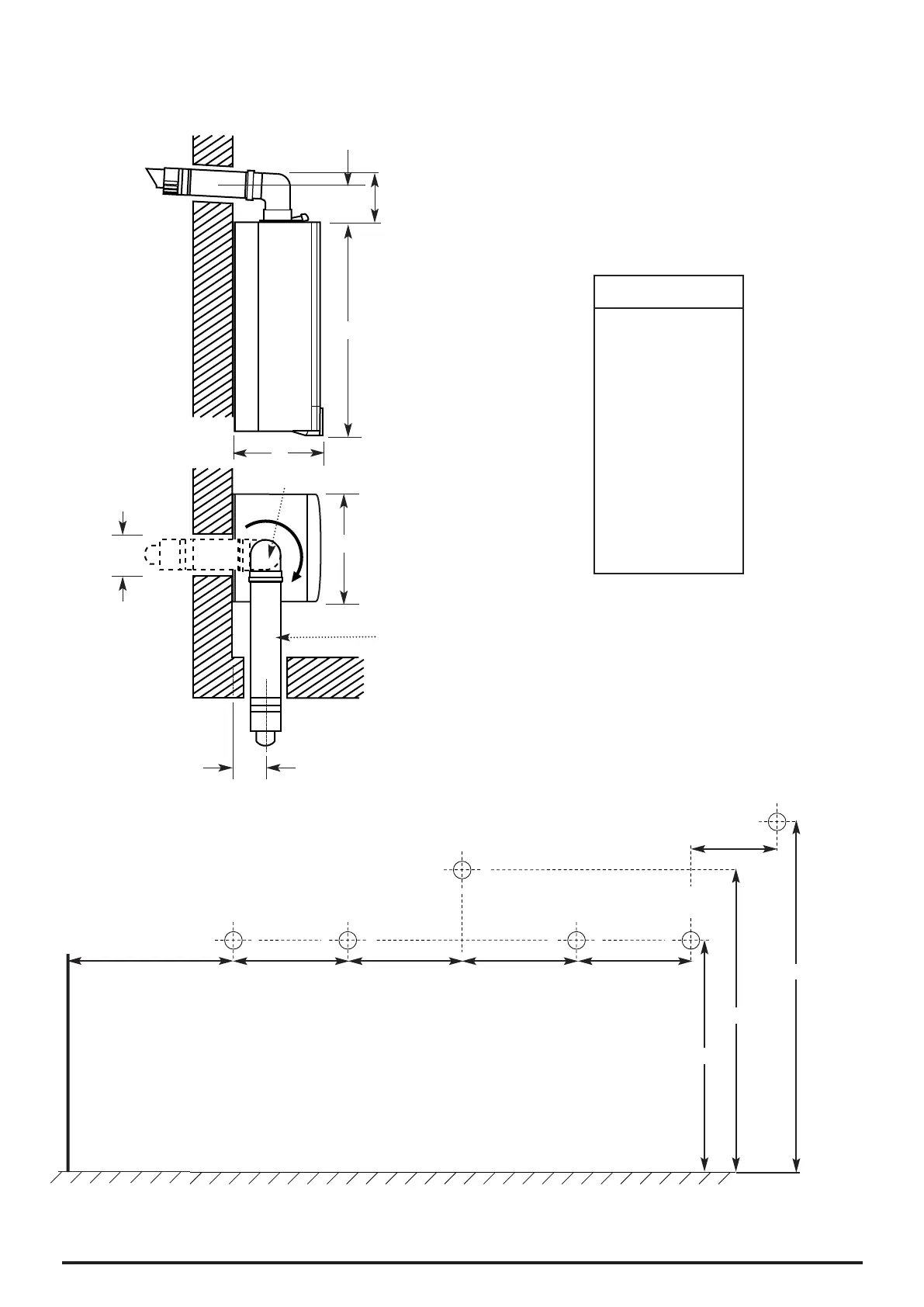

5.0 DIMENSIONS AND FIXINGS
Dimensions
A 780mm
B 345mm
C 450mm
D 116mm Ø Min.
E 185mm
F 190mm
G 131mm
65mm 65mm 65mm 65mm
View from under the appliance
Gas Inlet
Heating
Flow
Domestic Hot
Water Outlet
Cold Water
Inlet
Heating
Return
130mm
165.7mm
95mm
Left Hand Side
of Boiler
Fig. 7
360° Orientation
Tube Ø 100mm
D
C
B
A
E
G
F
Fig. 6
68mm
265mm
Condensate
Drain
