Main System 24 Eco - Dimensions and Fixing Details; Boiler Dimensions and Wall Plate Layout; Fixing Requirements

11

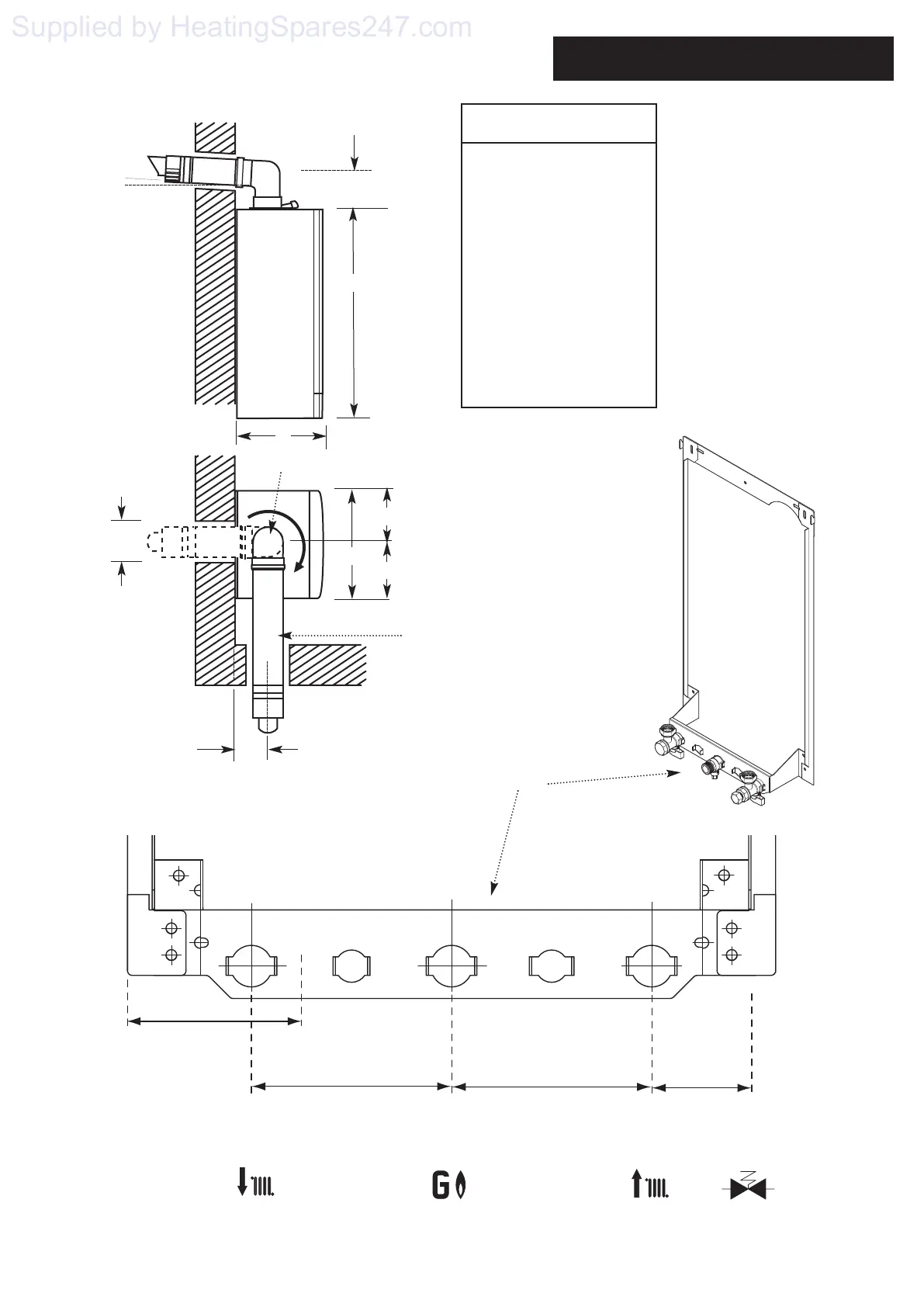

5.0 Dimensions and Fixings
© Baxi Heating UK Ltd 2011
Tap Rail
360° Orientation
Tube Ø 100mm
D
C
B
A
G
F
H
H
Heating
Return
(22mm)
Heating
Flow
(22mm)
Pressure Relief
Valve
(15mm)
Gas
Inlet
(22mm)
130 mm
130 mm
65 mm
Condensate
Drain
127 mm
Dimensions
A 780mm
B 345mm
C 450mm
D 116mm Ø Min.
F 145mm
G 132mm
210mm (80/125)
H 225mm
At Least 1.5
o
