8
360 DVS Series Direct Vent Fireplaces
10006326
CFM123_360DVS3_dims_RV2
REAR VENT CONFIGURATION
8/10/00
rev. 8-23-02 rjs
ROD
ROW
ROD
ROH
ROH
ROH
ROD
360DVSL
360DVS/3/L/R
360DVS3
360DVSR
CFM124_360DVS3_TV2
TOP VENT CONFIGURATION
8/10/00
rev. 8-23-02 rjs
ROD
ROD
ROH
ROW
ROH
ROH
ROD
360DVSL
360DVS/3/L/R
360DVS3
360DVSR

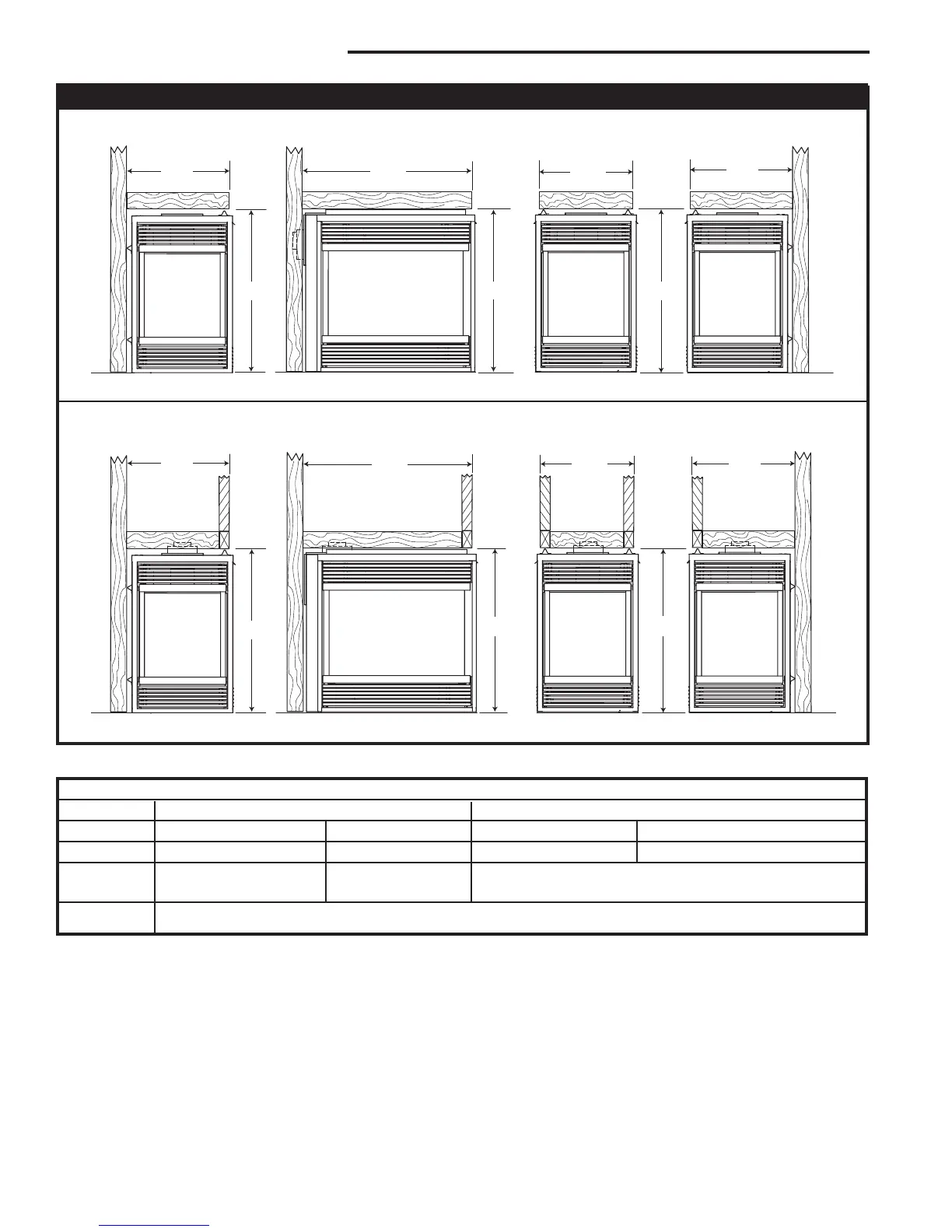

Framing Dimensions - 360DVS3 / 360DVSL / 360DVSR
Rear Vent Conration
Top Vent Conguration
CFM123
CFM124
Framing Dimensions
Ref. Rear Vent Conguration Top Vent Conguration
Model 360DVS3 360DVSL/R 360DVS3 360DVSL/R
ROD (See Note 1) (See Note 2) (See Note 1) ( See Note 2)
ROH 38⁵⁄₈” (981 mm) Not to be framed until unit is set in place, due
to 3¹⁄₈” (79 mm) allowance for ue collar
ROW 40⁵⁄₈” (1032 mm) minus one time (1x) nishing material thickness to be even with face of unit.
Fig. 2b Fireplace framing dimensions—360DVS3/ 360DVSL/ 360DVSR
NOTE 1: 24” (610 mm) minus two times (2x) nishing material thickness to be even with face of unit.
NOTE 2: 24³⁄₄” (629 mm) minus one time (1x) nishing material thickness to be even with face of unit.
