Majestic 360DVS2 - Framing Dimensions

7
360DVS Series Direct Vent Fireplaces
10006326
ROH
ROD
ROW
CFM121
360DVS2 REAR VENT CONFIGURATION
8/10/00
Framing Dimensions - 360DVS2
CFM122
360DVS2 - TOP VENT CONFIGURATION
8/10/00
ROD
ROH
ROW
Rear Vent
Conguration
Top Vent
Conguration
CFM121
CFM122

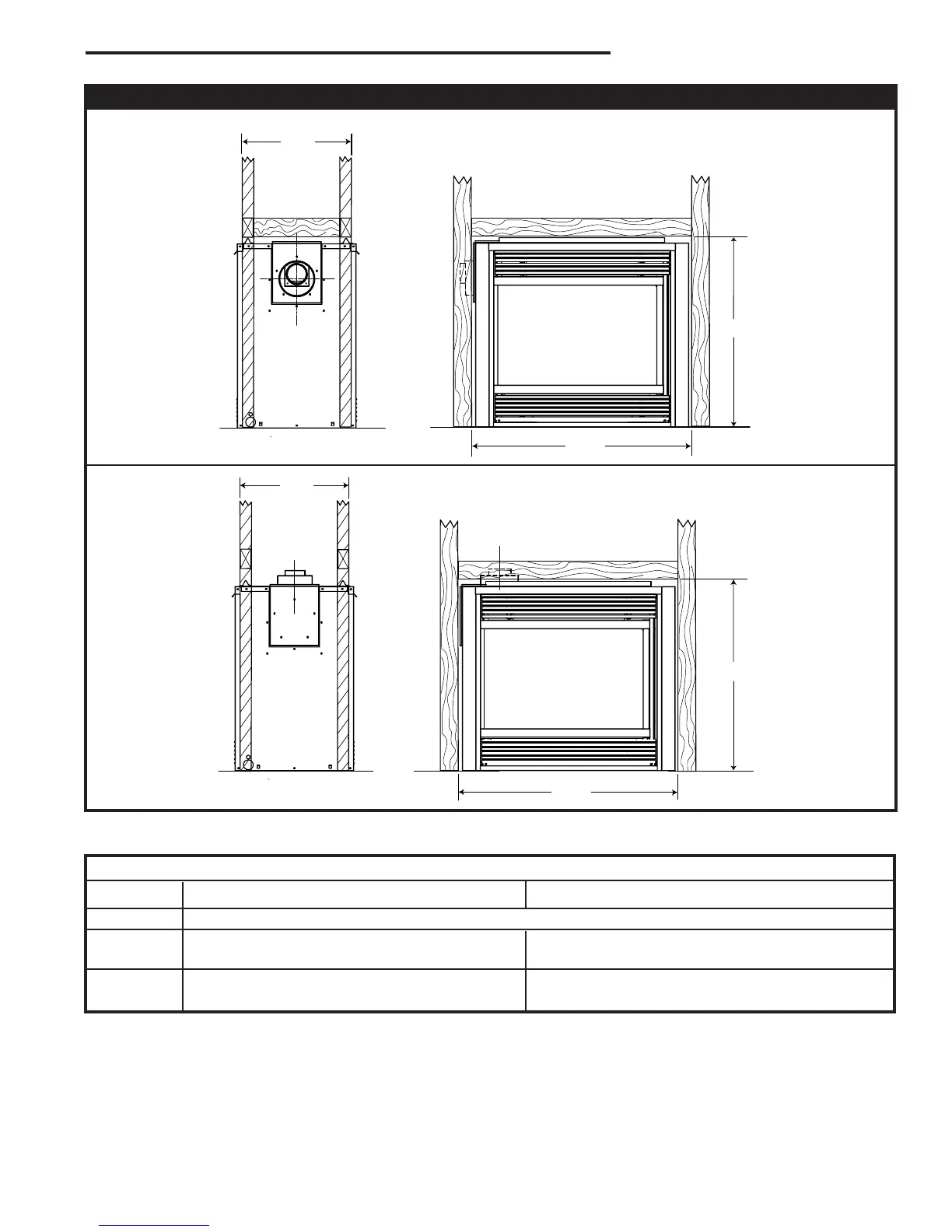

Framing Dimensions
Ref. Rear Vent Conguration Top Vent Conguration
ROD 24” (610 mm) minus two times nishing material thickness to be even with face of unit.
ROH 38⁵⁄₈” (981 mm) Not to be framed until unit is set in place,
due to 3¹⁄₈” (79 mm) allowance for ue collar
ROW Not to be framed until unit is set in place 43³⁄₄” (1111 mm)
due to 3¹⁄₈” (79 mm) allowance for ue collar
Fig. 2a Fireplace framing dimensions—360DVS2
