5. ELECTRICAL SPECIFICATIONS
Accuracies are specified in the way:
± (…% of reading +…digits) at 23°C ± 5°C,below 80% RH.
5.1. LOOP RESISTANCE
Range Resolution Test Time Full Scale Accuracy
20Ω 0.01Ω 25A/20ms ± 2% of F.S ± 5d
200Ω 0.1Ω 2.3A/20ms ± 2% of F.S ± 5%
2000Ω 1Ω 15mA/20ms ± 2% of F.S ± 5d
5.2. PROSPECTIVE SHORT CURRENT
Range Resolution Test Time Full Scale Accuracy
200A 0.1A 2.3A/20ms ± 2% of F.S ± 5d
2KA 1A 25A/20ms ± 2% of F.S ± 5d
20KA 10A 25A/20ms ± 2% of F.S ± 5d
Range Full Scale Accuracy
50~255V ± 2% of F.S ± 5d
5.3. AC VOLTAGE (50HZ)

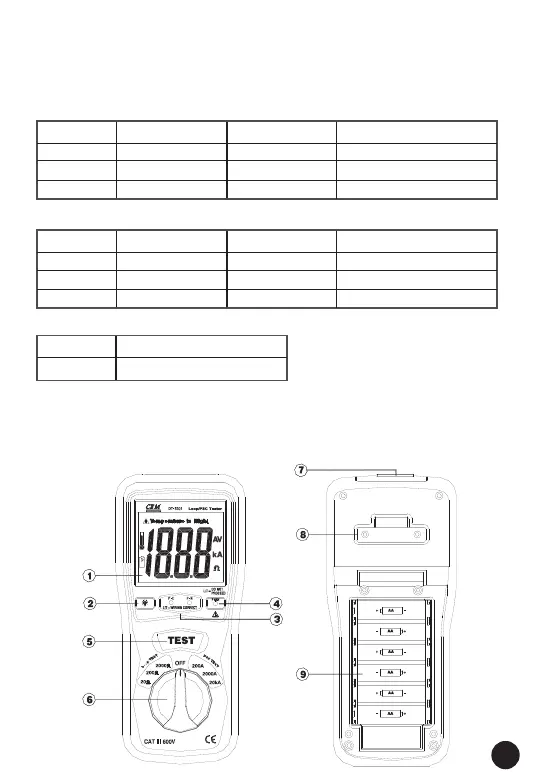

6. PARTS & CONTROLS
1. Digital Display
2. Backlight Button
3. P-E,P-N,Lights
4. P-N REVERSE Light
5. Test Button
6. Rotary Function switch
7. POWER Jack
8. Pothook
9. Battery Cover
