Major MR150 - Transforming Side to Rear Discharge

10

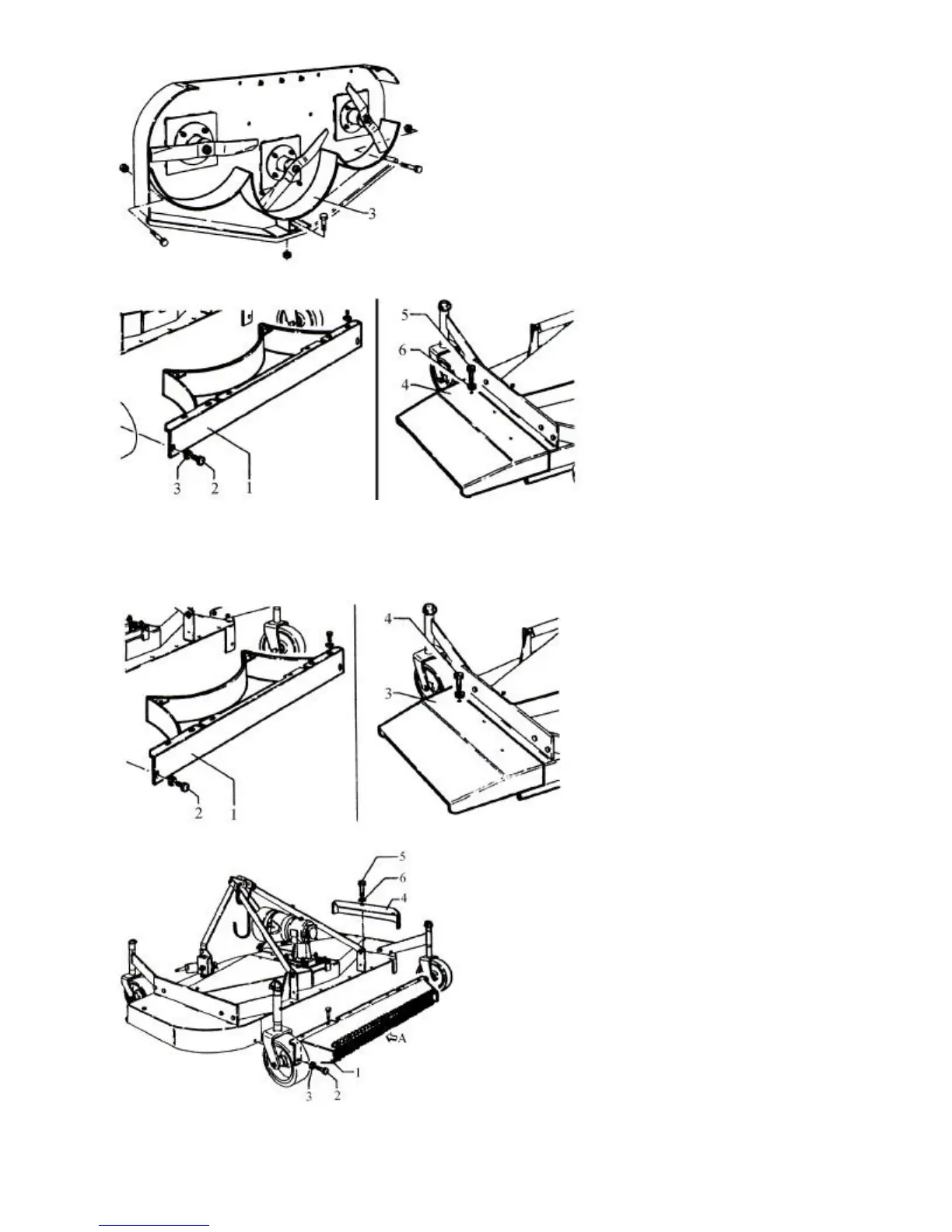

Transforming the Side Discharge Mower into the Rear Discharge Version
S
tep 2
:
Dismount the internal
conveyor "3".
Fig. 5.4
Step 3
:
Mount the rearguard "1"
using the screws "2" and the
washers "3".
Mount the side conveyor "4"
using the screws "5" and the
washers "6".
Fig. 5.5
Step 1
:
Unscrew screws "2" and
dismount the rearguard "1";
unscrew screws "4" to
dismount the side guard "3".
Fig. 5.6
Step 2
:
• - Mount the rear conveyor "1" using
the screws "2"(M10x20UN15739) and
the washers "3" (0 10).
• - Mount the side guard "4" using the
screws "5" (MI Ox 20 UN1 5739) and the
washers "6" (0 10).
WARNING: Make sure all the guard chains "A "
are mounted in the correct position. Fig. 5.7
