Major MR150 - Assembling the Mower - Side Discharge Unit; Transforming Rear to Side Discharge

9

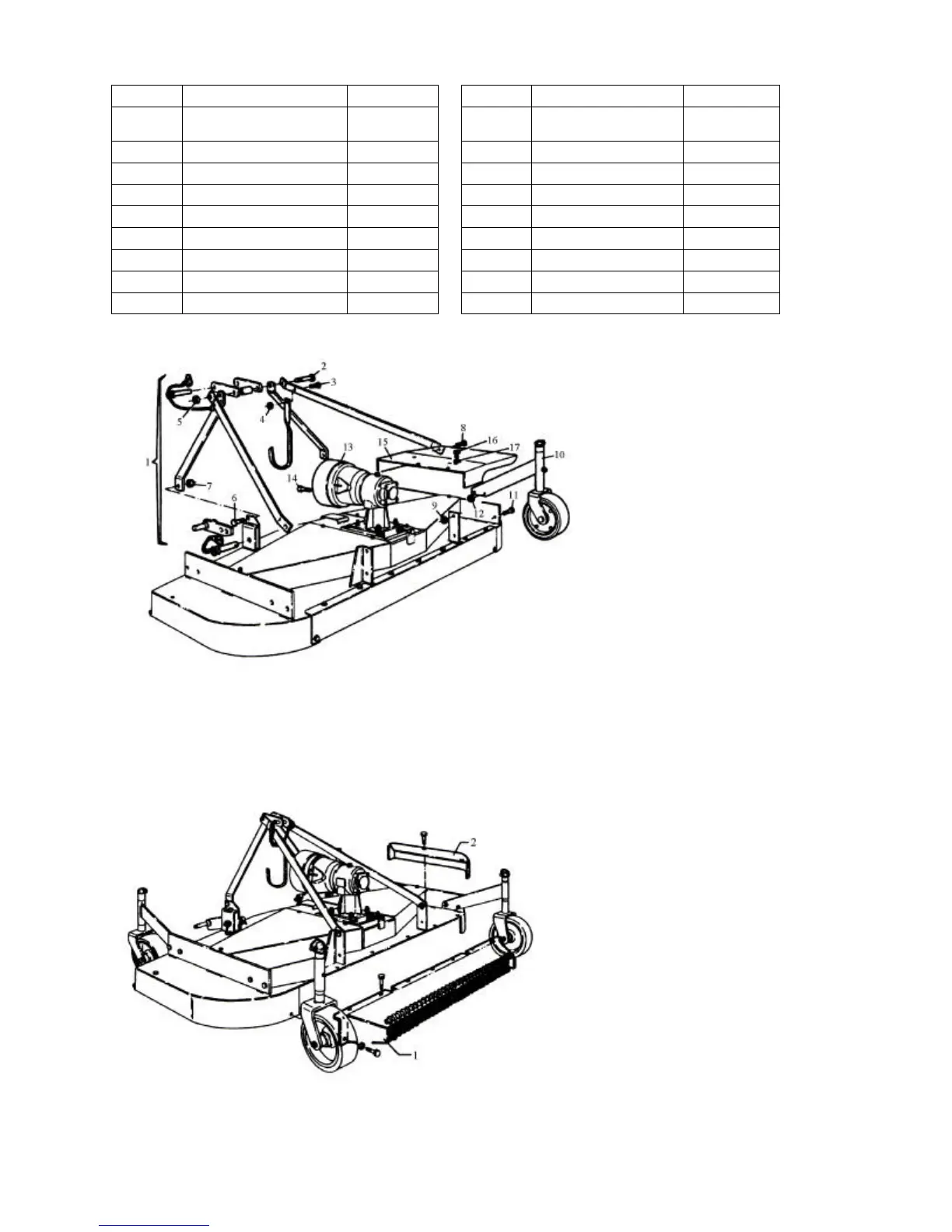

Assembling the Mower – With Side Discharge Unit
Ref No Description Ref No Description
1
Three point
attachment 10 Wheel with support
2 M12 x 20 Screw (UNI 5737) 11 M12 x 40 Screw (UNI 5739)
3 M10 x 30 Screw (UNI 5739) 12 M12 Nut - Auto Lock
4 M10 Nut (UNI 5588) 13 Guard
5 M12 Nut - Auto Lock 14 M8 x 20 Screw (UNI 5739)
6 M12 x 35 Screw (UNI 5739) 15 Conveyor
7 M12 Nut - Auto Lock 16 M10 x 20 Screw (UNI 5739)
8 M12 x 35 Screw (UNI 5739) 17 Washer M10
9 M12 Nut - Auto Lock
Transforming the Rear Discharge Mower into the Side Discharge Version (MR150 & MR180 only)
•
Mount the three-point
attachment "1 " on the
machine base using the
relative screws, nuts and pins.
• Mount the guard "13" using the
screws "14".
• Mount the four wheels "10"
using the screws "11 " and the
nuts "12".
• Mount the conveyor "15" using
the screws "16" and the
washers "17". Fig. 5.2
Step 1:
Dismount the rear conveyor "1";
Dismount the guard "2".
Fig. 5.3
Fig. 5.2
Fig.
5.3
