Panel controls, Inputs and Outputs

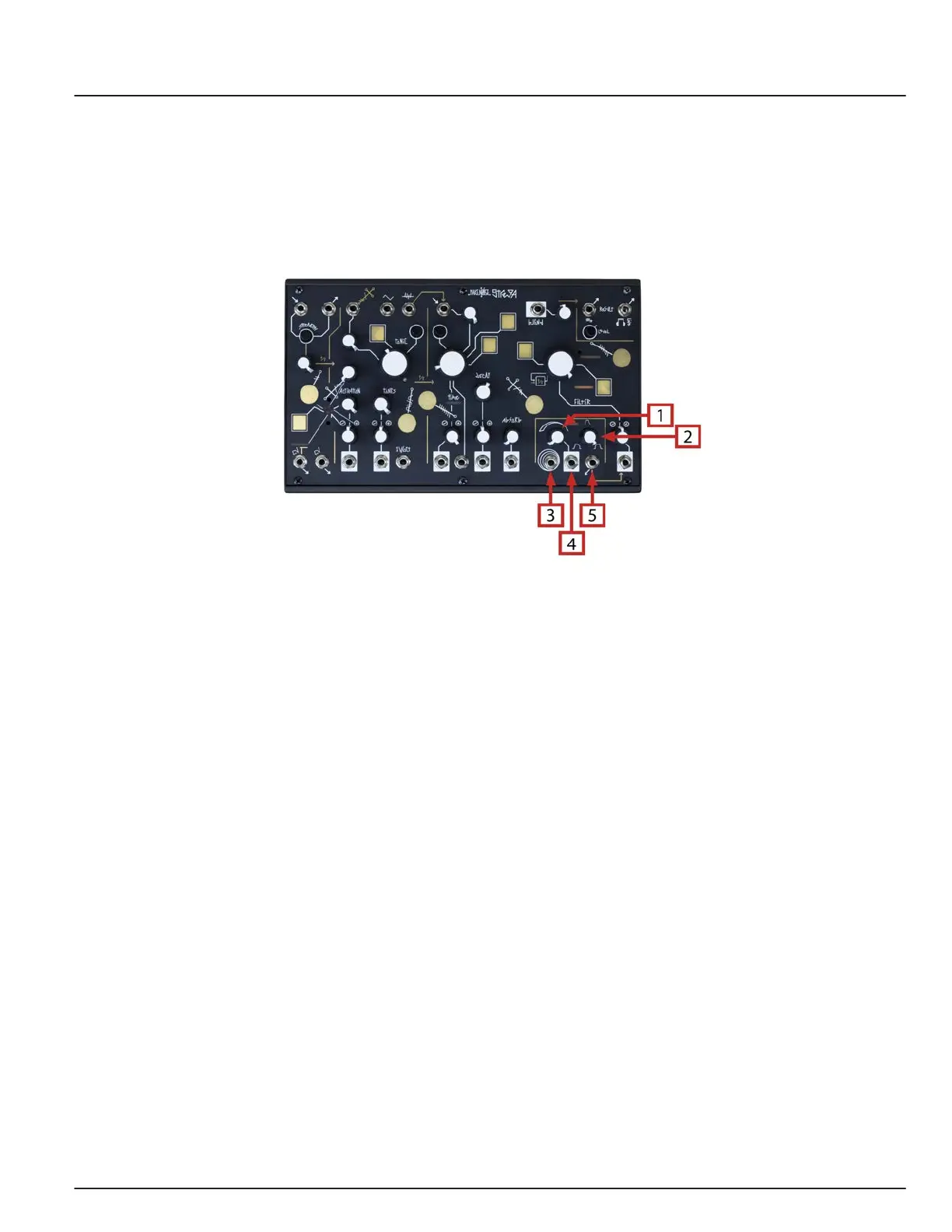

Agitation Generator:
1. Speed: the rate at which agitation will occur. The resulting signal will rise from 0VDC to 8VDC and then fall back to
0VDC at a rate of about 1 minute to audio rate (around 1khz). With nothing patched to the Begin and End Input,
infinite agitation will occur.
2. Angle: sets the angle of the agitation function for faster rise or fall. Leaning the agitation to one side or the other
produces different results in your experiment.
3. Begin and End In: control input to Begin and also to End Agitation. Expects Gate signal of 0VDC to 10VDC
magnitude. When Gate signal is High, Agitation begins and level is sustained as long as Gate is High. When Gate is
Low, Agitation stops until Gate goes High again. Normalled to Gate High.
4. Speed CV In: attenuated control input for the Agitation Function Speed. Range +/-5VDC.
5. Agitation Function Out: DC Voltage for agitation purposes. Range 0VDC to 6VDC.
