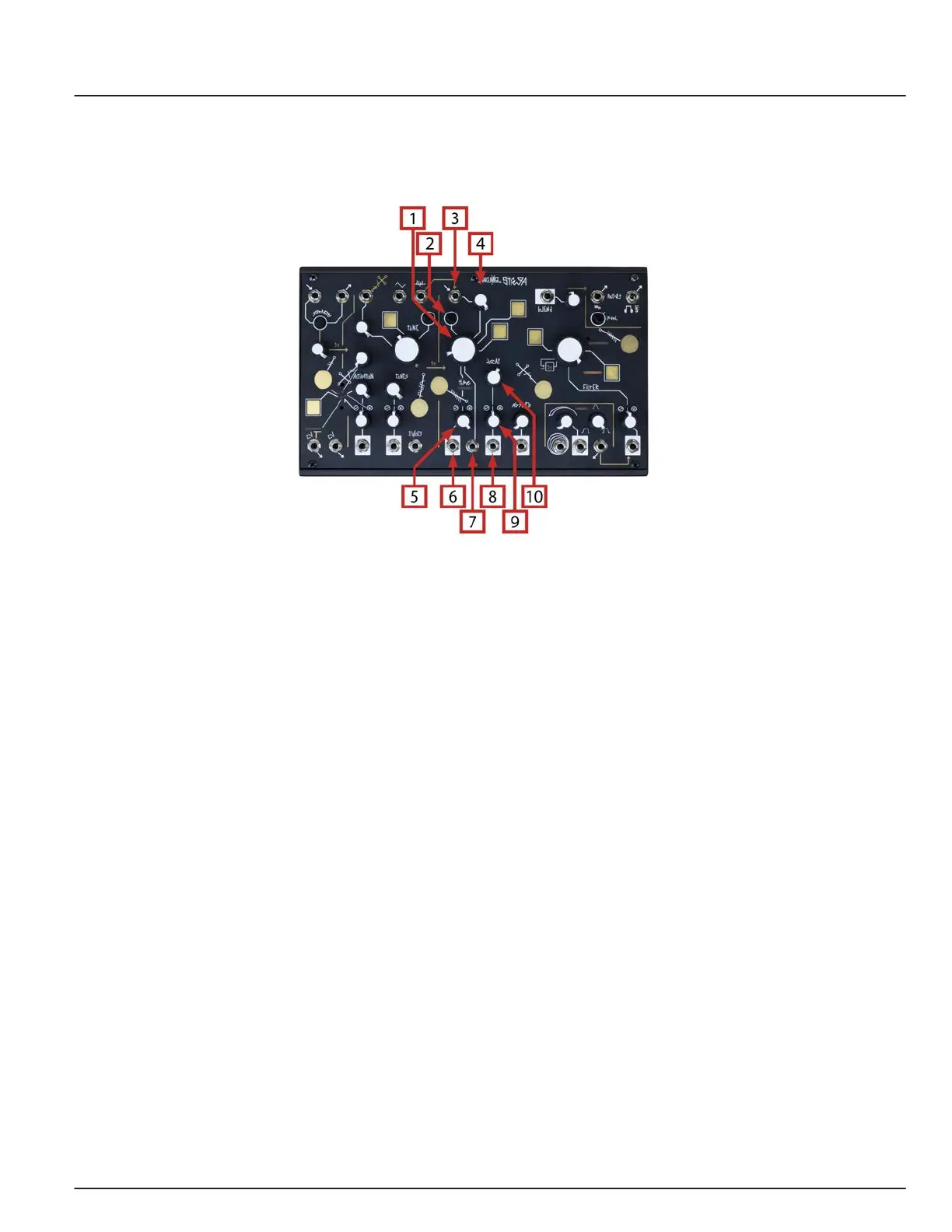

Panel controls, Inputs and Outputs
Time/ Filter Experiment: in these circuits the external substances are combined with the Strega Tones and
1. Time Coarse: wide range adjustment for the rate at which the external Substances and Strega Tones are dripped
into the Filter.
2. Time Fine: short range precision adjustment for the rate at which the external Substances and Strega Tones are
dripped into the Filter.
3. Time Modulation Input: attenuated AC coupled modulation input for Time. Normalled to Strega Tones Sub
Harmonics Output. Typical input 10Vpp.
4. Time Modulation Combo Control: with nothing patched to Time Modulation Input, sets the amount of modulation
from Strega Tones Sub Harmonics. With signal patched to Time Modulation Input, sets the depth of modulation.
5. Time CV Attenuvertor: bi-polar attenuator for the Time CV In.
6. Time CV In: attenuated Direct Coupled, bi-polar CV Input for Time, range +/- 10VDC.
7. Time Unity CV In: full scale control input for Time, range +/- 10VDC. Be careful.
8. Decay CV In: Direct Coupled, bi-polar CV Input for Time, range +/- 10VDC.
9. Decay CV Attenuvertor: bi-polar attenuator for the Time CV In.
10. Decay: sets the iterations of Time/ Filter experiment. Ranges from a handful to infinity.
