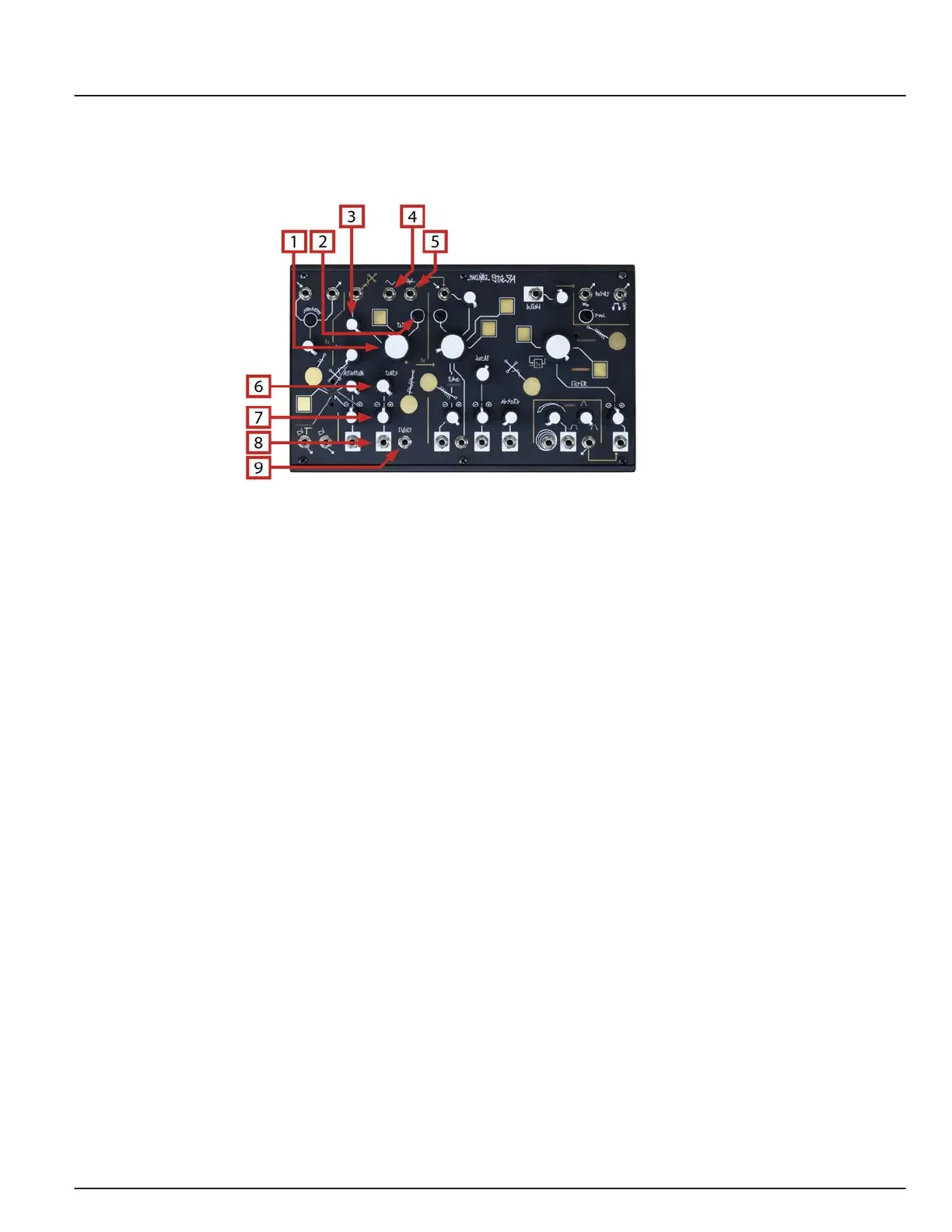

Panel controls, Inputs and Outputs
Strega Tones: these circuits select the substances to activate and add to the Time/ Filter experiment.
1. Tonic Coarse Control: wide range adjustment for frequency of Strega Tones, 20hz to 10khz.
2. Tonic Fine Control: short range precision adjustment of frequency of Strega Tones.
Tonic Modulation Interference Input: AC coupled modulation input for Tonic
3. Tonic Modulation Interference Combo Control: with nothing patched to Tonic Modulation Interference Input, sets
the amount of Interference from Time/ Filter experiment. With signal patched to Tonic Modulation Interference Input,
sets the depth of modulation.
4. Strega Tones Core Output: triangle shaped audio substance output here, 10V pp range.
5. Strega Tones Sub Harmonics Output: sub harmonics not used in the Time/ Filter experiment are output here, range
10Vpp.
6. Tones Control: selects Strega tones to be added to Time/ Filter experiment.
7. Tones CV Attenuvertor: bi-polar attenuator for the Tones CV In.
8. Tones CV In: Direct Coupled, bi-polar CV Input for Tones, range +/- 10VDC.
9. Tonic 1V/ Octave: classic bi-polar pitch control for Tonic, direct coupled, optimal range +/-5VDC.
