Makeblock mBot - Slide Number 7

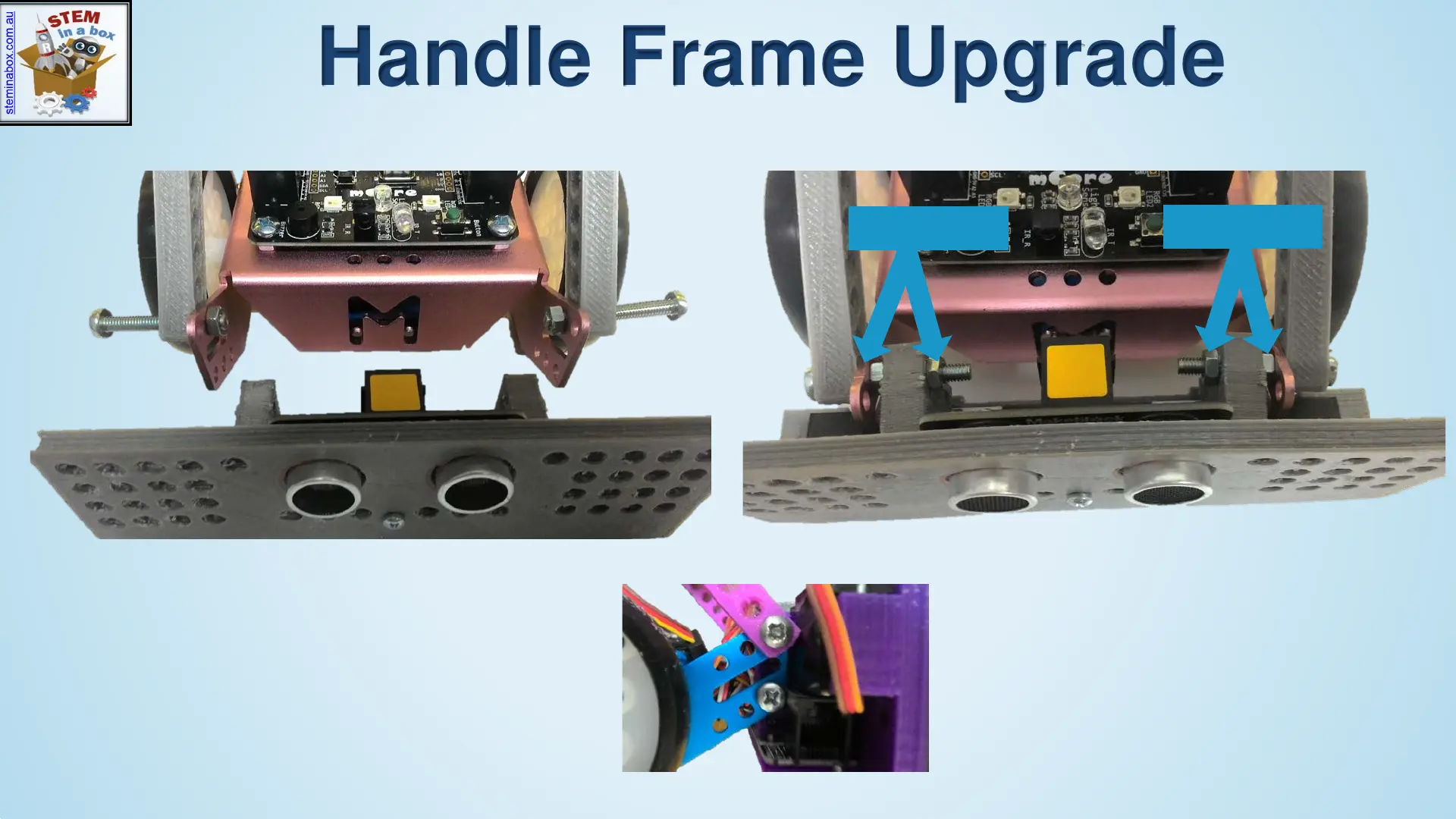

Handle Frame Upgrade
Use 2 x M4X30mm Bolts and
4 x M4 Nuts to secure handle
and bumper to chassis
(Above & Above Right)
M4X20mm
Bolt
M4X20mm
Bolt
2xM4 Nuts
2xM4 Nuts
Use 2 x M4X16mm Bolts to
secure bumper to chassis to
ensure no moving (Left)
