Position the guide bar (6). Make sure that the pin (7) of the chain
tightener is in the hole on the guide bar.
Turn the chain adjusting screw (4) to the left (counterclockwise)
until the pin (5) is at the left stop.

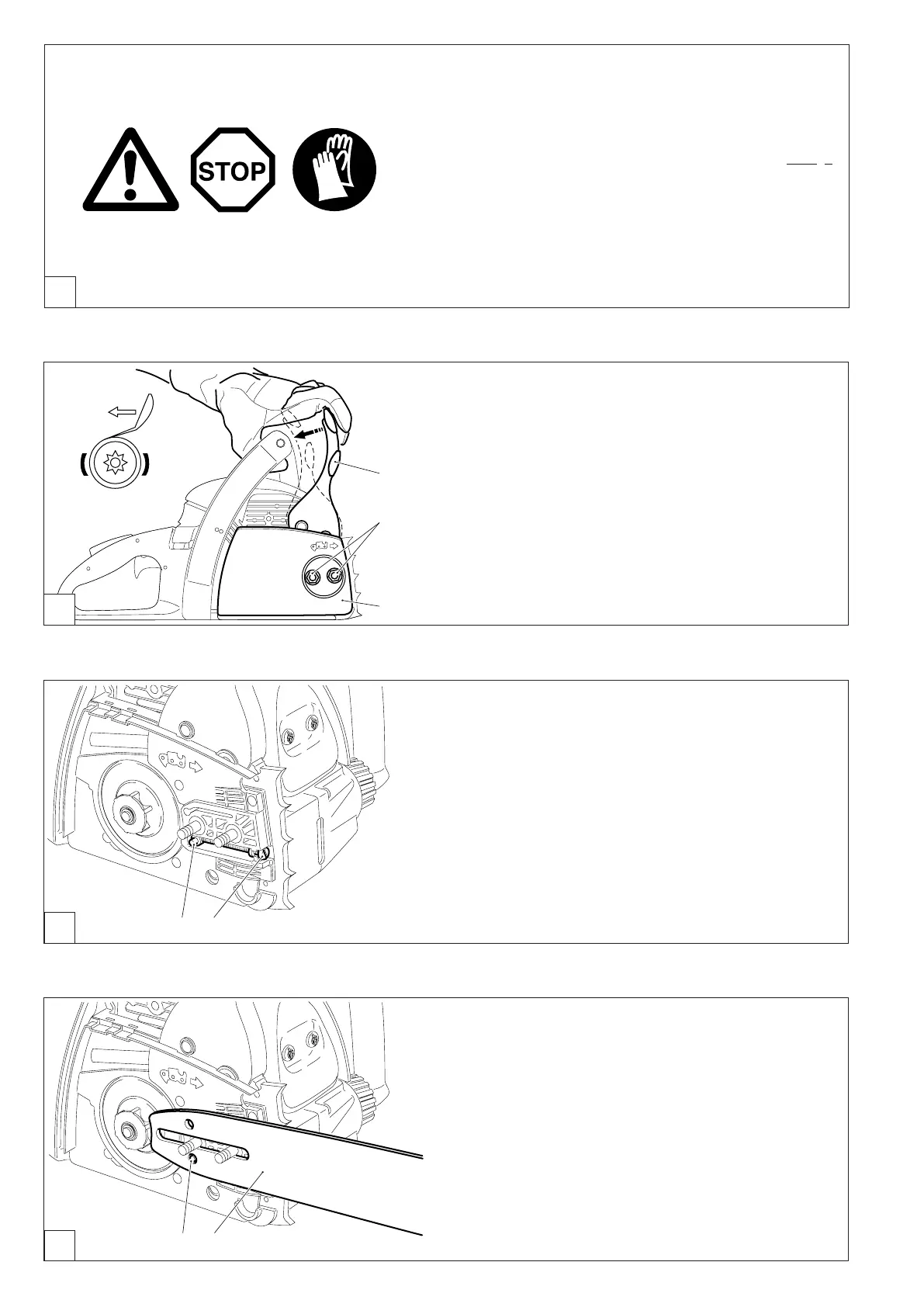

Mounting the guide bar and saw chain
Use the universal wrench delivered with the chain saw for the
following work.
Put the chain saw on a stable surface and carry out the following
steps for mounting the guide bar and chain:
Release the chain brake by pulling the hand guard (1) in direc-
tion of arrow.
Unscrew retaining nuts (2).
Pull off the sprocket guard (3).
C
D
PUTTING INTO OPERATION
CAUTION:
Before doing any work on the guide bar or chain, always
switch off the engine and pull the plug cap off the spark
plug (see „Replacing the spark plug“). Always wear pro-
tective gloves!
CAUTION:
Start the chain saw only after having assembled it com-
pletely and inspected!
67
B
A

Makita DCS4610 Specifications

General

Engine displacement	45.1 cm³
Bar length	40 cm (16")
Fuel tank capacity	0.47 L
Chain pitch	0.325 inches
Chain gauge	0.050 inches
