Makita DCS4610 User Manual

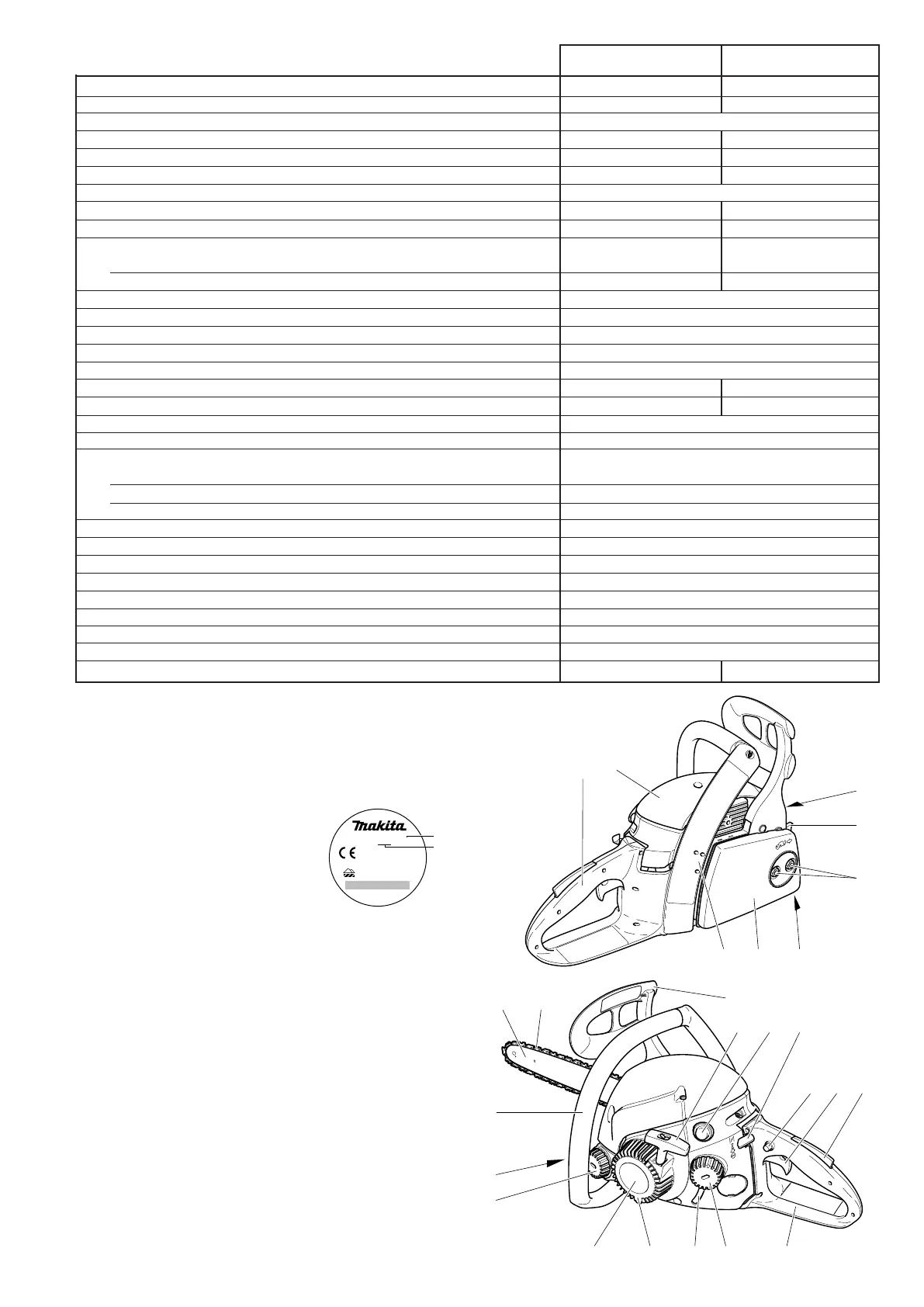

9
Stroke volume cm
3
33 45,1
Bore mm 37 43
Stroke mm 31
Max. power at speed kW / 1/min 1,3 / 9.000 1,7 / 9.000
Max. torque at speed Nm / 1/min 1,7 / 6.500 2,4 / 6.500
Idling speed / Max. engine speed with guide bar and chain 1/min 2.800 / 12.200 2.600 / 12.600
Coupling speed 1/min 3.900
Sound pressure level L
pA av
at the workplace per ISO 7182
1)
dB (A) 98,5 99,9
Sound power level L
wA av
per ISO 9207
1)
dB (A) 105 109,6
Vibration acceleration a
h av
per ISO 7505
1)
- Tubular handle m/s
2
5 6,1
- Rear handle m/s
2
7 9,1
Carburetor (diaphragm carburetor) Type ZAMA
Ignition system Type PHELON
Spark plug Type NGK BPMR 7A
Electrode gap mm 0,5
or spark plug Type
Fuel consumption at max. load per ISO 7293 kg/h 0,71 0,94
Specicconsumptionatmax.loadperISO7293 g/kWh 550  580
Fuel tank capacity l 0,37
Chain oil tank capacity I 0,25
Mixture ratio (fuel/two-stroke oil)
- when using MAKITA oil 50 : 1
- when using Aspen Alkalyt (two-stroke fuel) 50 : 1 (2%)
- when using other oils 40 : 1 (quality grade: JASO FC or ISO EGD)
Chain brake
engages manually or in case of kickback
Chain speed
2)
m/s 17,1
Sprocket pitch inch 3/8
Number of teeth Z 6
Chain type - see the Extract from the spare-parts list 092
Pitch / Driving element strength inch 3/8 / .050
Guide bar, length of a cut cm 35, 40
Guide-bar type - see the Extract from the spare-parts list
Weight (fuel tank empty, without chain and guide bar) kg 4,7 4,75
1)
Figures derived in equal part from idle, full-load, and top-speed operation.
2)
At max. power
21
23
22
24 25
3
4
1110 12
13
14 15
9
5
21
67
1617181920
8
Denomination of components
1 Handle
2
Filter cover
3
Mufer
4
Spike bar (Toothed stop)
5
Retaining nut
6
Chain catch
7 Sprocket guard
8 Adjusting screws for carburetor
9 Hand guard (release for chain brake)
10 Starter grip
11 Fuel pump (Primer)
12 Combination Start/Stop (I/O) switch, choke
13 Stop knob for halfway throttle
14 Throttle lever
15
Safety locking button
16 Rear hand guard
17
Fuel tank cap
18 Fuel tankll-levelwindow
19 Fan housing with starting assembly
20
Identicationplate
21
Oil tank cap
22 Oiltankll-levelwindow
23 Tubular handle
24 Guide bar
25
Chain
Identication plate (20)
Indicate when ordering spare parts
Serial number
Year of manufacture
Technical data
DCS34 DCS4610
Hamburg, Germany
DCS34
2007 123456
036.100.060

Makita DCS4610 Specifications

General

Engine displacement	45.1 cm³
Bar length	40 cm (16")
Fuel tank capacity	0.47 L
Chain pitch	0.325 inches
Chain gauge	0.050 inches
