6 5 4

5 7

Put on the guide bar (7). Make sure that the pin (5) of the chain

tensioner engages in the hole in the guide bar.

Remove the plastic transport cover (*) and dispose of prop-

erly.

Turn chain tensioning screw (4) to the left (counter-clockwise)

until the pin (5) of the chain tensioner is underneath the threaded

pin (6).

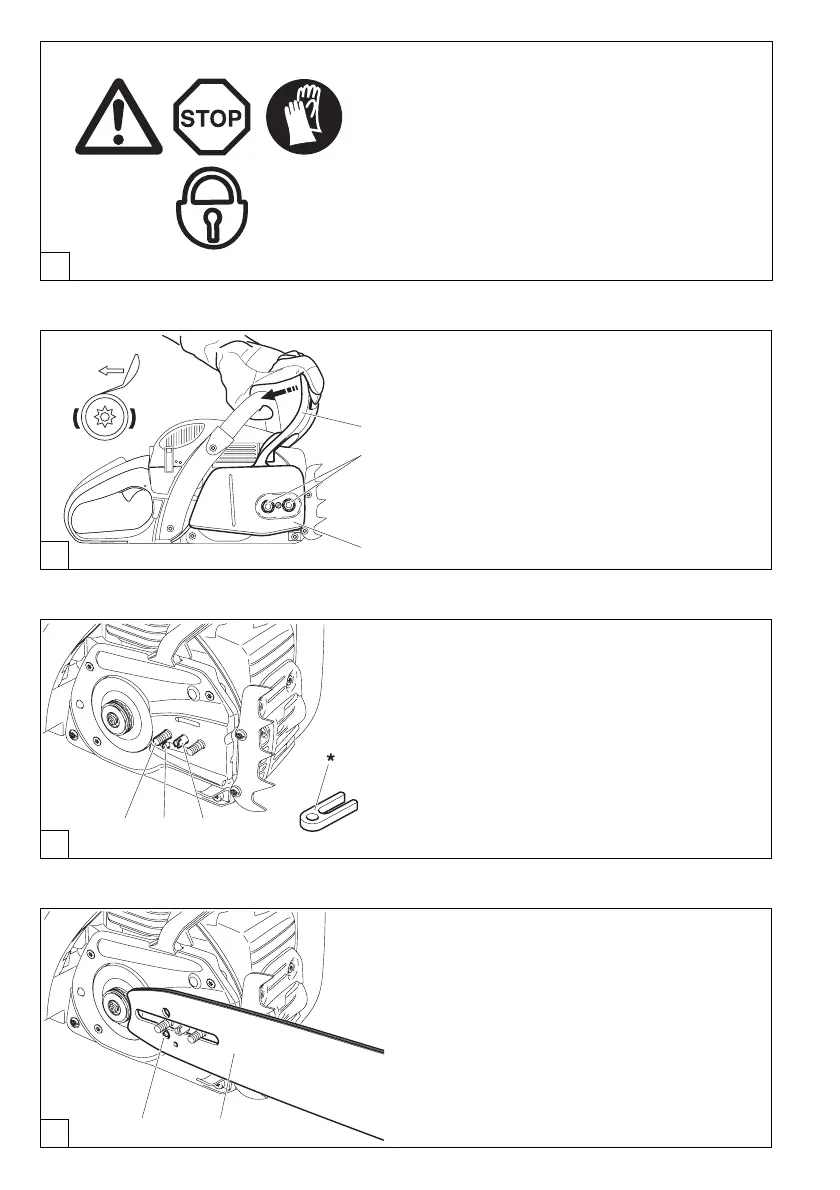

Mounting the guide bar and saw chain

Use the universal wrench delivered with the chain saw for the

following work.

Put the chain saw on a stable surface and carry out the following

steps for mounting the guide bar and saw chain:

Release the chain brake by pulling the hand guard (1) in direc-

tion of arrow.

Unscrew retaining nuts (2).

Pull off the sprocket guard (3).

PUTTING INTO OPERATION

CAUTION:

Before doing any work on the guide bar or chain, always

switch off the engine and pull the plug cap off the spark

plug (see „Replacing the spark plug“). Always wear protec-

tive gloves!

CAUTION:

Start the chain saw only after having assembled it com-

pletely and inspected.
