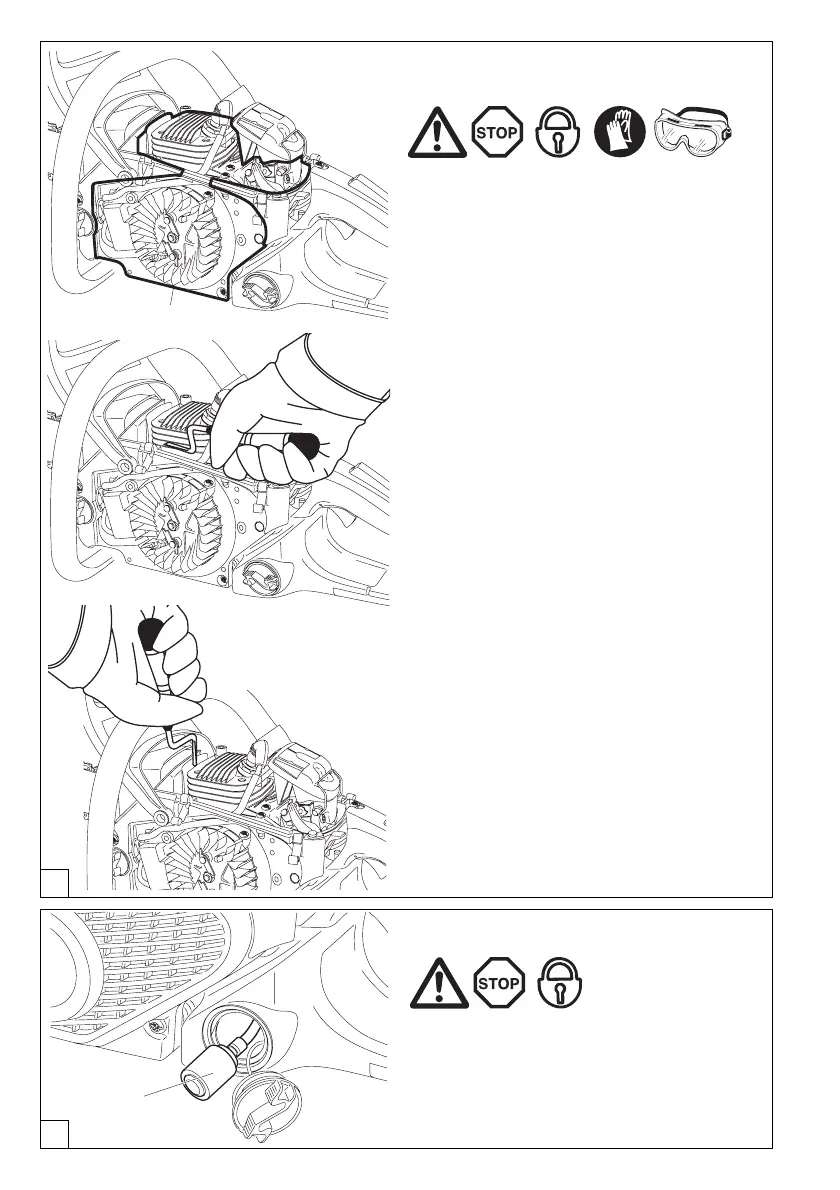

Cleaning the cylinder area
After prolonged use, dirt and sawdust can build up on the cylin-
der and cause the engine to overheat. The cylinder Þ n cleaner
helps remove deposits between the cylinder Þ ns and between
the cylinder and the mounting plate.
Remove cover.
Remove the fan housing.
CAUTION: To prevent eye injury, always wear eye protection
when cleaning the Þ lter with compressed air!
The entire area (14) can now be brushed clean or cleaned with
compressed air.
With the cyinder Þ n cleaner, clean out the area between the
cylinder Þ ns and between the cylinder and the mounting pla-
te.
Do not use force. Be careful not to damage the short-circuit
wire and the ignition wire.
C
Replacing the suction head
The felt Þ lter (15) of the suction head can become clogged.
It is recommended to replace the suction head once every
three months in order to ensure unimpeded fuel ß ow to the
carburetor.
To remove the suction head for replacement, pull it out through
the tank Þ ller neck using a piece of wire bent at one end to
form a hook.
