Makita DCS5030 User Manual

9
Stroke volume cm
3
45.6 50,0
Bore mm 43 45
Stroke mm 31.4 31.44
Max. power at speed kW / 1/min 2.6 / 10,000 2.8 / 10,000
Max. torque at speed Nm / 1/min 2,8 / 7,000 3,1 / 7,000
Idling speed / max. engine speed with bar and chain 1/min 2,500 / 13,800 2,500 / 13,800
Clutch engagement speed 1/min 3,900 3,900
Sound pressure level at the workplace L
pA, av
per ISO 22868
1) 3)
dB(A) 102.1 / K
pA
= 2.5 102.4 / K
pA
= 2.5
Sound power level L
WA, Fl + Ra
per ISO 22868
2) 3)
dB(A) 110.8 / K
WA
= 2.5 111.3 / K
WA
= 2.5
Vibration acceleration a
h,w eq
per ISO 22867
1) 3)
- Tubular handle m/s
2
4,1 / K = 2 5,2 / K = 2
- Rear handle m/s
2
3,6 / K = 2 3,7 / K = 2
Carburetor Carburetor (membrane, choke valve carburetor) Type ZAMA
Ignition system Type electronic
Spark plug Type NGK BPMR 7A
Electrode gap mm 0.5
or spark plug Type BOSCH WSR 6F
Fuel consumption at max. load per ISO 7293 kg/h 1.2 1.3
SpeciÞ c consumption at max. load per ISO 7293 g/kWh 450 450
Fuel tank capacity l 0.47
Chain oil tank capacity I 0.27
Mixture ratio (fuel/two-stroke oil)
- when using MAKITA oil 50 : 1
- when using Aspen Alkylat (two-stroke fuel) 50 : 1 (2%)
- when using other oils 50 : 1 (quality grade: JASO FC or ISO EGD)
Chain brake engages manually or in case of kickback
Chain speed (at top-speed) m/s .325“= 25,6 3/8“= 29,6
Sprocket pitch inch .325 oder 3/8
Number of teeth Z 7
Chain type see the Extract from the spare-parts list
Pitch / gauge inch .325 / 0,050, 0,058 or 3/8 / 0,058
Guide bar, length of a cut cm 33 / 38 / 45 / 53
Guide-bar type see the Extract from the spare-parts list
Weight (fuel tank empty, without chain, guide bar and accessories) kg
4) 4)
1)
Figures derived in equal part from idling, full-load and top-speed.
2)
Figures derived in equal part from full-load and top-speed.
3)
Uncertainty (K=).
4)
DCS4630 = 5,3, DCS5030 = 5,3, DCS5032 = 5,5, EA5000P= 5,4, EA5001P = 5,6.

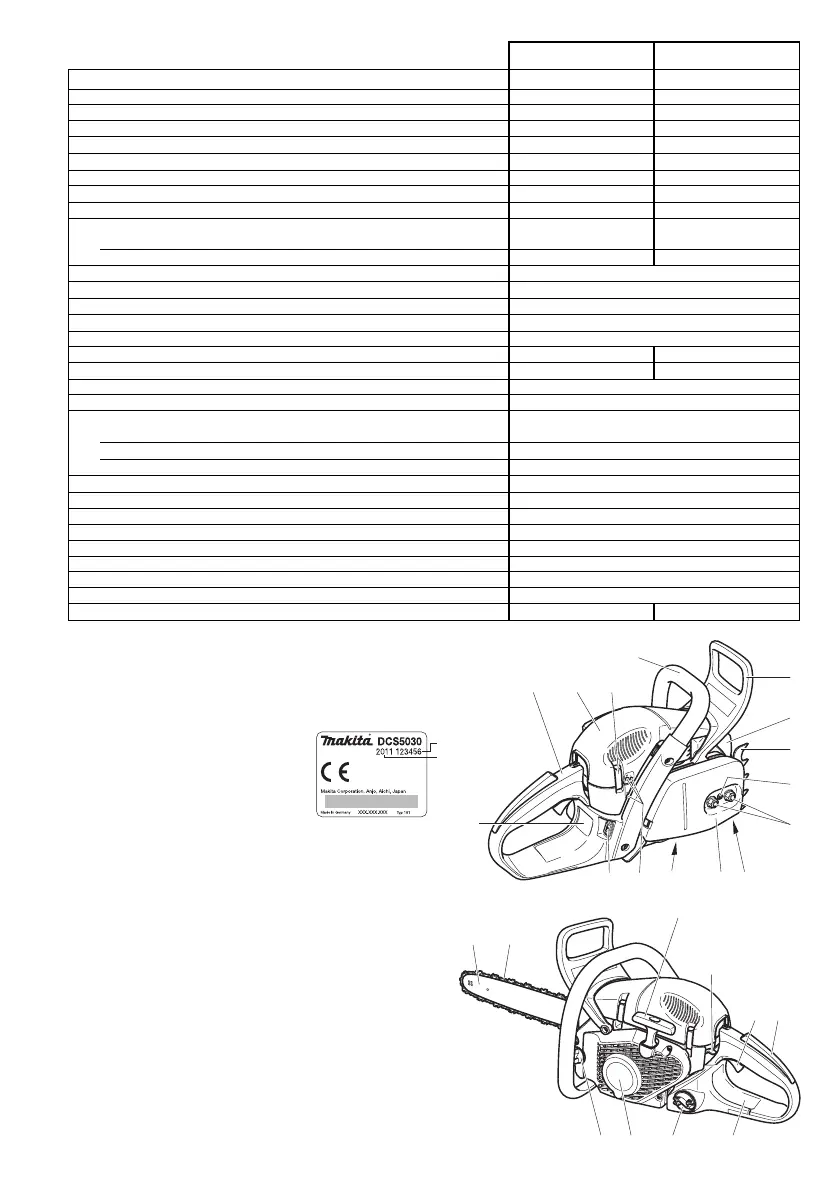

Technical data
DCS4630 DCS5030, 5032, EA5000P, 5001P
2
24 25
16
17
18 19
3
4
1
6
7
15
5
8
9
111213
20212223
1014
Denomination of components
1 Handle
2 Cover
3 Cover clasp
4 Tubular handle
5 Hand guard (release for chain brake)
6 Mufß er
7 Spike bar
8 Chain tensioning screw
9 Retaining nuts
10 Chain catch
11 Sprocket guard
12 Adjusting screw for oil pump (bottom side)
13 Adjusting screws for carburetor
14 Switch for grip heating (only on “DCS5032, EA5001P” model saws)
15 IdentiÞ cation plate
16 Starter grip
17 Combination switch (Choke / Start / Stop)
18 Throttle lever
19 Safety locking button
20 Rear hand guard
21 Fuel tank cap
22 Fan housing with starting assembly
23 Oil tank cap
24 Guide bar
25 Chain (Blade)
IdentiÞ cation plate (15)
Indicate when ordering spare parts
Serial number
Year of
manufacture
