Makita DTD152 Technical Information

July 2015

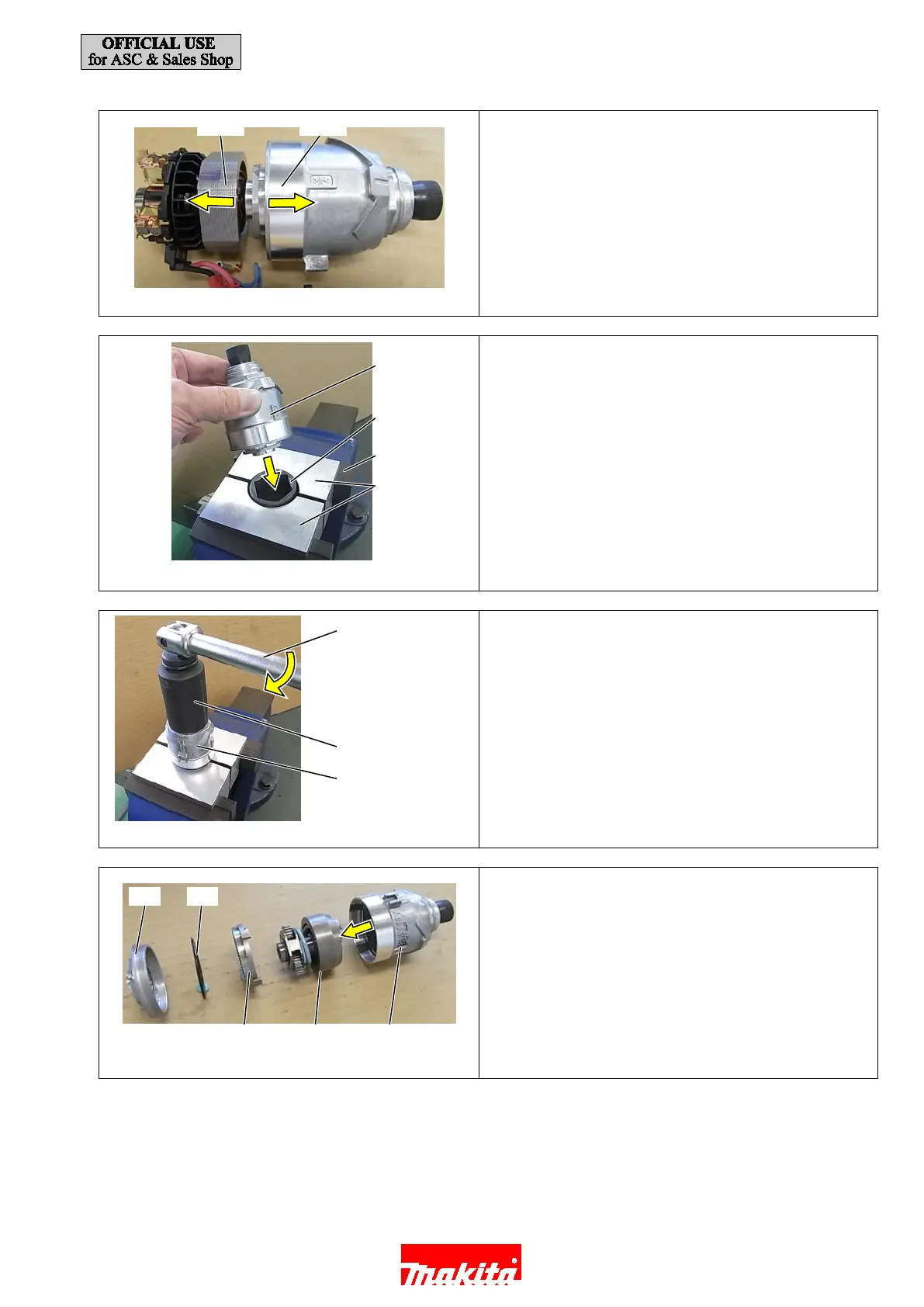

4. Remove Hammer case section (8-28) from Motor section
(29-33).
Figure 6
5. Fix Socket 32-50 with two 1R040 and Vise.
6. Set Hammer case section (8-28) to Socket 32-50.
Figure 7
7. Turn clockwise Hammer case section (8-28) with Socket
30-78 and Extension bar to loosen it.
Figure 8
8. Hammer case complete can be disassembled as shown in
the figure on the left:
- Bearing box complete (28)
- O ring 40 (27)
- Internal gear 51 (26)
- Hammer section (17-25)
- Hammer case complete section (8-16)
Figure 9
Extension bar
Socket 30-78
(8-28)
Socket 32-50
1R040
(8-28)
Vise
(17-25)
(8-16)
(26)
(27)
(28)
(8-28)
(29-33)
8 / 27

Makita DTD152 Specifications

General

Power source	Battery
Battery voltage	18 V
Battery level indicator	Yes
Product color	Black, Blue
Idle speed (max)	3500 RPM
Screw diameter (max)	16 mm
Maximum torque (hard applications)	165 N⋅m
Vibration emission	10.5 m/s²

Weight and Dimensions

Depth	137 mm
Width	79 mm
Height	238 mm
Weight	1500 g
