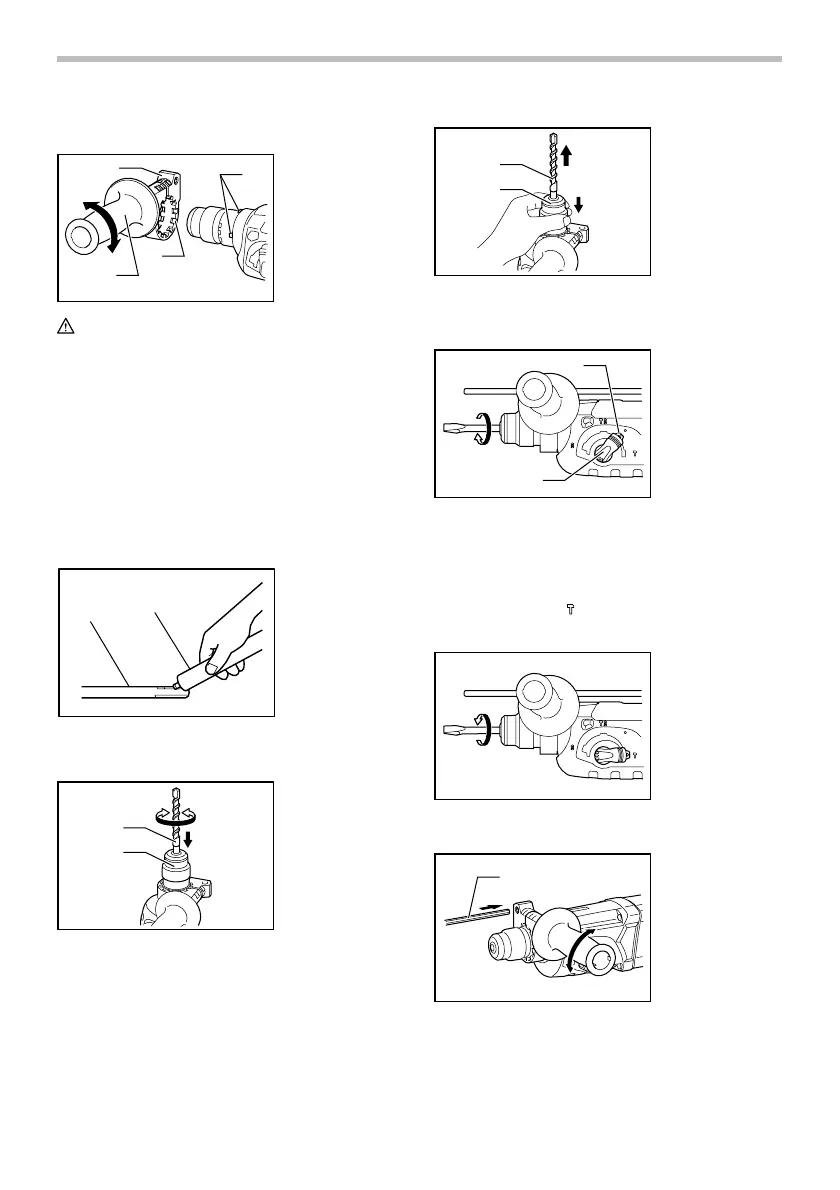

Side grip (auxiliary handle)
1
2
3
4
5
6
007949
CAUTION:
•
Always use the side grip to ensure operating safety.
Install the side grip so that the teeth on the grip fit in
between the protrusions on the tool barrel. Then tighten
the grip by turning clockwise at the desired position. It
may be swung 360° so as to be secured at any position.
Bit grease
Coat the bit shank head beforehand with a small amount
of bit grease (about 0.5 - 1 g).
This chuck lubrication assures smooth action and longer
service life.
Installing or removing the bit
2
1
003150
Clean the bit shank and apply bit grease before installing
the bit.
1
2
007938
Insert the bit into the tool. Turn the bit and push it in until it
engages.
After installing, always make sure that the bit is securely
held in place by trying to pull it out.
To remove the bit, pull the chuck cover down all the way
and pull the bit out.
1
2
007939
Bit angle (when chipping, scaling or
demolishing)
1
2
007950
The bit can be secured at the desired angle. To change
the bit angle, depress the lock button and rotate the
action mode changing knob to the O symbol. Turn the bit
to the desired angle.
Depress the lock button and rotate the action mode
changing knob to the
symbol. Then make sure that the
bit is securely held in place by turning it slightly.
007951
Depth gauge
1
007952
The depth gauge is convenient for drilling holes of
uniform depth. Loosen the side grip and insert the depth
gauge into the hole in the side grip. Adjust the depth
gauge to the desired depth and tighten the side grip.
1. Depth gauge
1. Lock button
2. Action mode
changing knob
1. Bit
2. Chuck cover
1. Bit
2. Chuck cover
1. Bit shank
2. Bit grease
1. Grip base
2. Side grip
3. Loosen
4. Tighten
5. Teeth
6. Protrusion
