P 2 / 20
Repair
[1] NECESSARY REPAIRING TOOLS
CAUTION: Disconnect the machine from the power source for safety before repair/maintenance!
1R003 Retaining Ring S Pliers ST-2N
1R022 Bearing Plate
Removing/ installing Ring springs
Removing/ installing Ring springs (for modular use with No.1R003)
Removing Helical gear 38
Removing Armature1R045 Gear extractor, large
1R167 T-Type Hex Wrench 3-70 Removing Barrel cover complete
1R346 Center Attachment for 1R045 Removing Armature (for modular use with 1R045)
1R212 Tip for Retaining Ring Pliers
1R230 1/4" Hex Shank Bit for M6
1R214 Taper Sleeve
Removing/ installing Barrel complete
1R213 Cylinder Extractor Removing Cylinder
Replacing Ball bearings
Installing Fluoride ring
1R269 Bearing Extractor
1R350 Ring 60 Removing Cylinder
Code No. Description Use for
22 Tool holder
About 5g on the inside surface that contacts Impact bolt
Outside surface that contacts Spacer and Chuck ring
25 Fluoride ring 25 on impact bolt
Two elliptic holes that contact Tool retainers
24 O ring 20 on impact bolt
26 X ring 18 on impact bolt
Whole portion
Item No. Grease typeDescription Portion to lubricate
32 O ring 22 on striker
37 O ring 21 on piston
38 O ring 22 on piston
About 5g on the inside surface that contacts Piston and
Impact bolt
46 Cylinder 28.5

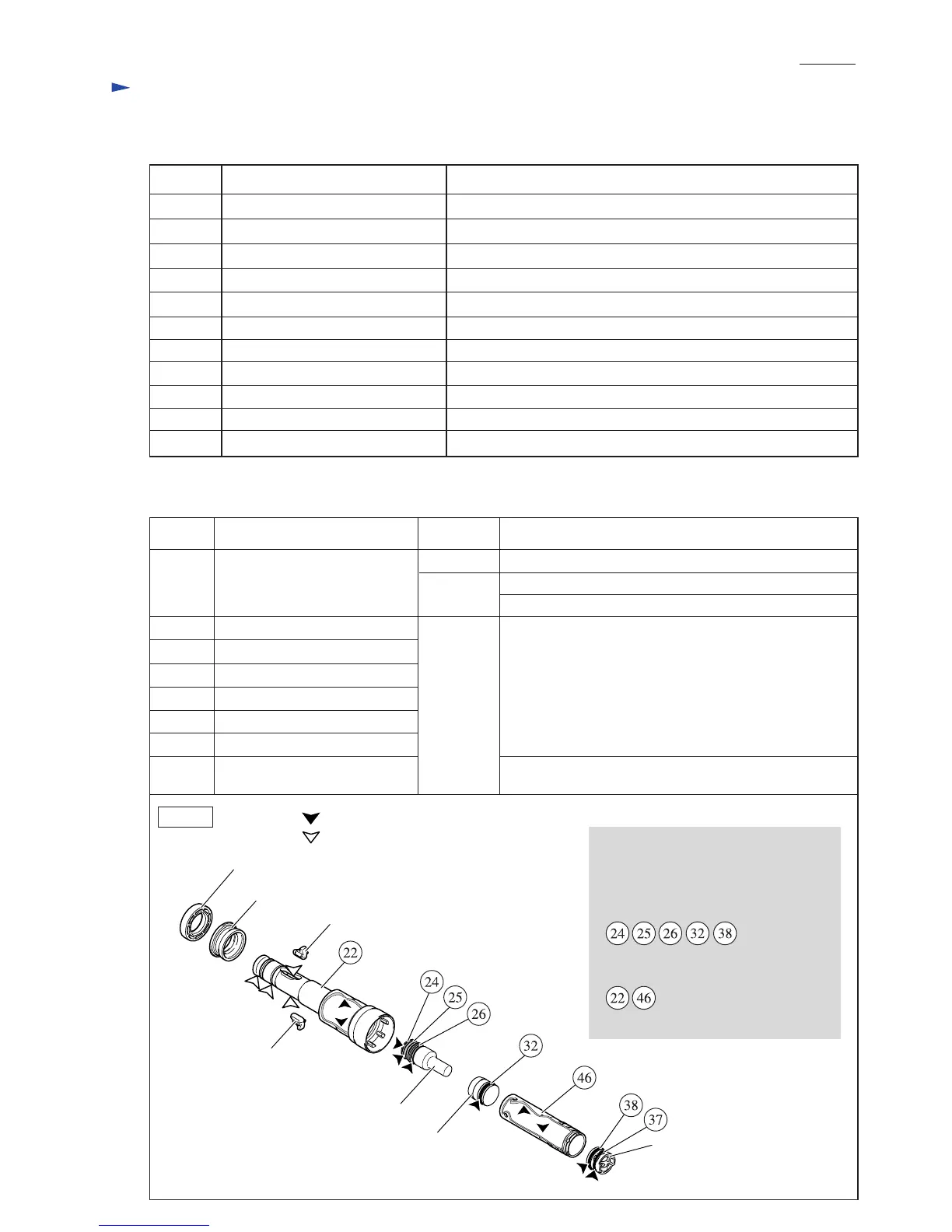

Fig. 1A
Impact bolt
Tool retainer
Chuck ring
Spacer
Tool retainer
Striker
Piston
[2] LUBRICATION
Apply the following grease to the portions designated with the triangle to protect parts and product from unusual abrasion.
:Makita grease R.No.00
R.No.00
R.No.00
:Makita grease N.No.2
Note:
For long tool life, at the same time when
Carbon brushes are replaced,
it is recommended;
1) to replace the following parts:
N.No.2
(See "[4] Maintenance Program".)
2) to lubricate the following parts with
Makita grease R.No.00:
To Next Page
