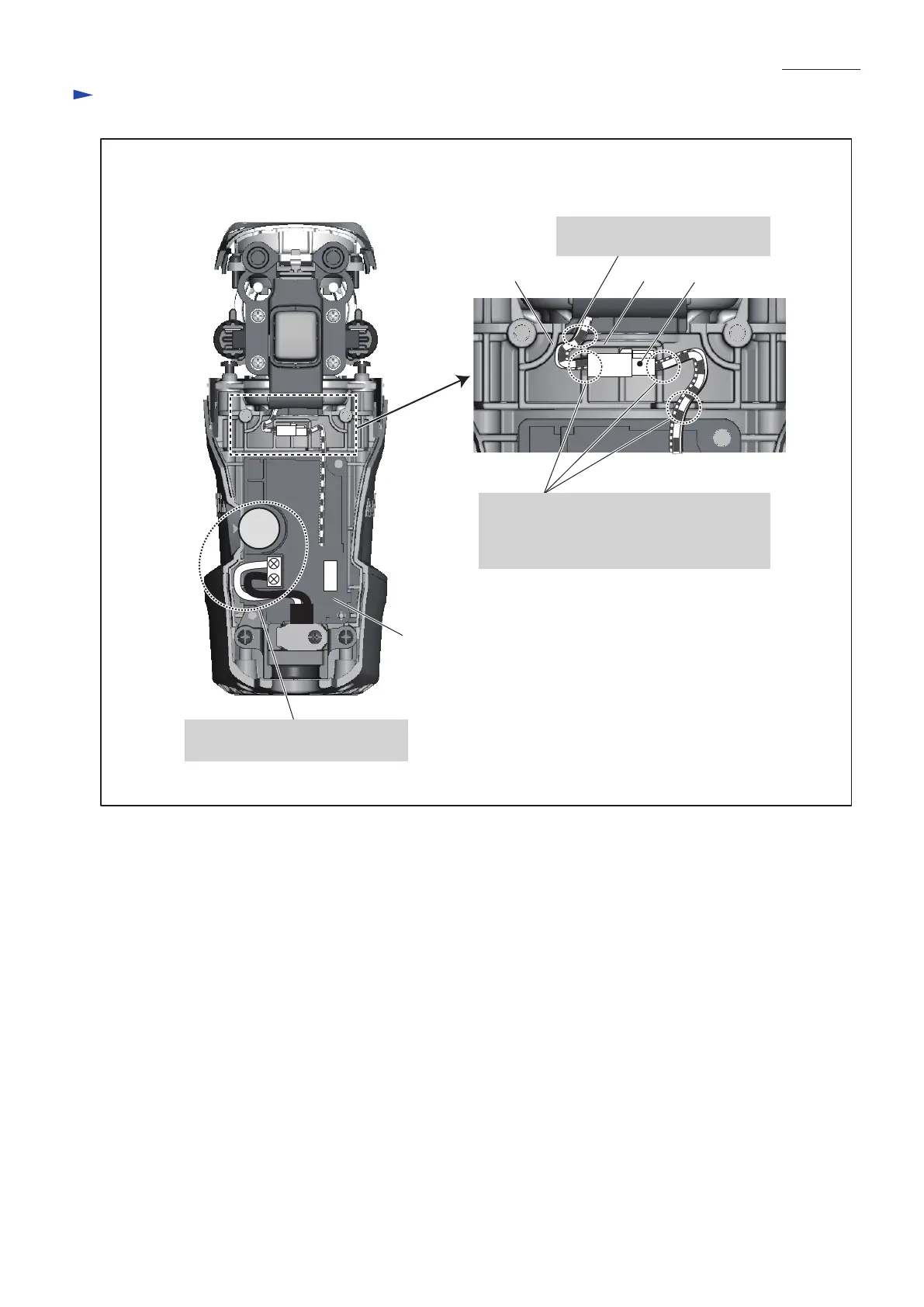

Wiring diagram
Fig. D-3
[Motor housing]
Dial
Rib FRib E
Controller
Connector
Fix Lead wires connected to Connector in
each Lead wire holder.
Note: Do not put Lead wires on or over Ribs
and the inner wall of Motor housing.
Do not put Lead wires on or over
the inner wall of Motor housing.
Route Lead wires of Switch unit
between Ribs E and F.
P 19/ 19

Other manuals for Makita HR4013C

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Makita HR4013C and is the answer not in the manual?

Makita HR4013C Specifications

General IconGeneral
Chuck typeSDS Max
Product colorBlack, Blue
Adjustable speedYes
Cord length4 m
Input power1100 W
Power sourceAC
AC input voltage110-240 V
Impact rate2900 bpm
Rated speed (max)500 RPM
Impact energy (max)8.3 J
Sound pressure level92 dB
Drilling diameter in steel (max)- mm
Drilling diameter in concrete (max)40 mm
Weight and Dimensions IconWeight and Dimensions
Depth479 mm
Width112 mm
Height263 mm
Weight6800 g
