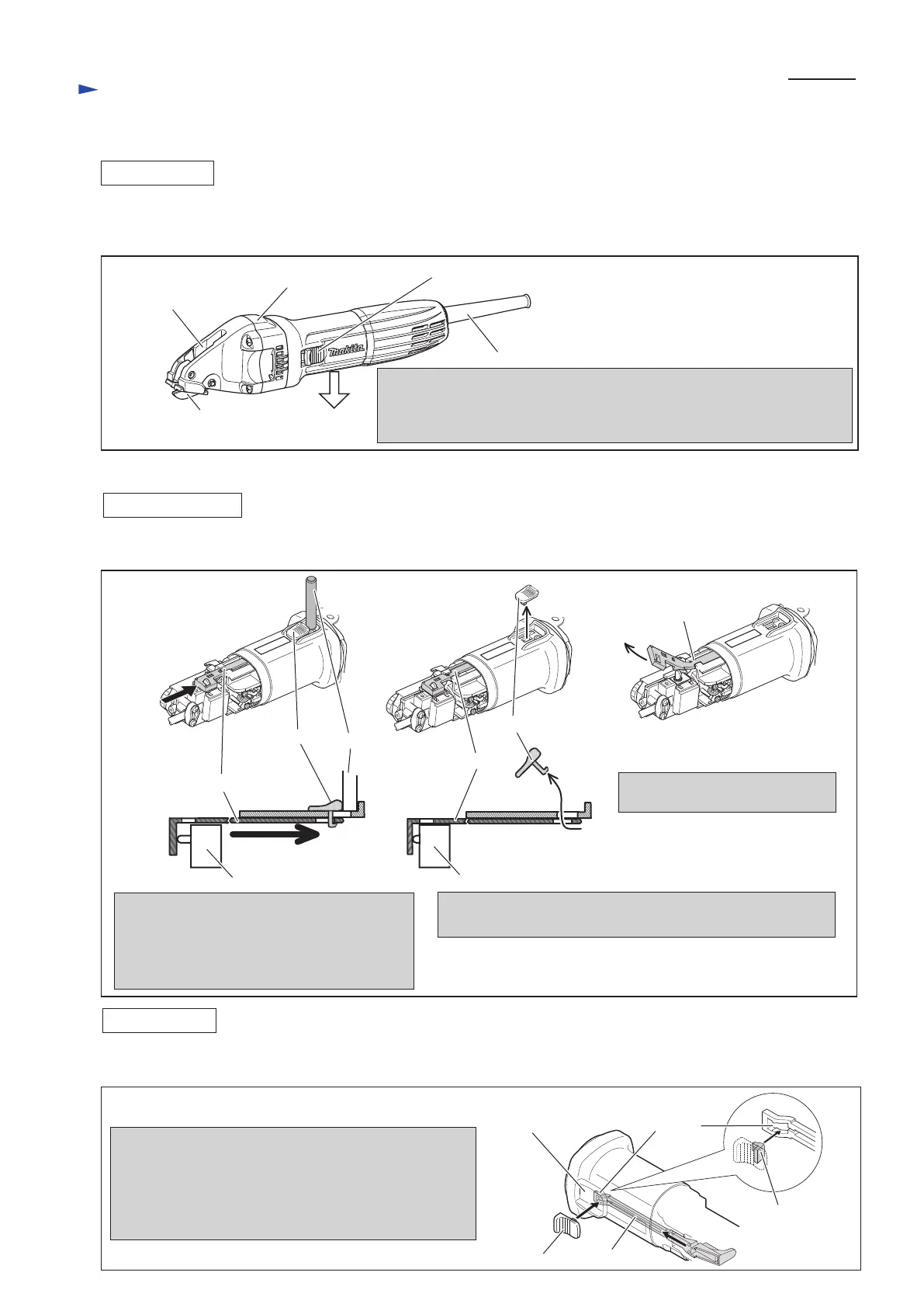

[3] DISASSEMBLY/ASSEMBLY
[3]-4 Armature
[3]-5 Switch Lever
ASSEMBLING
Fig. 14
Fig. 15
Refer to Fig. 15.
Switch Knob on left side viewed from Cord guard side
Cord guard
Gear housing completeCrank housing
complete
Crank and Gear housing completes have to be assembled to Motor housing
so that Switch knob is located on left side viewed from Cord guard side,
and that Center and Side blades are located on belly side viewed from
Cord guard side.
Center and Side blades
Belly side
(1) Assemble Armature, referring to Fig. 13.
(2) Assemble Crank and Gear housing completes to Motor housing as illustrated in Fig. 14.
DISASSEMBLING
Bending Switch lever, pull out it
from Motor housing.
Blocking Switch knob to OFF position by
inerting 1R281, push Switch lever strongly
toward the 1R281.
Only Switch lever can be moved, while Switch
konb can not move because of 1R281.
The linkage of Switch knob is disconnected from Switch lever.
Consequently, Switch knob can be removed.
Switch lever
Switch lever
1R281
Switch knob
Switch
Switch knob
Switch lever
Repair
P 6/ 12
Fig. 16
Assemble Switch lever and Switch knob as illustrated in Fig. 16.
Inserting Switch lever into Motor housing, push it toward
Gear housing complete side until the hole for receiving
Switch knob comes into sight through the hole of Motor
housing.
And engage the Switch knob’s hook to the hole of Switch
lever then release Switch lever.
ASSEMBLING
Switch knob’s hook
Hole for receiving
Switch lever
Switch knob
Switch lever
Hole on
Motor housing
Switch
To Next Page
