6
1
2
007435

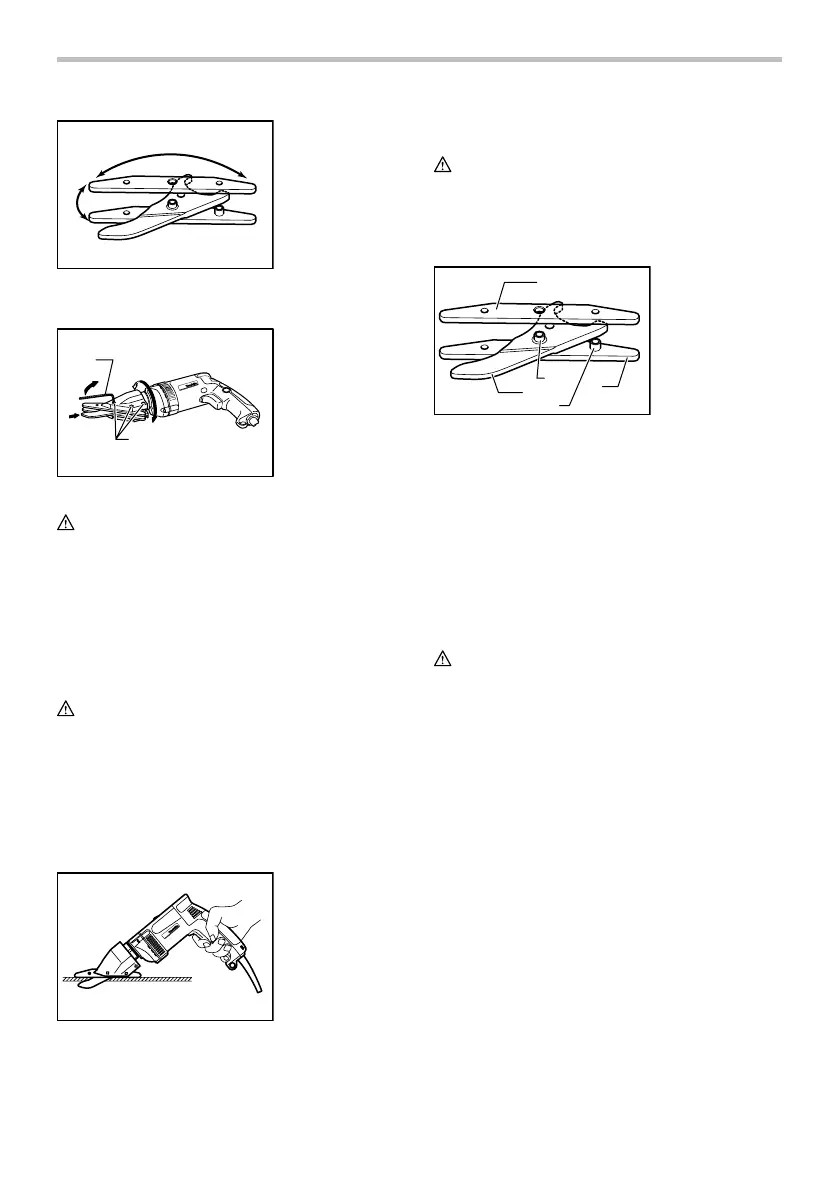

Installing cutting head
1
2
3
007436
CAUTION:
• Secure the cutting head firmly. Otherwise it can
rotate during operation and can cause serious
injury.
Insert the cutting head into the tool with turning it left and
right alternately. Then tighten the three screws with the
hex wrench.
OPERATION
CAUTION:
• This tool is intended for cutting fiber cement
material only, with a thickness of 8 mm or less. Do
not cut other materials or stack-cut. Doing so will
damage the tool and void warranty.
• Wear gloves. Otherwise it can cause injury.
Secure the workpiece firmly. Move the tool forward
keeping the side blades flush with the workpiece
surface.
007434
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and
unplugged before attempting to perform inspection
or maintenance.
Lubrication
1
2
3
4
5
007433
Before operation, lubricate the contact point of the
center blade and the side blades. And, also lubricate
around the pivot sleeve and the spacer.
To maintain product SAFETY and RELIABILITY, repairs,
carbon brush inspection and replacement, any other
maintenance or adjustment should be performed by
Makita Authorized Service Centers, always using Makita
replacement parts.
ACCESSORIES
CAUTION:
• These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• Center blade
• Side blades
• Hex wrench
1. Side blade
2. Center blade
3. Side blade
4. Pivot sleeve
5. Spacer
1. Hex wrench
2. Tighten
3. Screws
1. Reposition
end-to-end
2. Reposition
left-to-right
