Makita LS1040 User Manual

25
(2) 45° bevel angle
Adjust the 45° bevel angle only after performing 0°
bevel angle adjustment. To adjust left 45° bevel
angle, loosen the lever and tilt the blade to the left
fully. Make sure that the pointer on the arm points to
45° on the bevel scale on the arm. If the pointer
does not point to 45°, turn the 45° bevel angle
adjusting bolt on the left side of the arm until the
pointer points to 45°.
Replacing carbon brushes
Remove and check the carbon brushes regularly. Replace
when they wear down to the limit mark. Keep the carbon
brushes clean and free to slip in the holders. Both carbon
brushes should be replaced at the same time. Use only iden-
tical carbon brushes.
Use a screwdriver to remove the brush holder caps. Take out
the worn carbon brushes, insert the new ones and secure
the brush holder caps.
After replacing brushes, plug in the tool and break in brushes
by running tool with no load for about 10 minutes. Then
check the tool while running and electric brake operation
when releasing the switch trigger. If electric brake is not
working well, ask your local Makita service center for repair.
After use
• After use, wipe off chips and dust adhering to the tool
with a cloth or the like. Keep the blade guard clean
according to the directions in the previously covered
section titled “Blade guard”. Lubricate the sliding
portions with machine oil to prevent rust.
To maintain product SAFETY and RELIABILITY, repairs, any
other maintenance or adjustment should be performed by
Makita Authorized or Factory Service Centers, always using
Makita replacement parts.

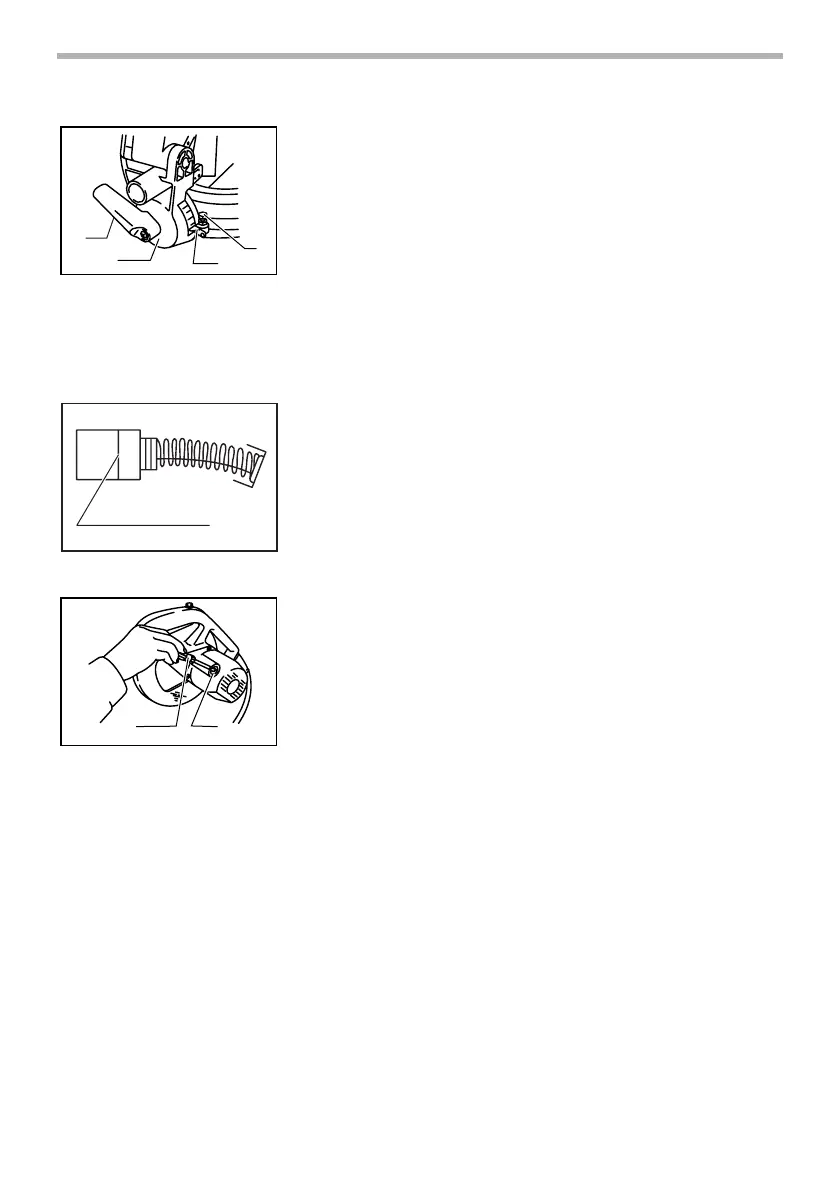

1. Lever
2. Arm
3. Pointer
4. 45° bevel angle adjusting bolt
1
2
3
4
001770
1. Limit mark
1
001145
1. Screwdriver
2. Brush holder cap
12
001772

Makita LS1040 Specifications

General

Input power	1650 W
Cable length	2.5 m
Power source	AC
Blade diameter	260 mm
Idle speed (max)	4600 RPM
Dust bag included	Yes

Weight and Dimensions

Depth	530 mm
Width	532 mm
Height	476 mm
Weight	11600 g
