Makita LS1040F Technical Information

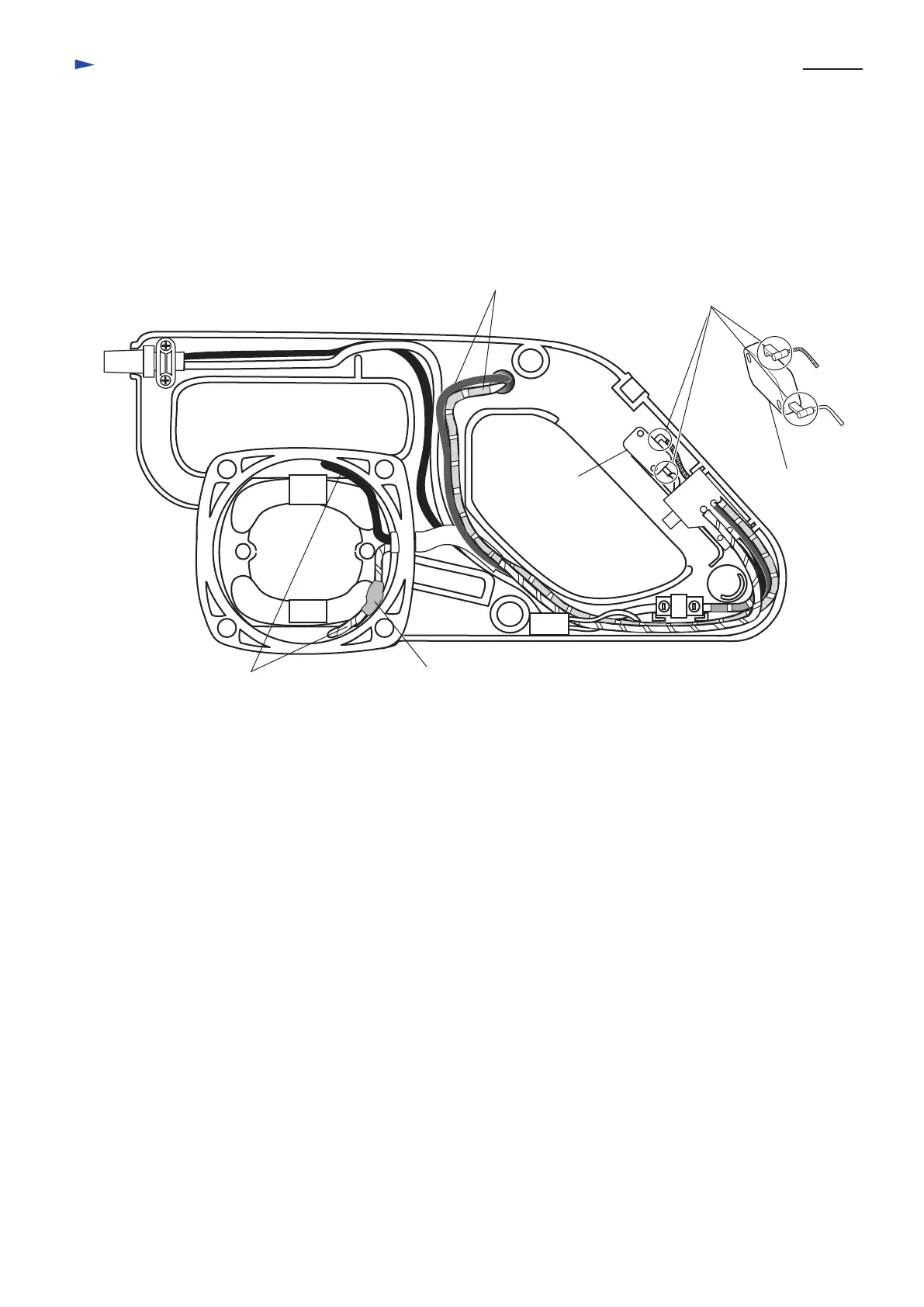

Wiring diagram
P 8 / 8
Switch
for brake
Switch
for brake
Choke coil
Put choke coil in
this position.
Do not slack lead wires
in motor housing.
Lead wires of light assembly
The receptacles connected to
switch for brake, have to be faced
to the wall of handle.
<Note>
For some countries, the products can
be supplied without installing terminal
block soft starter circuit, choke coil and
noise suppressor .

Makita LS1040F Specifications

General

Input power	1650 W
Power source	AC
Blade bore	30 mm
Blade diameter	255 mm
Dust bag included	Yes
Idle speed (max)	4600 RPM
Miter setting (left)	45 °
Miter setting (right)	52 °
Cutting capacity 0°	93 x 95 mm
Cutting capacity 45° miter	93 x 67 mm

Weight and Dimensions

Weight	12600 g
