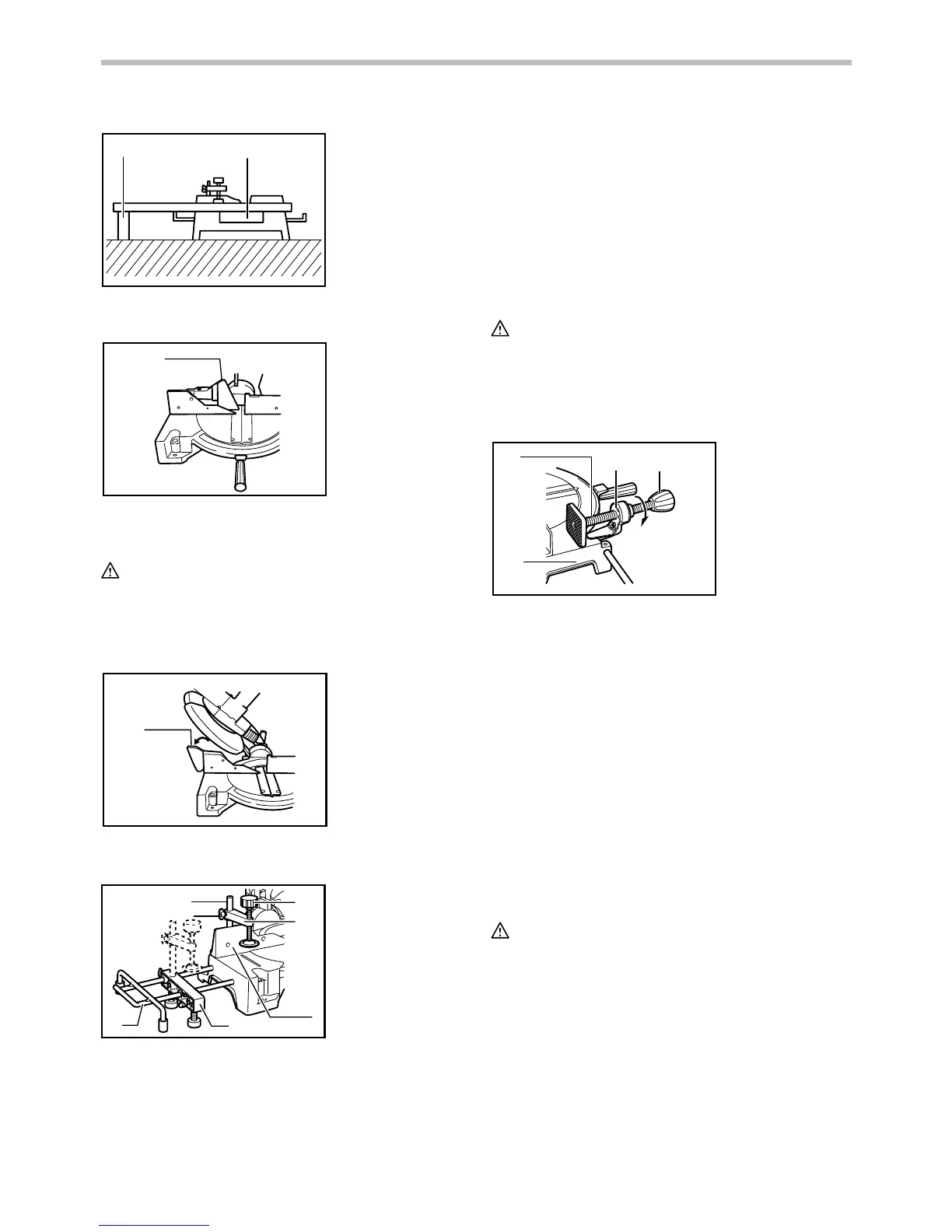

Makita LS1040F User Manual

11
1
2
001549
Sub-fence
1
001766
This tool is equipped with the sub-fence. It should be
positioned as shown in the figure.
CAUTION:
• When performing left bevel cuts, flip the fence over
to the left position as shown in the figure. Otherwise,
it will contact the blade or a part of the tool, causing
possible serious injury to the operator.
1
001767
1. Vertical vise
1
2
3
4
5
6
7
012655
The vertical vise can be installed in two positions on
either the left or right side of the guide fence or the holder
assembly (optional accessory). Insert the vise rod into
the hole in the guide fence or the holder assembly and
tighten the screw to secure the vise rod.
Position the vise arm according to the thickness and
shape of the workpiece and secure the vise arm by
tightening the screw. If the screw to secure the vise arm
contacts the guide fence, install the screw on the
opposite side of vise arm. Make sure that no part of the
tool contacts the vise when lowering the handle all the
way. If some part contacts the vise, re-position the vise.
Press the workpiece flat against the guide fence and the
turn base. Position the workpiece at the desired cutting
position and secure it firmly by tightening the vise knob.
CAUTION:
• The workpiece must be secured firmly against the
turn base and guide fence with the vise during all
operations.
2. Horizontal vise (optional accessory)
12
3
4
001807
The horizontal vise can be installed on either the left or
right side of the base. When performing 15° or greater
miter cuts, install the horizontal vise on the side opposite
the direction in which the turn table is to be turned. By
turning the vise knob counterclockwise, the screw is
released and the vise shaft can be moved rapidly in and
out. By turning the vise knob clockwise, the screw
remains secured. To grip the workpiece, turn the vise
knob gently clockwise until the projection reaches its
topmost position, then fasten securely. If the vise knob is
forced in or pulled out while being turned clockwise, the
projection may stop at an angle. In this case, turn the vise
knob back counterclockwise until the screw is released,
before turning again gently clockwise.
The maximum width of the workpiece which can be
secured by the horizontal vise is 130 mm.
CAUTION:
• Grip the workpiece only when the projection is at
the topmost position. Failure to do so may result in
insufficient securing of the workpiece. This could
cause the workpiece to be thrown, cause damage
to the blade or cause the loss of control, which can
result in PERSONAL INJURY.
1. Vise knob
2. Projection
3. Vise shaft
4. Base
1. Vise rod
2. Screw
3. Vise knob
4. Vise arm
5. Guide fence
6. Holder assembly
7. Holder
1. Sub-fence
1. Sub-fence
1. Support
2. Turn base

Makita LS1040F Specifications

General

Input power	1650 W
Power source	AC
Blade bore	30 mm
Blade diameter	255 mm
Dust bag included	Yes
Idle speed (max)	4600 RPM
Miter setting (left)	45 °
Miter setting (right)	52 °
Cutting capacity 0°	93 x 95 mm
Cutting capacity 45° miter	93 x 67 mm

Weight and Dimensions

Weight	12600 g
