Makita LS1040F User Manual

10
1
2
001859

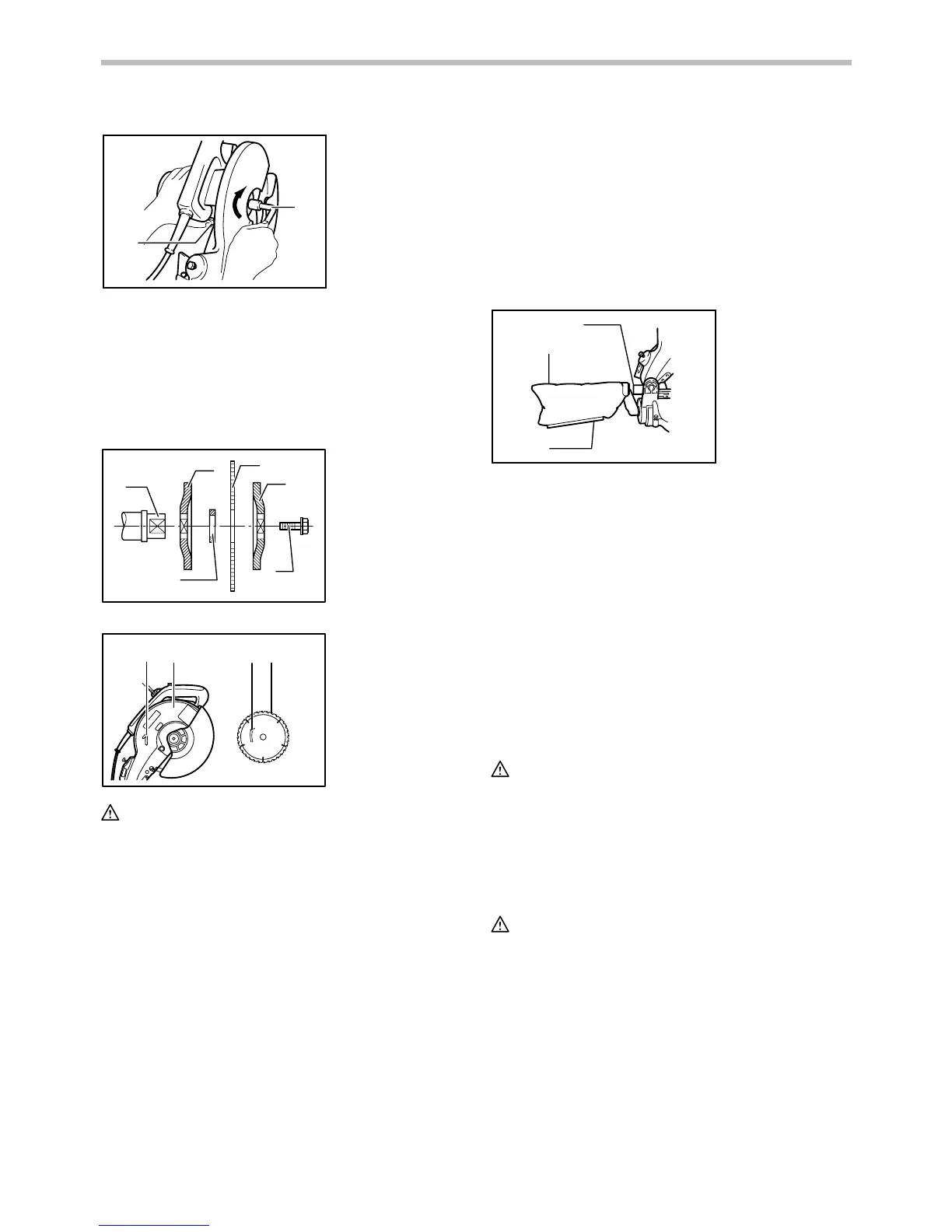

To i n s ta l l t h e b l ad e, mo u n t i t c a re f ul l y o n t o t h e sp in dle ,
making sure that the direction of the arrow on the surface
of the blade matches the direction of the arrow on the
blade case. Install the outer flange and hex bolt, and then
use the socket wrench to tighten the hex bolt
(left-handed) securely counterclockwise while pressing
the shaft lock.
1
2
3
4
5
6
003828
21 43
003829
CAUTION:
For all countries other than European countries
• The silver ring 25.4 mm in outer diameter is
factory-installed onto the spindle. The black ring 25
mm in outer diameter is included as standard
equipment. Before mounting the blade onto the
spindle, always be sure that the correct ring for the
arbor hole of the blade you intend to use is installed
onto the spindle.
For European countries
• The ring 30 mm in outer diameter is
factory-installed onto the spindle.The ring 25 mm
in outer diameter is included as standard
equipment. Before mounting the blade onto the
spindle, always be sure that the correct ring for the
arbor hole of the blade you intend to use is
installed onto the spindle.
Install the flange and hex bolt, and then use the socket
wrench to tighten the hex bolt securely counterclockwise
while pressing the shaft lock.
Return the blade guard and center cover to its original
position. Then tighten the hex bolt clockwise to secure
the center cover. Lower the handle to make sure that the
blade guard moves properly. Make sure shaft lock has
released spindle before making cut.
Dust bag
1
2
3
001861
The use of the dust bag makes cutting operations clean
and dust collection easy. To attach the dust bag, fit it onto
the dust nozzle.
When the dust bag is about half full, remove the dust bag
from the tool and pull the fastener out. Empty the dust
bag of its contents, tapping it lightly so as to remove
particles adhering to the insides which might hamper
further collection.
NOTE:
• If you connect a Makita vacuum cleaner to this tool,
more efficient and cleaner operations can be
performed.
Securing workpiece
WARNING:
• It is extremely important to always secure the
workpiece properly and tightly with the vise. Failure
to do so can cause the tool to be damaged and/or
the workpiece to be destroyed. PERSONAL
INJURY MAY ALSO RESULT. Also, after a cutting
operation, DO NOT raise the blade until the blade
has come to a complete stop.
CAUTION:
• When cutting long workpieces, use supports that
are as high as the top surface level of the turn base.
Do not rely solely on the vertical vise and/or
horizontal vise to secure the workpiece.
Thin material tends to sag. Support workpiece over
its entire length to avoid blade pinch and possible
KICKBACK.
1. Dust nozzle
2. Dust bag
3. Fastener
1. Blade case
2. Arrow
3. Saw blade
4. Arrow
1. Spindle
2. Flange
3. Saw blade
4. Flange
5. Hex bolt
6. Ring
1. Socket wrench
2. Shaft lock

Makita LS1040F Specifications

General

Input power	1650 W
Power source	AC
Blade bore	30 mm
Blade diameter	255 mm
Dust bag included	Yes
Idle speed (max)	4600 RPM
Miter setting (left)	45 °
Miter setting (right)	52 °
Cutting capacity 0°	93 x 95 mm
Cutting capacity 45° miter	93 x 67 mm

Weight and Dimensions

Weight	12600 g
