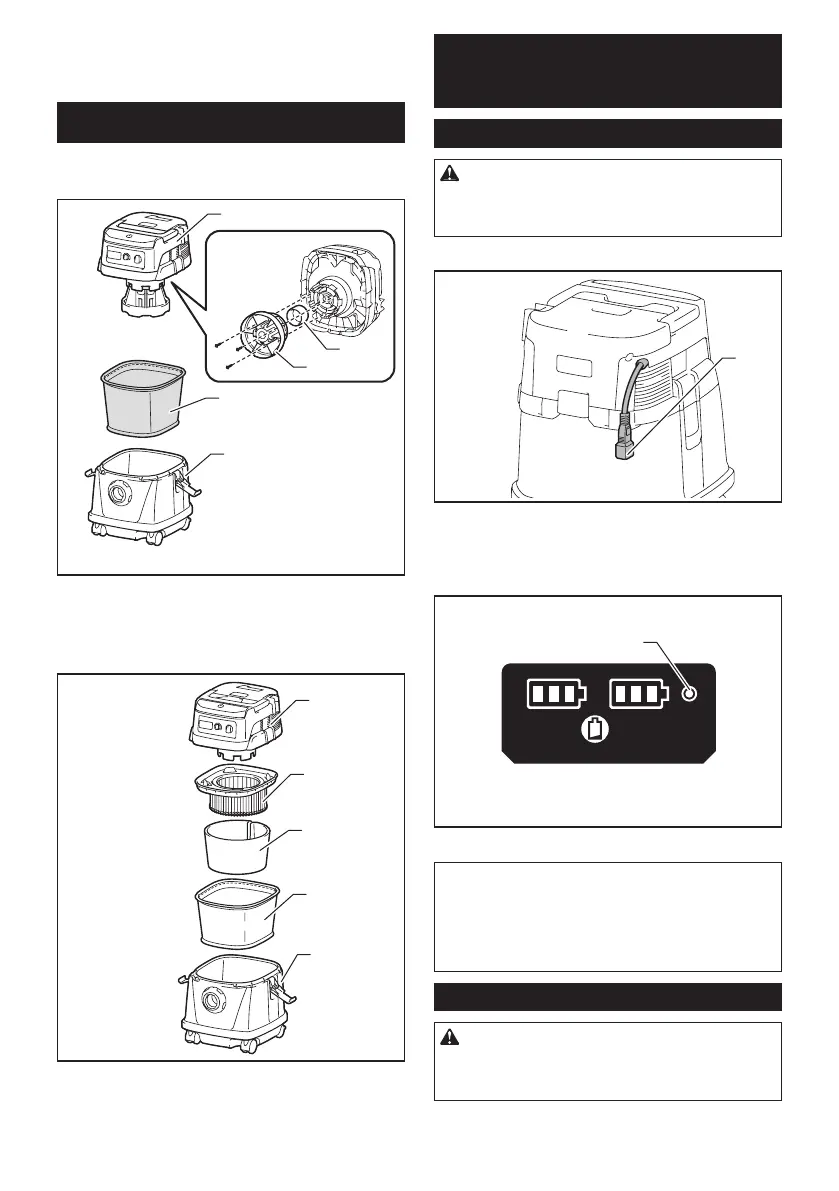

Makita XCV13 Series - PARTS DESCRIPTION; Use with AC power; Use with battery

7 ENGLISH
4. Charge the battery cartridge if you do not use
it for a long period (more than six months).
PARTS DESCRIPTION
Model XCV12
(Cloth lter (for dry and wet dust) model)
1
4
5
2
3
► 1. Tank cover 2. Float 3. Float cage 4. Cloth lter
5. Tank
Model XCV13
(Powder lter (for dry dust) model)
1
2
3
4
5
► 1. Tank cover 2. Powder lter (HEPA) 3. Damper
4. Prelter 5. Tank
FUNCTIONAL
DESCRIPTION
Use with AC power:
WARNING: Before plugging the cleaner,
always make sure that the cleaner is switched off.
Plugging the cleaner with the switch on may cause an
unexpected start resulting in serious personal injury.
Connect the plug to a power supply.
1
► 1. Plug (the shape and cord length may differ from
country to country)
The AC power indicator lights up when setting the
stand-by switch to "I" side.
12
1
► 1. AC power indicator
NOTE: Even operating in DC power mode, the
cleaner is automatically changed into AC power mode
when plugged in.
NOTE: If the cleaner is unplugged during opera-
tion with the battery inserted, the cleaner gets into
stand-by state.
Use with battery:
CAUTION: Always be sure that the cleaner is
switched off, unplugged, and the battery cartridge
is removed before adjusting or checking function
on the cleaner.
