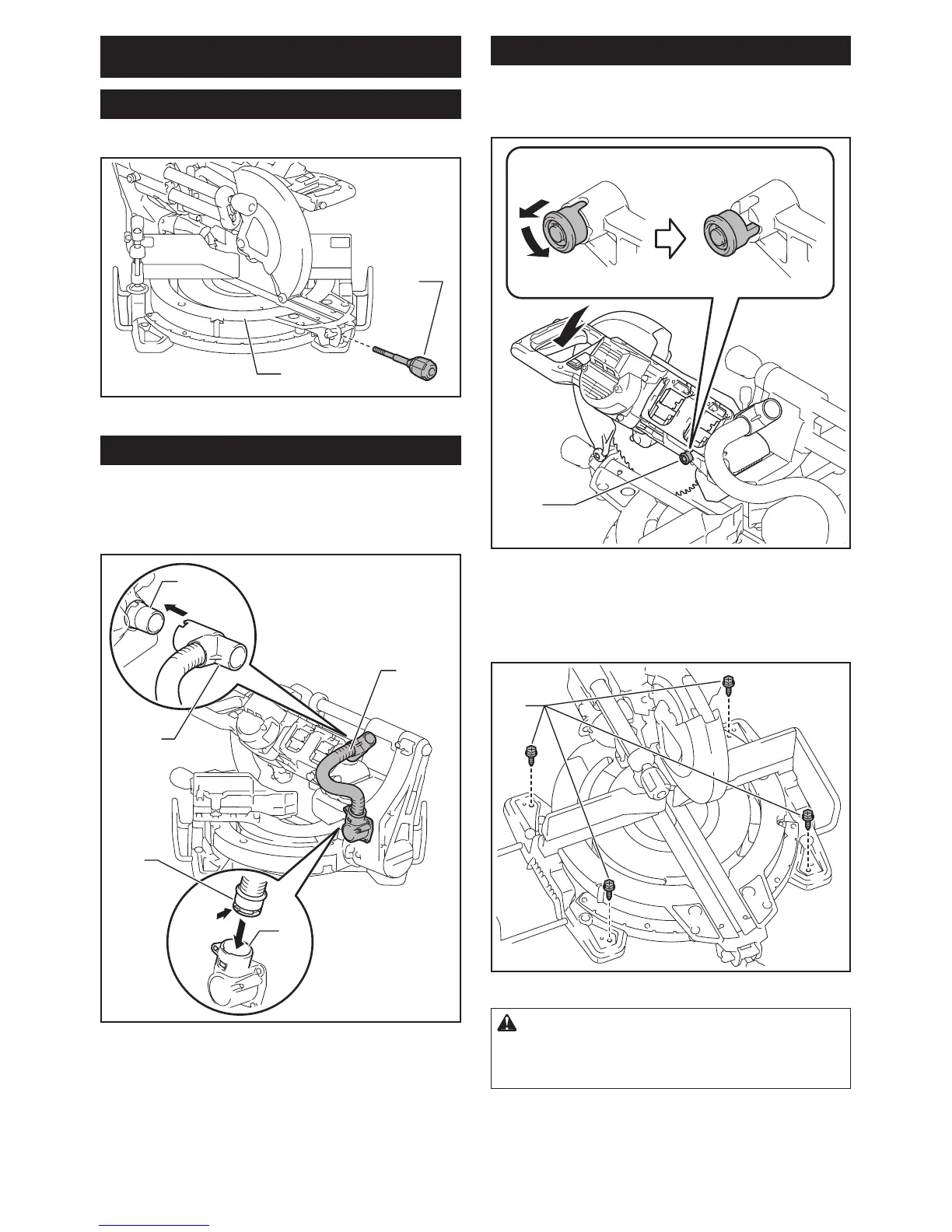

10 ENGLISH
INSTALLATION
Installing the grip
Screw the threaded shaft of the grip into the turn base.
1
2
► 1. Grip 2. Turn base
Installing the dust extraction hose
Connect the dust extraction hose to the tool as
illustrated.
Make sure that the elbow and the sleeve t properly to
the ports of the tool.
1
2
4
4
3
► 1. Dust extraction hose 2. Elbow 3. Sleeve 4. Port
Bench mounting
When the tool is shipped, the handle is locked in the
lowered position by the stopper pin. While lowering the
handle slightly, pull the stopper pin and rotate it 90°.
21
3
► 1. Locked position 2. Unlocked position 3. Stopper
pin
This tool should be bolted with four bolts to a level and
stable surface using the bolt holes provided in the tool's
base. This will help prevent tipping and possible injury.
1
► 1. Bolt
WARNING: Ensure that the tool will not move
on the supporting surface. Movement of the miter
saw on the supporting surface while cutting may
result in loss of control and serious personal injury.
