Malabar 795 - Valve Block & Hand Pump Assembly Parts Breakdown; Assembly Diagram and Components

✚ 8

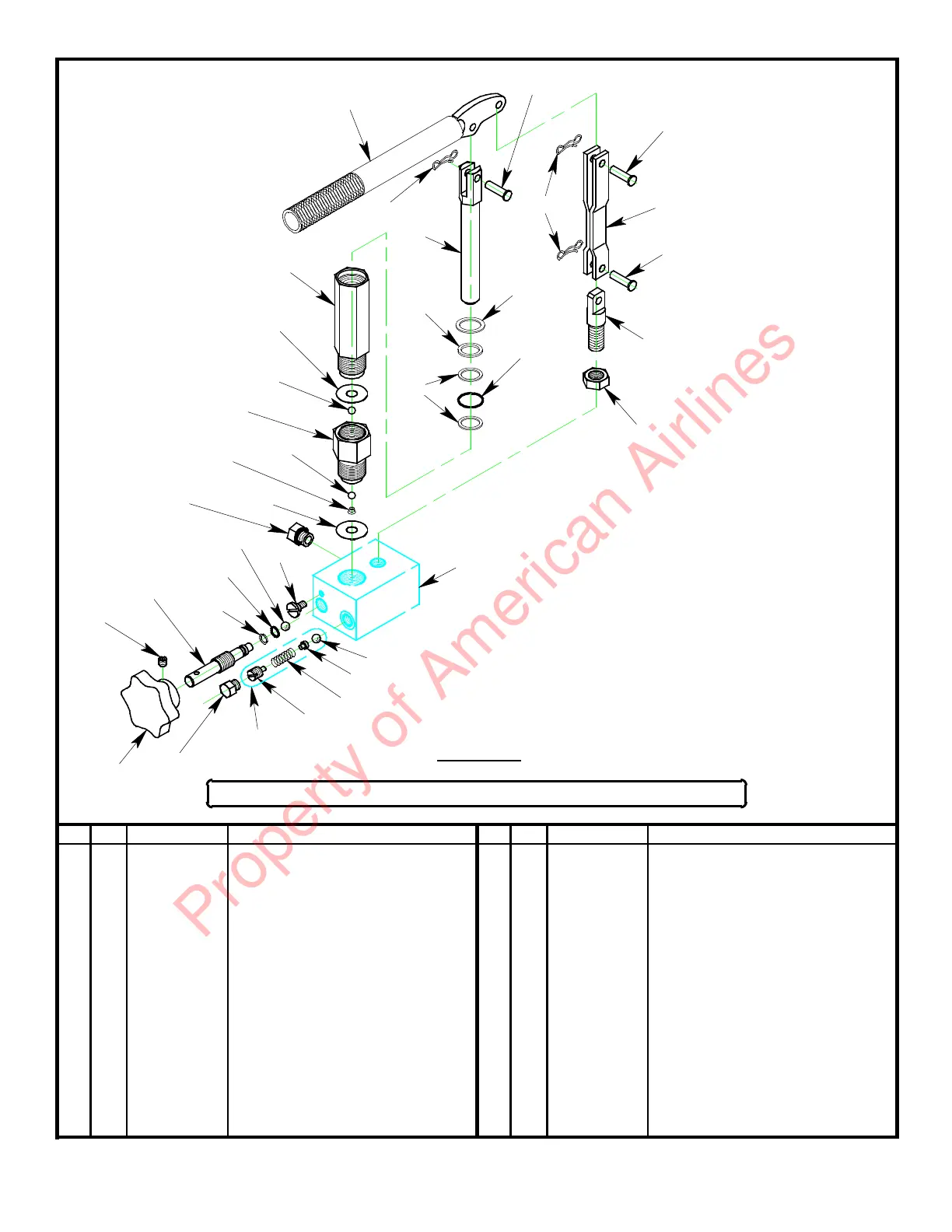

FIGURE 11
NO. QTY PART NO. DESCRIPTION
881808 VALVE BLOCK & HAND PUMP ASSEMBLY
18 1 881847
19 1 881846
20 1 55926-112
21 1 55911-15
22 1 55925-210
23 2 55922-15
24 3 55002
25 3 372-028
26 1 55011
27 1 352-004
28 1 55012
29 REF 881807
30 1 MS28778-4
31 1 881816
32 1 717-003
33 1 MS28778-6
34 1 412-007
VALVE BLOCK
GASKET
SPRING
STEEL BALL, 7/32 DIA
STEEL BALL, 1/4 DIA
RELEASE VALVE KNOB
RELEASE VALVE STEM
BACK-UP RING
O-RING
STEEL BALL, 5/16 DIA
SHSS, 5/16-24 x 5/16 LG
PLUG, 1/4 SAE
SAFETY BY-PASS SCREW
SPRING GUIDE
RELEASE VALVE LOCKSCREW
SPRING
FULCRUM
- 25 -
1 1 55010
2 2 55024
3 1 55295
4 1 412-003
5 1 412-004
6 1 79366
7 1 79365
8 1 55929-011
9 1 55925-011
10 1 412-002
11 1 331-004
12 1 717-001
13 1 55148
14 1 55153
15 1 65228
16 1 495-048
17 1 881815
NO. QTY PART NO. DESCRIPTION
31
11
6
12
✚ 30
13
14
16 ✚
34 ✚
PLUNGER, 3/4 DIA
BODY, 3/4 DIA
RETAINING RING
SCRAPER RING
O-RING
BACK-UP RING
FLAT HEAD PIN, 5/16 DIA
BOW TIE COTTER
ANCHOR
HEX JAM NUT, 5/8-18
LINK
BASE
O-RING (PART OF ITEM 12)
SAFETY POP-OFF VALVE ASSY
PLUG, 3/8 SAE
O-RING (PART OF ITEM 32)
STEEL BALL, 9/32 DIA
29
✚ 5
✚ 2
32
✚ 33
7
1
✚ 10
✚ 9
✚ 3
✚ 23
15
✚ 4
19
✚ 21
17
18
✚ 2
✚ 25
27
22 ✚
26
24 ✚
24 ✚
✚ PART OF HYDRAULIC CASTER
REPAIR PARTS KIT
28
✚ 25
24 ✚
20 ✚
