3 INSTALLATION
3.1 Installation Preparation
Installation Notice
• Please obtain a 3-phase power supply cable. Quantity depend on actual requirement.
• RCD of the charger is integrated 6mA DC, please install a Type A or Type B breaker
before the charging station.

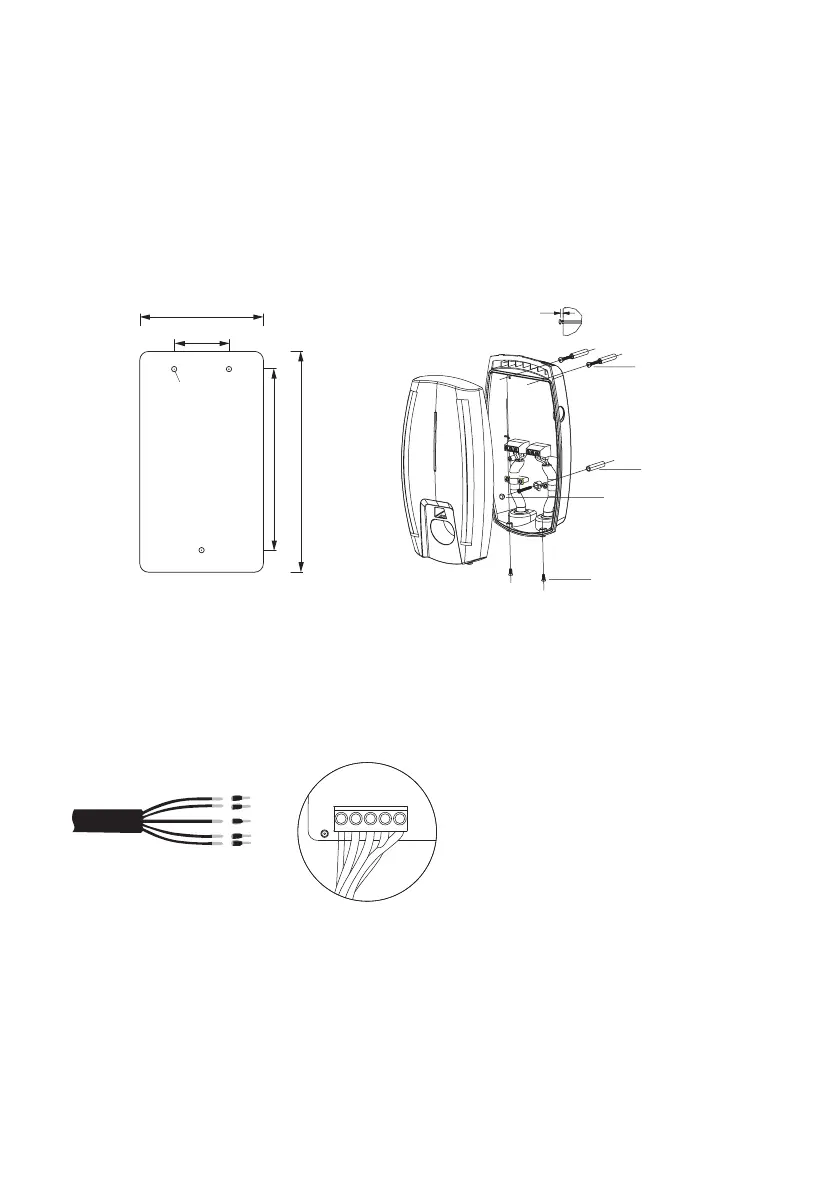

3.2 Mounting
140 mm
5
3-M4x32
Screw
3-Ø6 Wall plug
Sealed cap
2-M4x12
Screw
3-Ø6
250 mm
205 mm
62 mm
3.3 Wiring
1. Remove a length of 40 mm of the cable jacket and strip the wire insulation to a
length of 8-15 mm.
2. Connect the conductors to the terminal block according to image below.
PE N L1 L2 L3
To Next Page
