Mamiya C330 User Manual

15

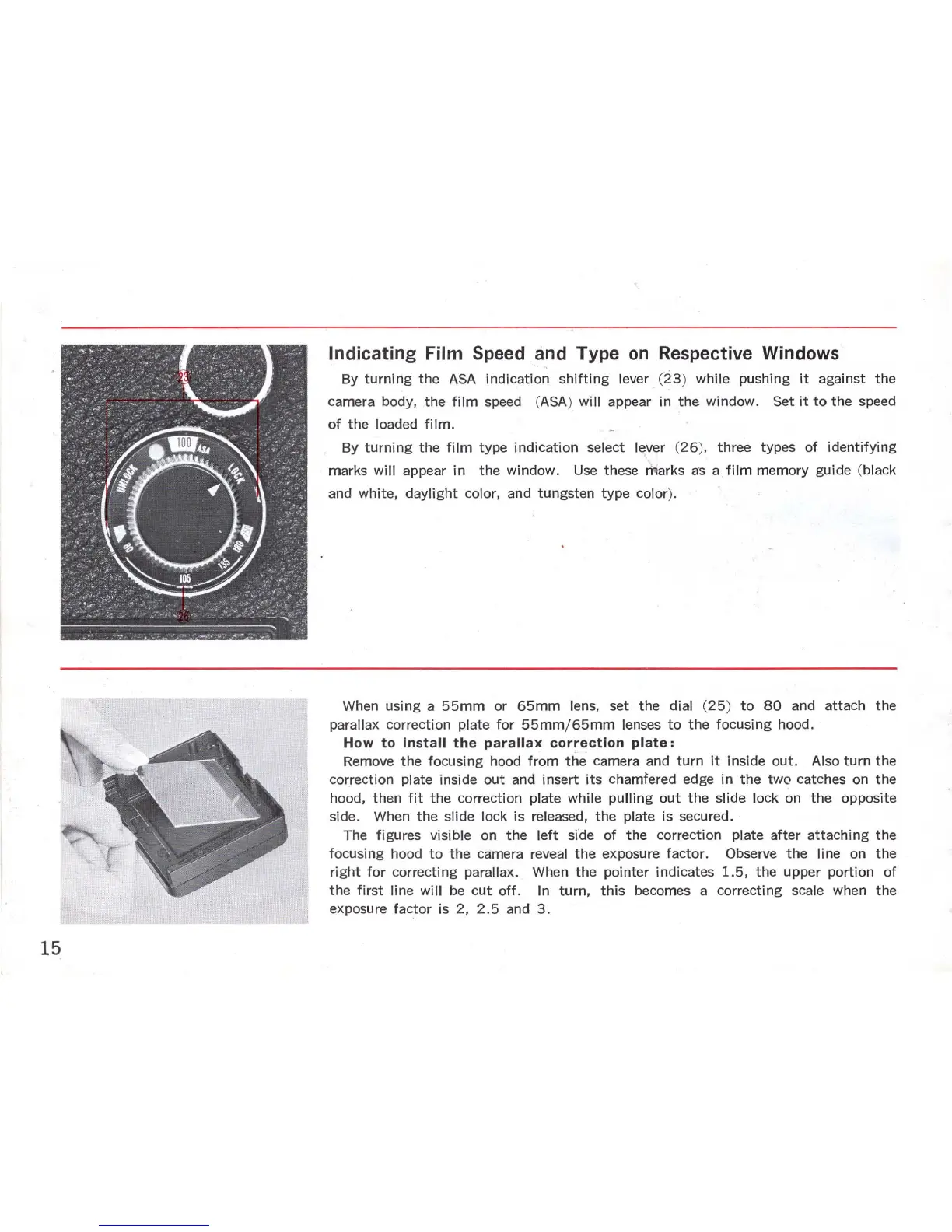

Indicating Film Speed and Type on Respective Windows
By turning the ASA indication shifting lever ( 23 ) while pushing it against the
camera body, the film speed (ASA) will appear in the window. Set it to the speed
of the loaded film .
By turning the film type indication select lever ( 26 ), three types of identifying
marks will appear in the window. Use these marks as a film memory guide (black
and white,
daylight color, and tungsten type color).
When
using a 55mm or 65mm lens, set the dial ( 25 ) to 80 and attach the
parallax correction plate for 55mm / 65mm lenses to the focusing hood.
How to install the parallax correction plate:
Remove the focusing hood from the camera and turn it inside out. Also turn the
correction plate inside out and insert its chamfered edge in the two catches on the
hood, then fit the correction plate while pulling out the slide lock on the opposite
side. When
the slide lock is released, the plate is secured.
The figures visible on
the left side of the correction plate after attaching the
focusing hood to the camera reveal the exposure factor. Observe the line on the
right for correcting parallax. When the pointer indicates 1.5, the upper portion of
the first line will be cut off. In turn, this becomes a correcting scale when the
exposure factor is 2, 2.5 and 3 .

Mamiya C330 Specifications

General

Brand	Mamiya
Model	C330
Category	Digital Camera
Language	English
