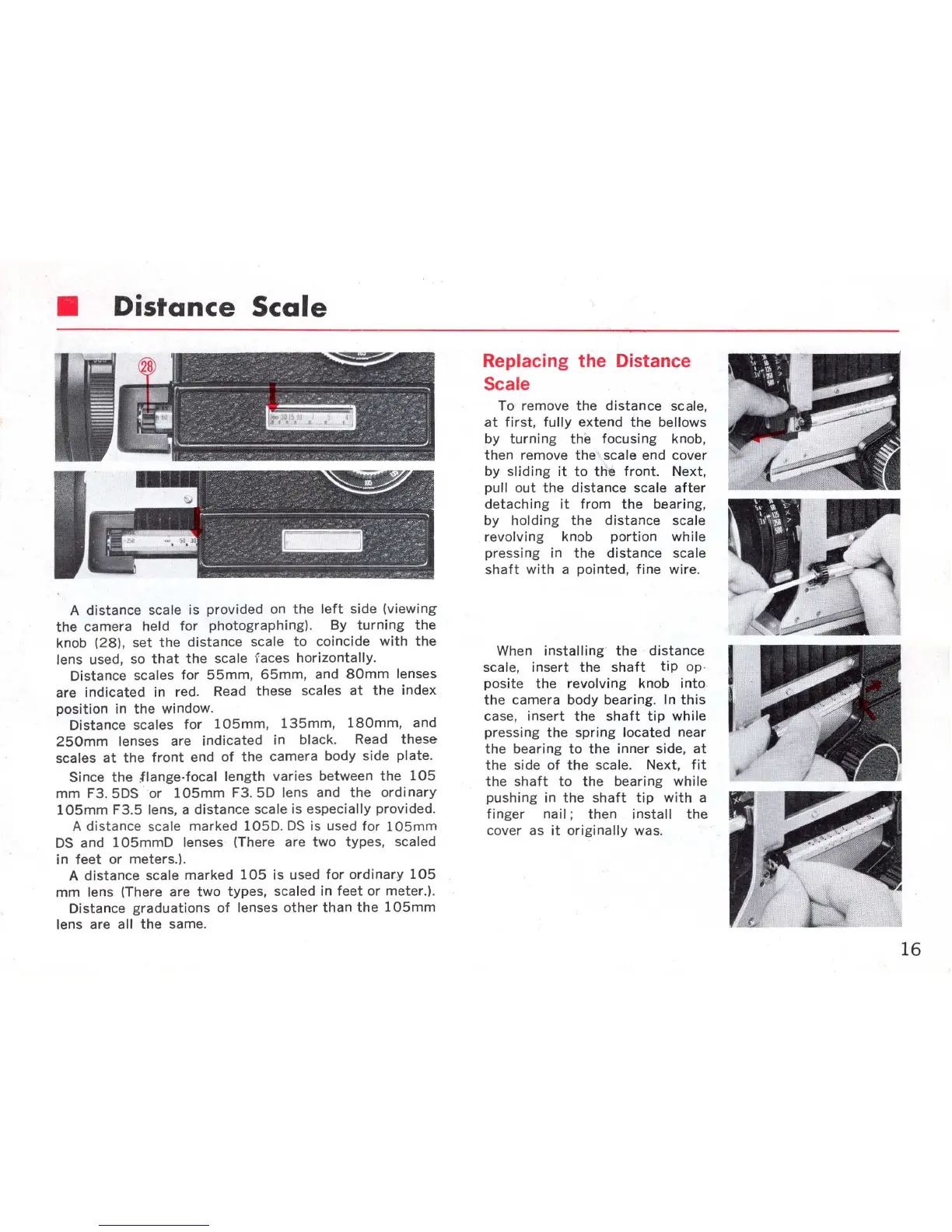

• Distance Scale
A distance scale is provided on the left side (viewing
the camera held for photographing). By turning the
knob (28). set the distance scale to coincide with the
lens used, so that the scale faces horizontally .
Distance
scales for 55mm, 65mm, and 80mm lenses
are indicated in red. Read these scales at the index
position in the window.
Distance
scales for 105mm , 135mm, 180mm, and
250mm lenses are indicated in black. Read these
scales at the front end of the camera body side plate .
Since
the flange ·focal length varies between the 105
mm F3 . 5DS or 105mm F3 . 5D lens and the ordinary
105mm F3.5 lens, a distance scale is especially provided.
A distance
scale marked 1 05D . DS is used for 105mm
DS and 105mmD lenses (There are two types, scaled
in feet or meters . ).
A distance scale marked 105 is used for ordinar.y 105
mm lens (There are two types , scaled in feet or meter . ).
Distance graduations of lenses other than the 105mm
lens are all the same.
Replacing the Distance
Scale
To remove the distance scale
at first, fully extend the bellow~
by turning the focusing knob,
then remove the scale end cover
by
sliding it to tH e front. Next,
pull out the distance scale after
detaching it from the bearing,
by
holding the distance scale
revolving
knob portion while
pressing in the distance scale
shaft with a pointed, fine wire.
When
installing the distance
scale, insert the shaft tip op·
posite the revolving knob into
the camera body bearing. In this
case, insert the shaft tip while
pressing the spring located near
the bearing to the inner side, at
the side of the scale. Next , fit
the shaft to the bearing while
pushing in the shaft tip with a
finger nail; then install the
cover as it originally was.
16
