Mamiya C330 User Manual

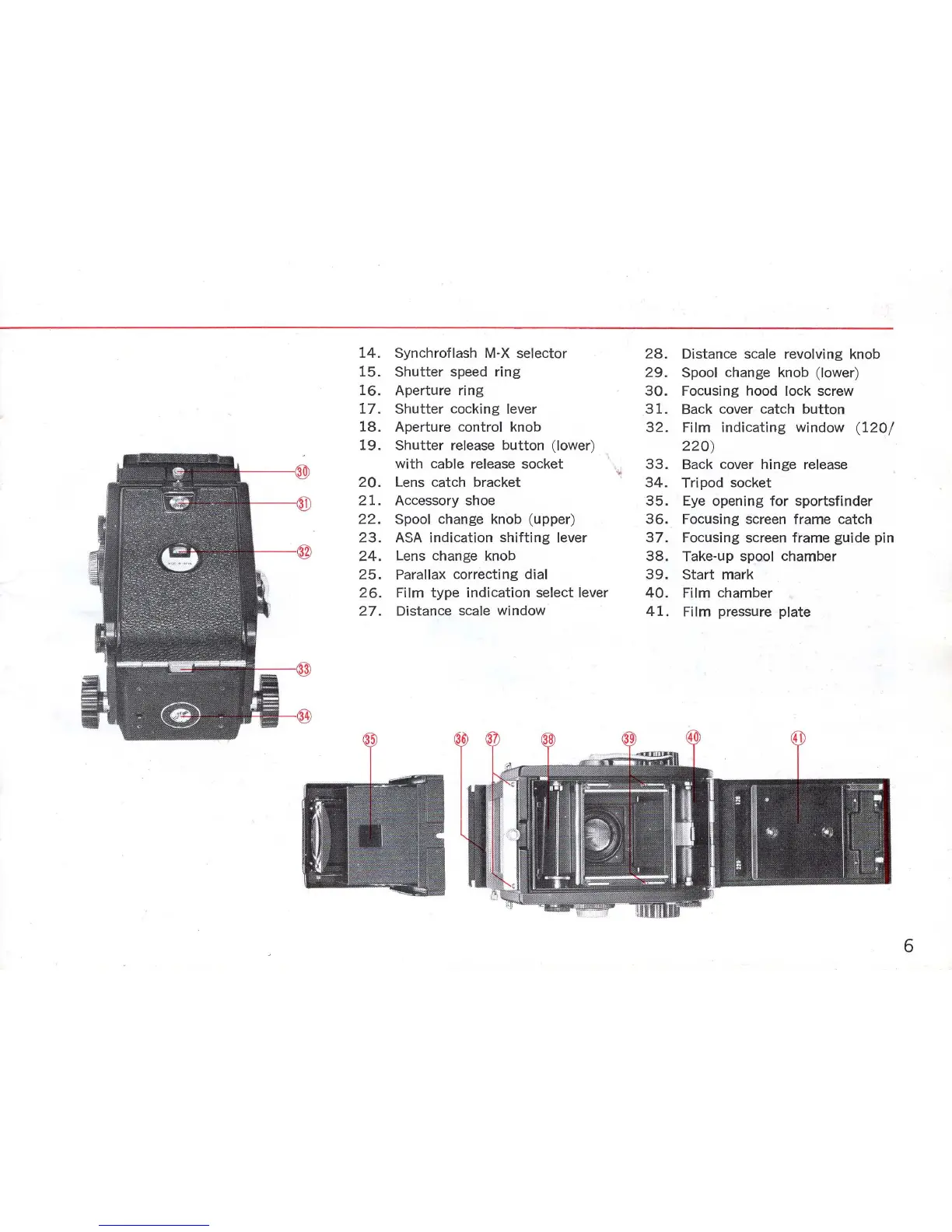

14 . Synchroflash M·X selector
28. Distance scale revolving knob
15. Shutter speed ring
29 .
Spool change knob (lower)
16 .
Aperture ring
30. Focusing hood lock screw
17 .
Shutter cocking lever
31. Back cover catch button
18.
Aperture control knob
32 . Film
indicating window
(1201
19.
Shutter release button
(lower)
220)
with cable release socket
' ;.;
33. Back cover hinge release
20 . Lens catch bracket
34. Tripod socket
21.
Accessory shoe
35. Eye opening for sportsfinder
22 . Spool change knob (upper) 36. Focusing screen frame catch
23 .
ASA indication shifting lever 37. Focusing screen frame guide pin
24 .
Lens change knob
38.
Take· up spool
chamber
25 . Parallax correcting dial 39. Start mark
26 .
Film type indication select lever
40 .
Film chamber
27 .
Distance scale window
41. Fi lm pressure plate
6
