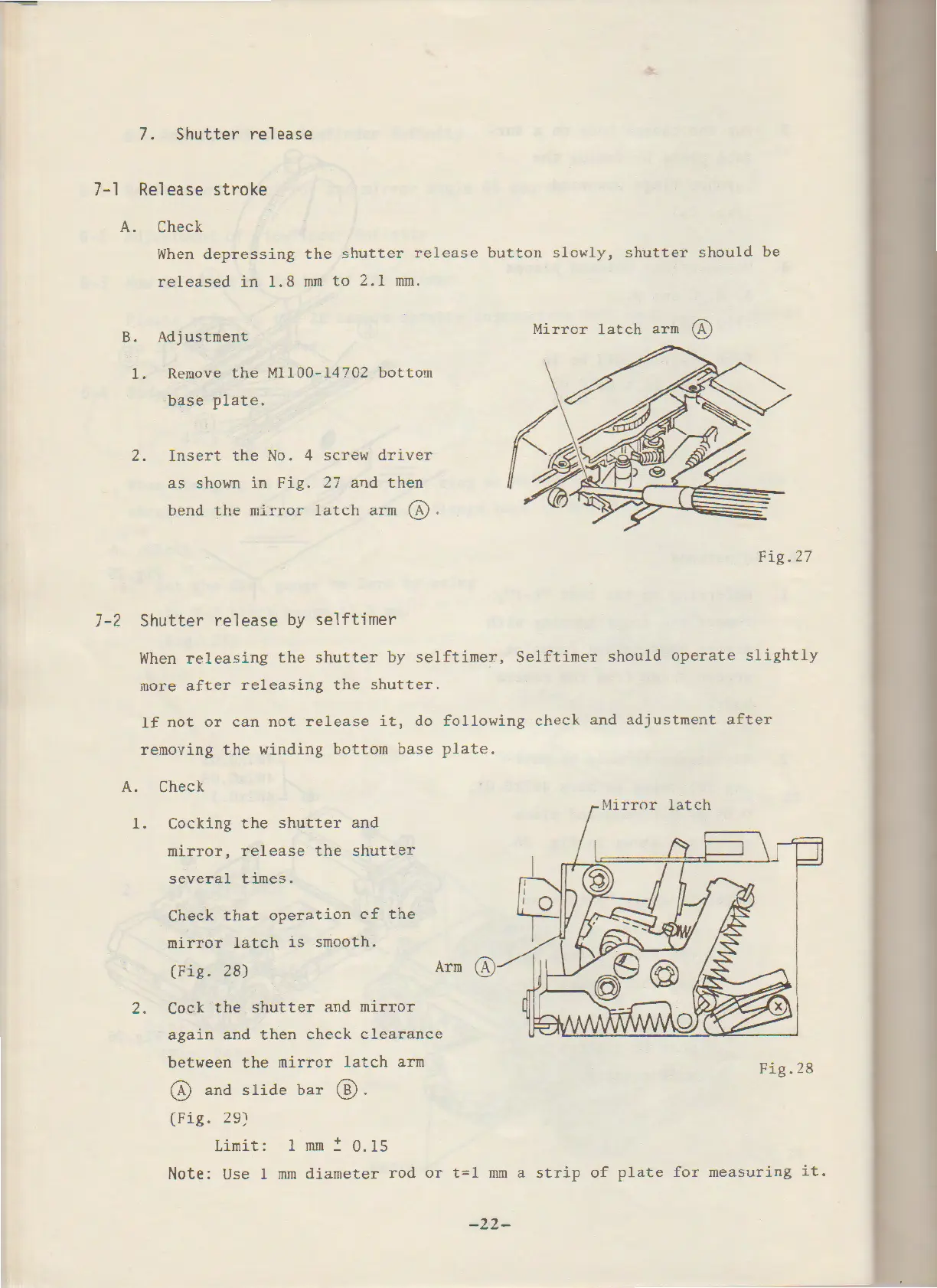

7. Shutter release
7-1 Release stroke
A. Check
When depressing the shutter re1ease button s1ow1y, shutter shou1d be
re1eased in 1.8 mm to 2.1 mm.
B. Adjustment
l. Remove the M1100 -14702 bottom
base p1ate.
2. lnsert the ~o. 4 screw driver
as shown in Fig. 27 and then
bend the mirror 1atch arm 0.
7-2 Shutter release by selftimer
Mirror 1atch arm @
Fig.27
When releasing the shutter by selftimer, Se1ftimcr shou1d operate slight1y
more after releasing the shutter.
If not or can not release it, do following check and adjustment after
removing the winding bottom base plate.
A. Check
l. Cocking the shutter and
mirror, release the shutter
severa! times.
Check that operation cf the
mirror latch is smooth.
(Fig. 28)
Arm @
2. Cock the shutter and mirror
again and then check clearance
between the mirror latch arm
0 and slide bar @ .
(Fig. 29)
Limi t : 1
mm ~ O. 15
Fig . 28
Note: Use 1 mm diameter rod or t =l mm a strip of plate for measuring it.
-22-
