Engine lubrication
The engine is equipped with force-feed lubrication.
The gear oil pump for the force-feed lubrication system of the engine is fitted on the tim-
ing gear case in a recess of the crankcase and driven by gears.
The oil pump draws the oil from the oil sump and delivers it through the oil cooler and oil
filter to the main distributor gallery and from there to the main bearings, big-end bearings
and camshaft bearings as well as to the small-end bearings and the rocker arms.
10 9 8
7
6
4
5
32
1
11

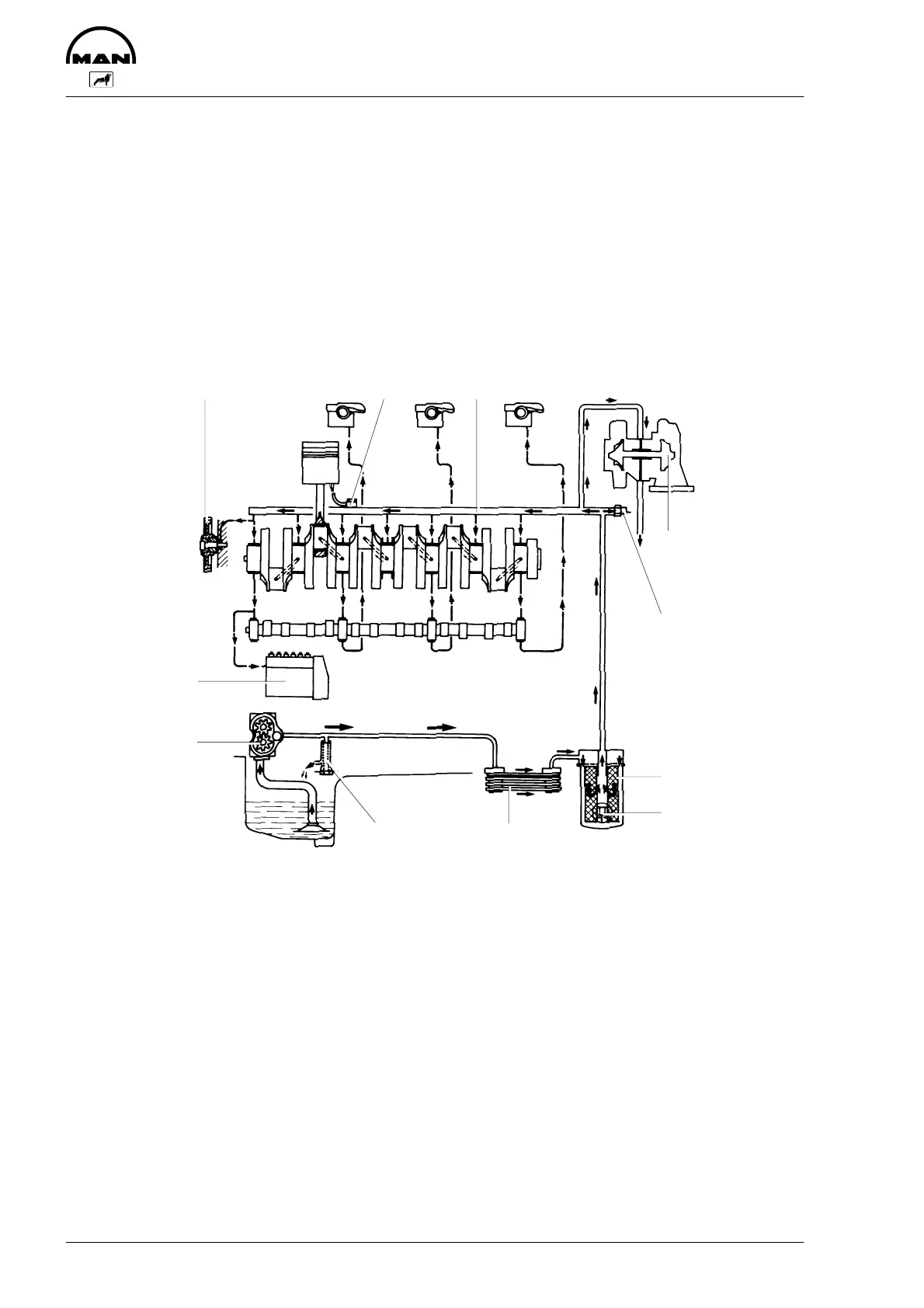

1 Oil pump 7 Turbocharger
2 Oil relief valve 8 Main oil channel
3 Oil cooler 9 Oil jet for piston cooling
4 Oil filter 10 Timing gear idler
5 Bypass valve 11 Injection pump
6 Switch for oil pressure warning lamp
