Turbocharger
The exhaust gases of the engine are passed through the turbine rotor of the turbochar-
ger. Air impeller mounted on the same shaft draws in fresh air and delivers it at a higher
pressure to the cylinders.
The turbocharger is air-cooled. Lubrication of the main bearing is by oil under pressure
from the engine lubricating system.

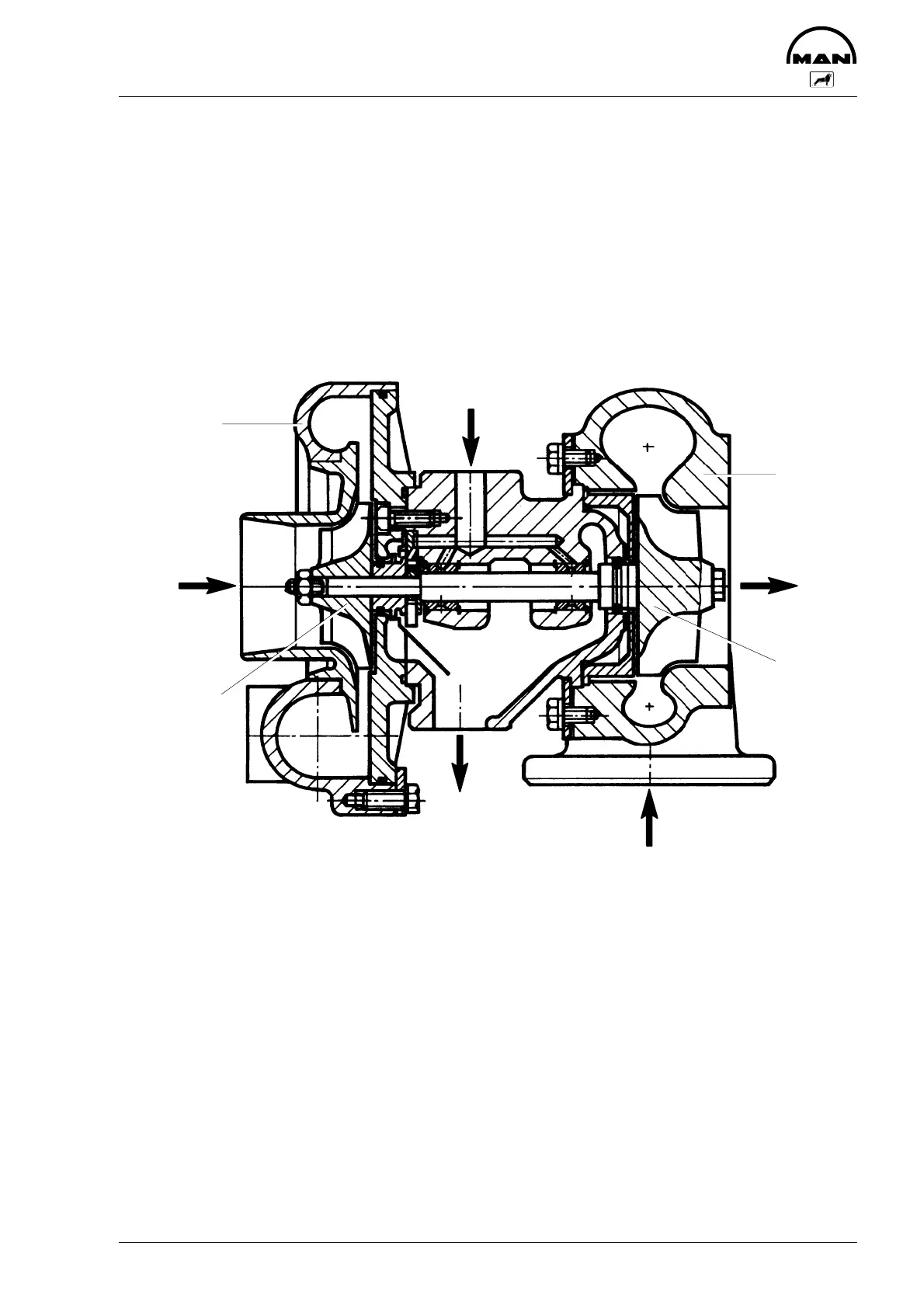

Air-cooled turbocharger K27
3
1
2
4
AB
C
D
E
1 Compressor casing A Air inlet
2 Turbine casing B Gas outlet
3 Compressor wheel C Gas inlet
4 Turbine rotor D Oil inlet
E Oil return
