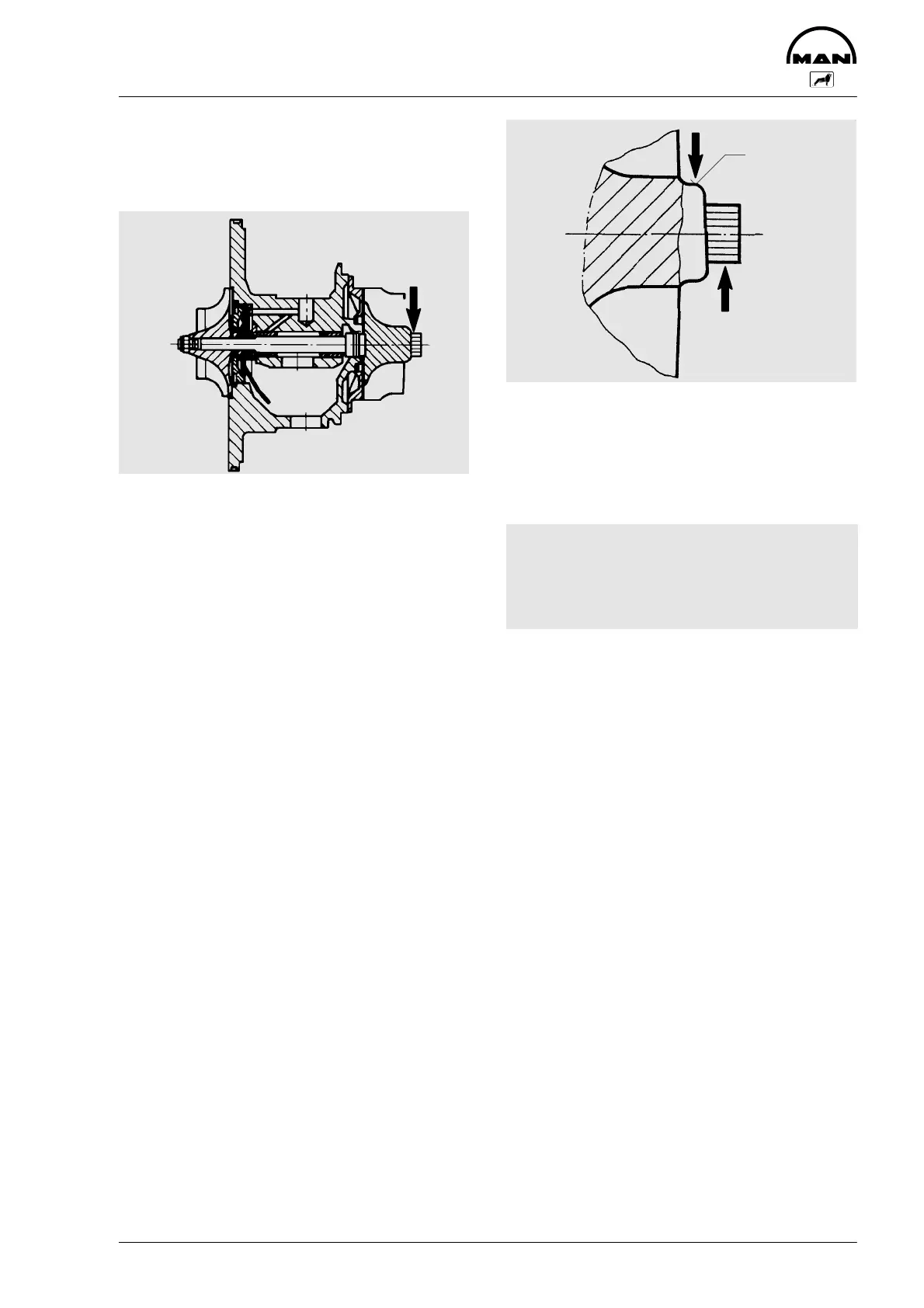

Measuring of radial clearance
(The radial clearance will be determined
only at turbine end)
A
A = Measuring point for dial gauge
B
A
A = Point of support for dial gauge tip
B = Measuring capacity
Axial and radial clearances
Gamme
KKK
axial
(mm)
radial
(mm)
D 0826 LE K 27 0.16 0.43
D 0826 LE 201 K 27 0.16 0.43
If excessive clearances are found, the
turbocharger should be replaced.
