Digital display
This page is opened using the “DIGITAL" function. Important engine and gearbox data is shown here as
bar displays. This form of representation enables easy evaluation of the registered data, including how far
they are away from limit values, as well as their relationship to other values.
Battery voltage, current fuel consumption and total operating hours for both engines are displayed digitally.
In a similar way to the other graphical pages, the table with the unacknowledged alarms is located in the
lower area.
Battery voltage
Rel load
Fuel consumption
Total engine op
erating hours
Area for depiction of star
board engine measuring
points
Area for depiction of port en
gine measuring points
Description of function
keys for software oper
ation
Table of all unac
knowledged alarms

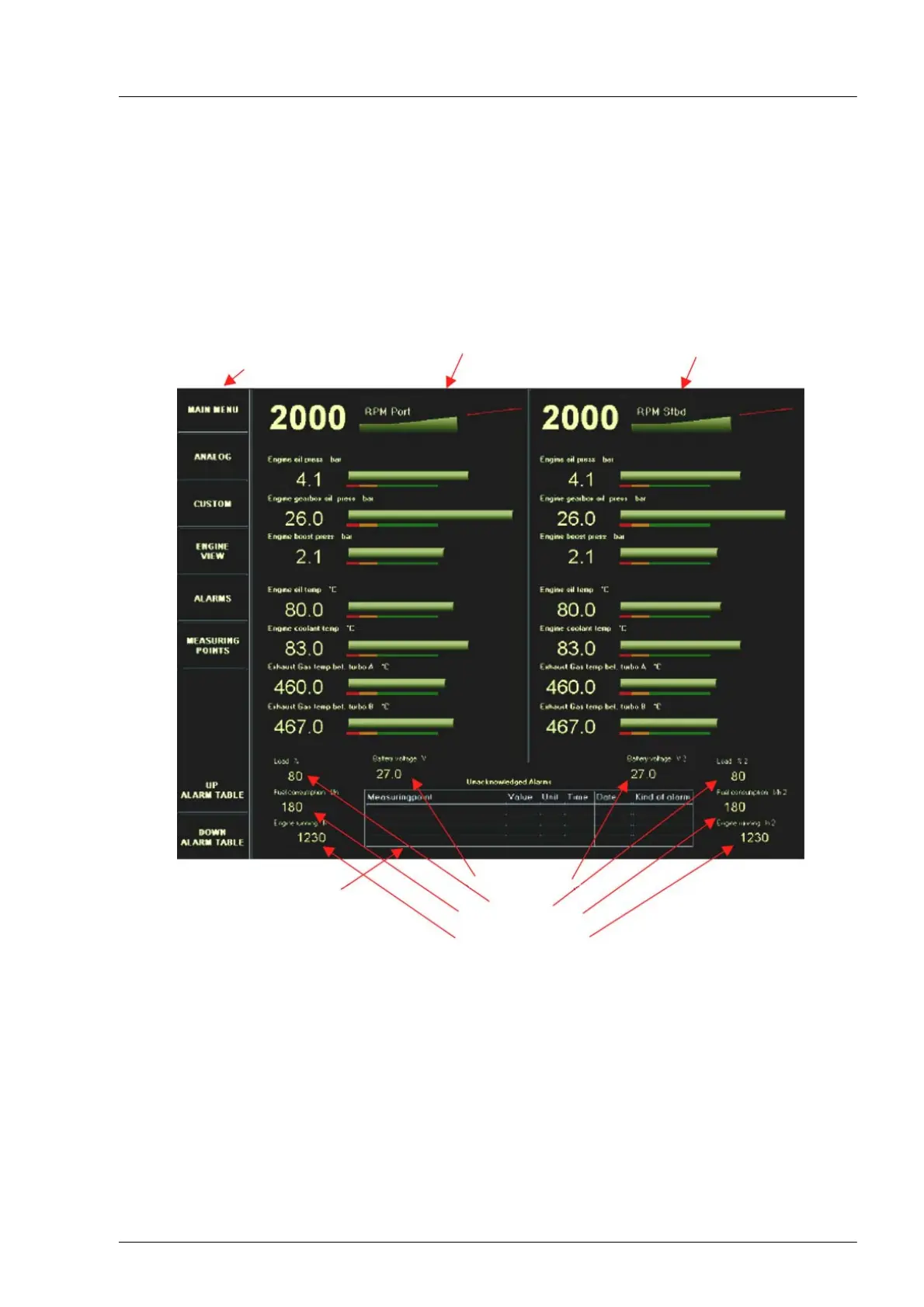

Figure: Digital display
To Next Page
