Commissioning and operation
67
Configuration of user-defined display
A mouse or trackball and a keyboard must be connected to the MMDS-CMS S compact PC in order to con
figure this display. To insert or delete an instrument, click on the softkeys to open the selection menu on
the softkeys (the F7 and F8 keys are disabled here, as a mouse or another pointer devices is required).
Various instruments are available in this menu for the individual measuring points. Selecting an instrument
adds or deletes it.

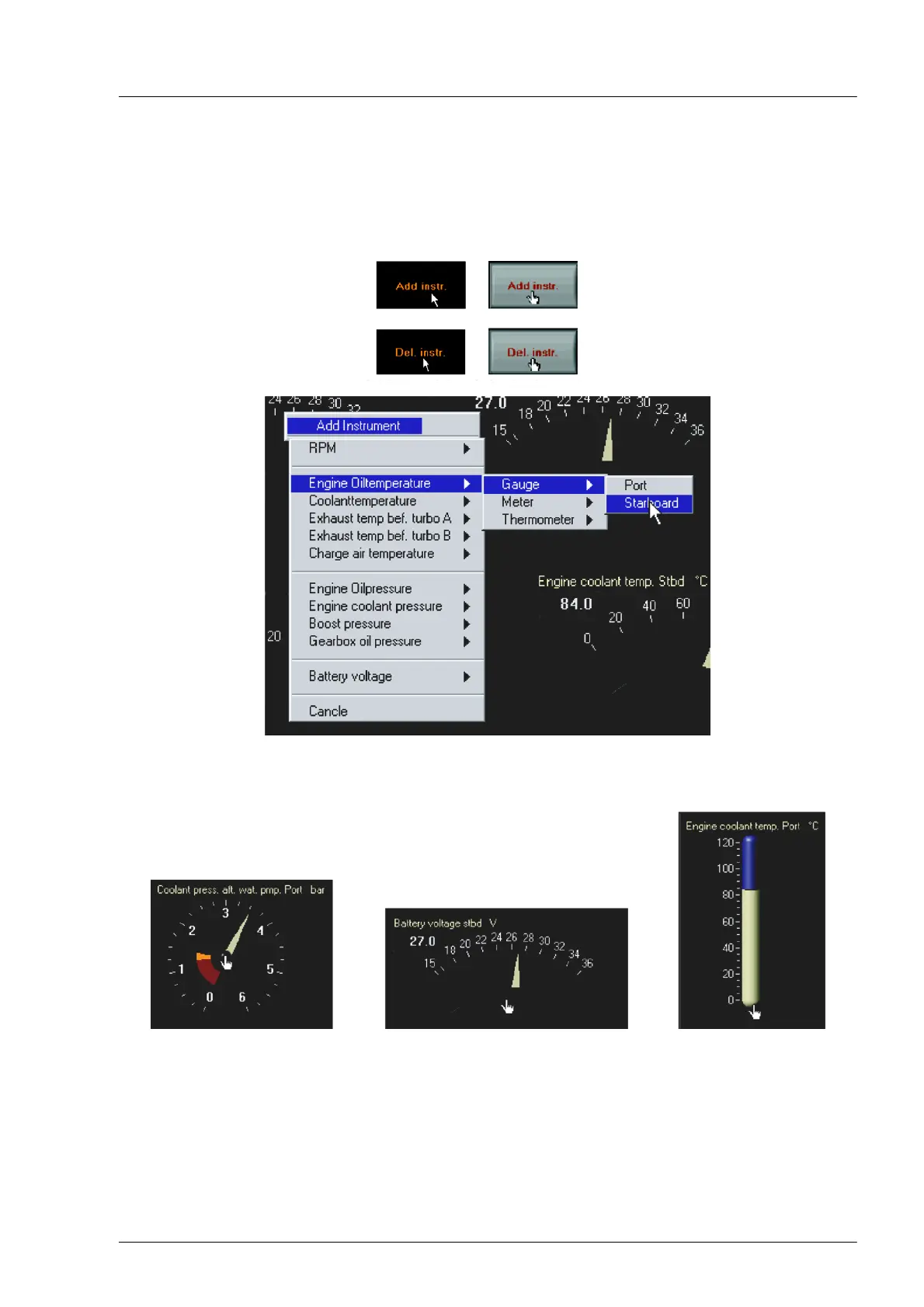

Figure: opening the selection menu
A mouse click on the point is used to configure an instrument.
Figure: click points of the individual instruments
