6.1. Mobile navigating console

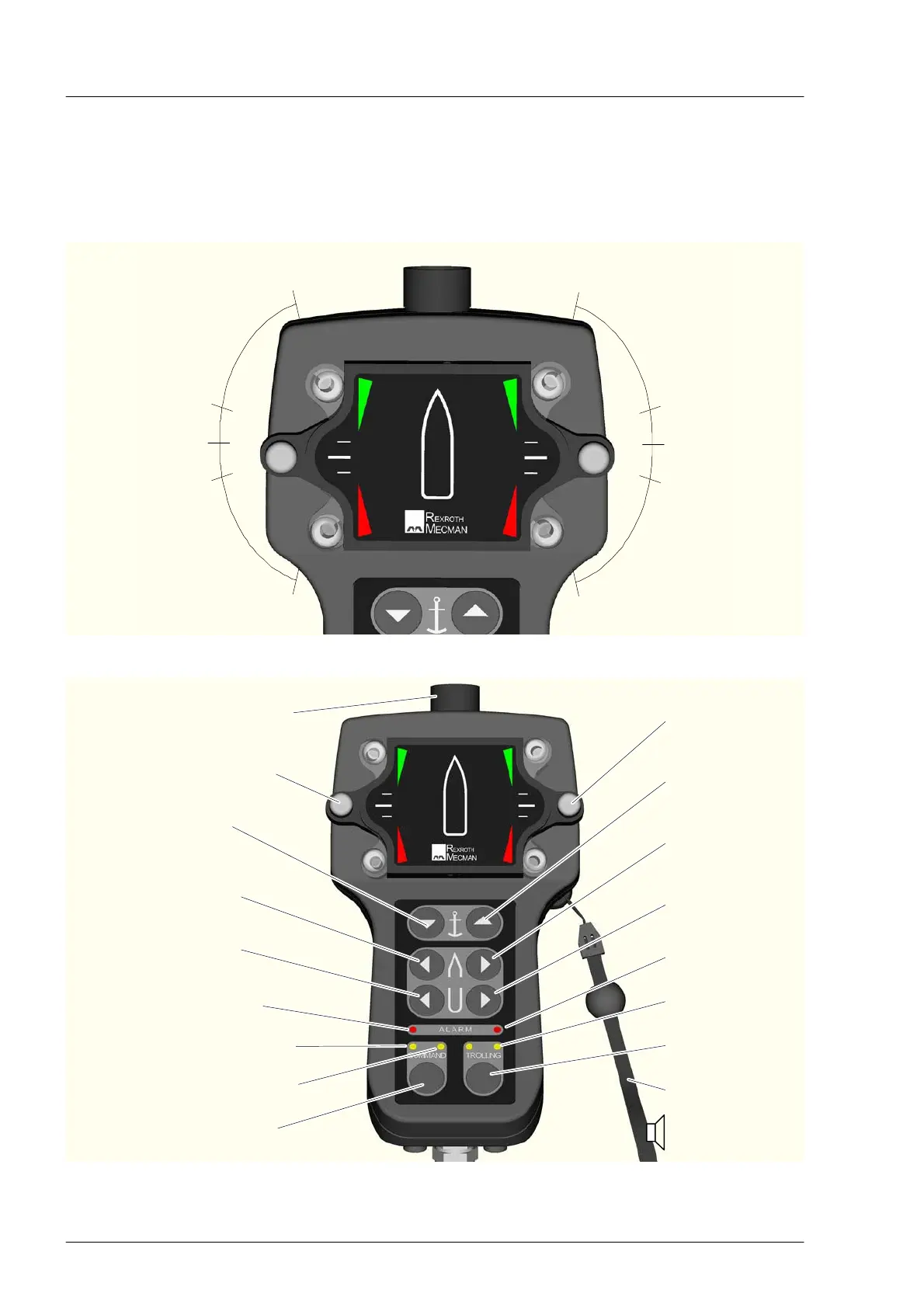

The mobile control console serves to extend freedom of movement. The control signals are transferred to
the MPC via a cable.
The two command master levers are used to set the engine speed and the gearbox position (forwards,
neutral, reverse).
1. Detenta
full ahead
Neutral
1. Detent
full astern
full astern
Neutral
full ahead
astern
ahead
1. Detent
1. Detent
astern
ahead
As an additional user interface the following operating elements are provided:
Anchor winch
Anchor winch
Down button
bow thruster
Up button
stern thruster
Port
Port
portside command LED
portside alarm LED
starboard command LED
command push-button
bow thruster
Starboard button
stern thruster
Starboard button
starboard alarm LE
D
trolling push-button
trolling LED
Command master lever
Port
Command master lever
Starboard
safety stop push-button
dead man's switch
Buzzer
