Technical information
13
Engine timing

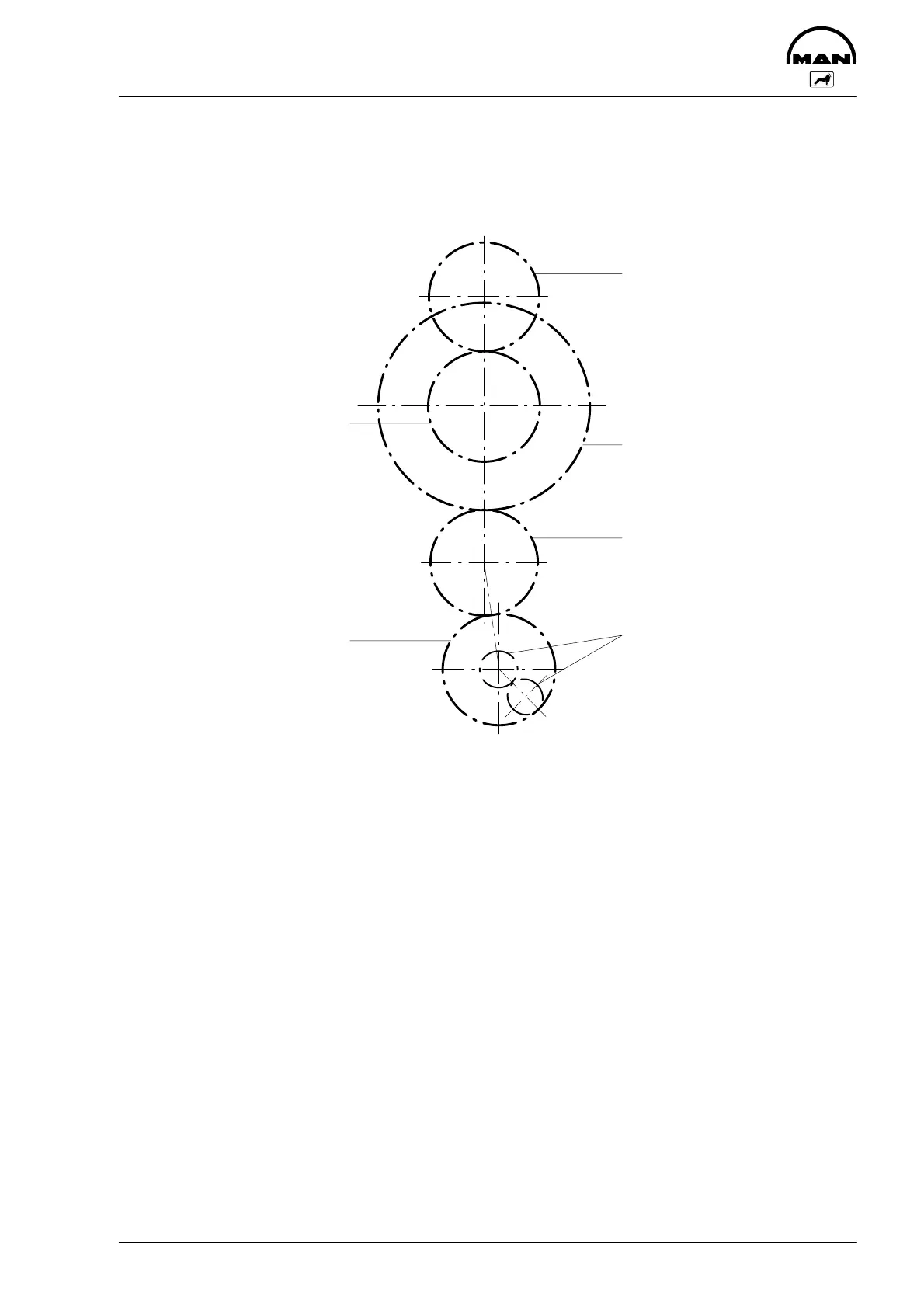

Camshaft, oil pump and distributor are driven by a gear train arranged at the flywheel
end.
1
2
3
4
5
6
2330
1 Crankshaft gear 4 Camshaft drive gear
2 Oil pump drive gear 5 Idler gear
3 Oil pump impeller gears 6 Injection pump drive gear
The crankshaft gear and camshaft gear are match-marked by the digit
”1” or ”D”.
Valves
The overhead valves are actuated via chilled cast-iron mushroom tappets, push and
rocker arms from the camshaft.
