Technical information
18
Ignition system
The engine is equipped with contactless transistorized ignition system (TSZ-i).
The main components of the ignition systems are:
2 Distributor with induction transmitter, 2 Ignition coil,
2 Control unit, 2 Series resistor,
12 Spark plugs.
The drive of the distributor is via a gear train from the timing idler gear.
1
2
345
7
6
III
II
I
TD 31 3 7 15 16 15 4 1 4 A B
1,5 1,5
1,5
1,5
1,5
2338

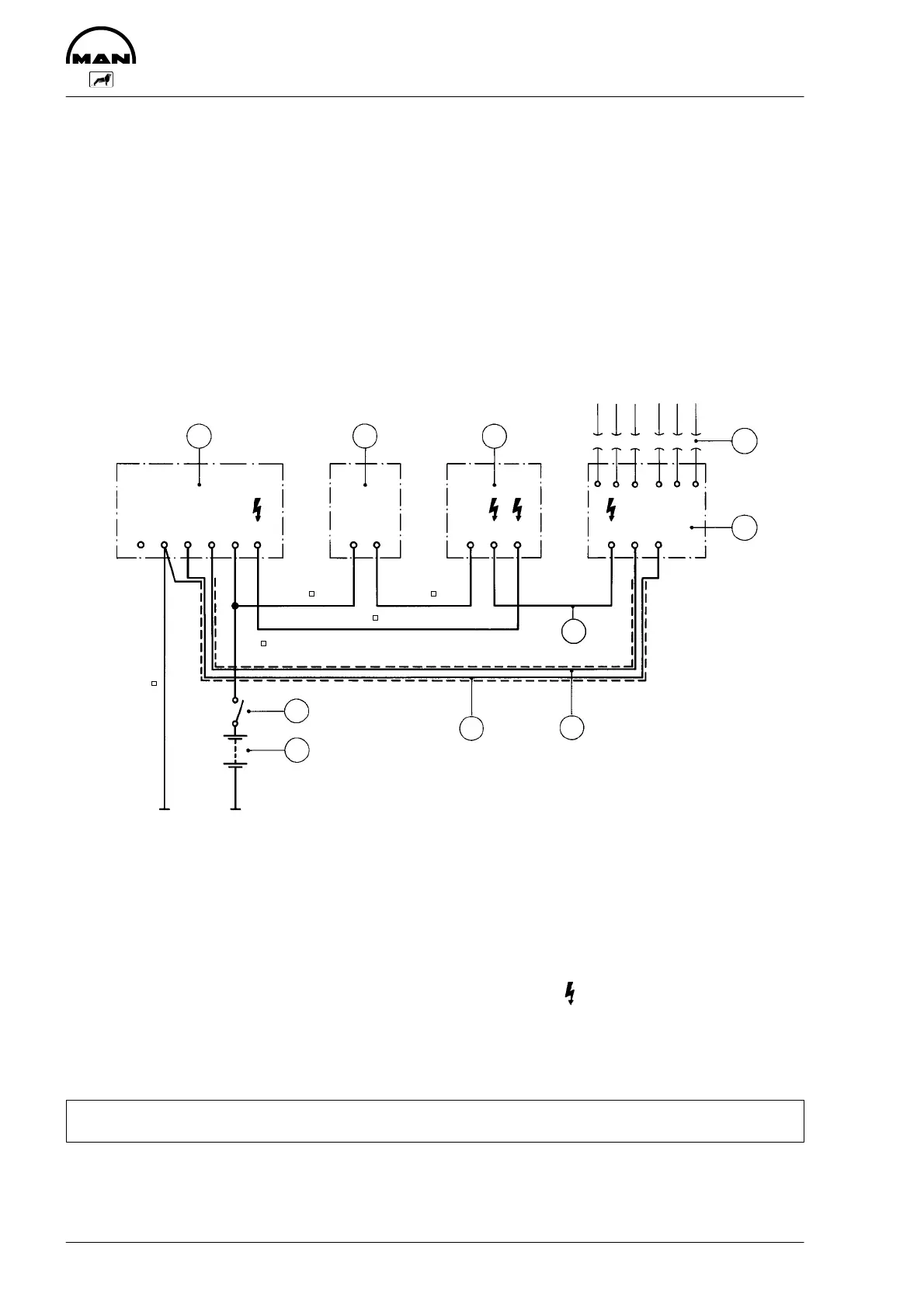

Circuit diagram
1 Battery I yellow
2 Ignition switch II black
3 Control unit III ignition cable
4 Series resistor
5 Ignition coil Caution
6 Distributor with inductive
transmitter Dangerous primary and
7 Spark plugs secondary voltages !
Refer to ”CHECKING AND SETTING” for ”Dangers of electronic ignition systems”
