11 Electromechanical Circuit Programming (Contactor Circuit)
WARNING
To reduce risk of SEVERE INJURY or DEATH to persons:
• Manaras-Opera strongly recommends the use of external entrapment protection devices, especially in
the case of momentary contact to close (B2 wiring or Timer to Close).

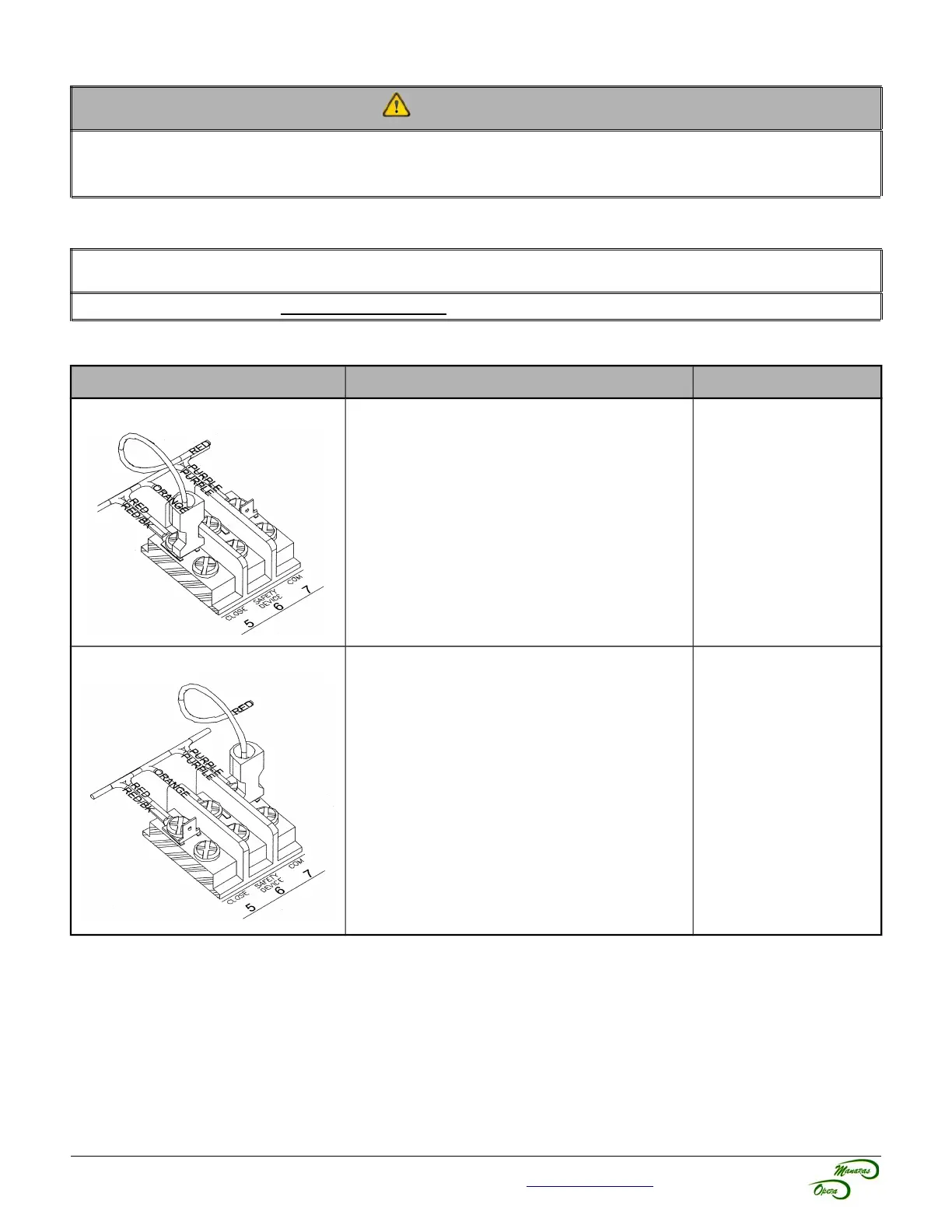

11.1 Run Mode Settings
NOTICE
• Always return the door to fully closed position before performing any program settings.
Mode Functions Operations
C2 • Momentary contact to open and stop,
constant-pressure-to-close with 3-button
station.
• Activation of safety devices will reverse the
door while closing.
• Auxiliary devices function as an Open control
and will reverse the door while closing.
B2 Mode → C2 Mode
Move RED wire from
terminal #7 → #5.
B2 • Momentary contact to open, close and stop
with 3-button station.
• Activation of safety devices will reverse the
door while closing.
• Auxiliary devices function as an Open/Close
control and will reverse the door while
closing.
C2 Mode → B2 Mode
Move RED wire from
terminal #5 → #7.
