4.4 Opera-HJ
Table 16 - Opera-HJ Replacement Components
No Qty Description
Manaras-Opera
Part #
No Qty Description
Manaras-Opera
Part #
1
1 PULLEY 7" x 5/8" 5L/B PULLEY020
7
1 OPERA DISCONNECT FRICTION BAND SHOE011
2
1 CL.PAD 5/8x4x0.125" CLUTCHPAD005
8
1 DISCONNECT SWITCH SHOE SHOE010
3
1 OPERA CLUTCHPLATE CLUTCHPLATE006
9
1 DISCONNECT SWITCH SHOE A SHOE009
4
2 5/8-18 HEX JAM NUT ZP NUT013
10
1 PW ASSEMBLY (ROLLERS AND CLIPS) POCKETWHEEL007
5
1 STD SINGLE CUT-OFF SWITCH LIMIT020
11
1 CHAIN GUIDE OPERA GUIDE014
6
1 SYNTHETIC DISCONNECT CAM OPERA CAM017
For technical support, please call 1-800-361-2260 or visit www.manaras.com for more information

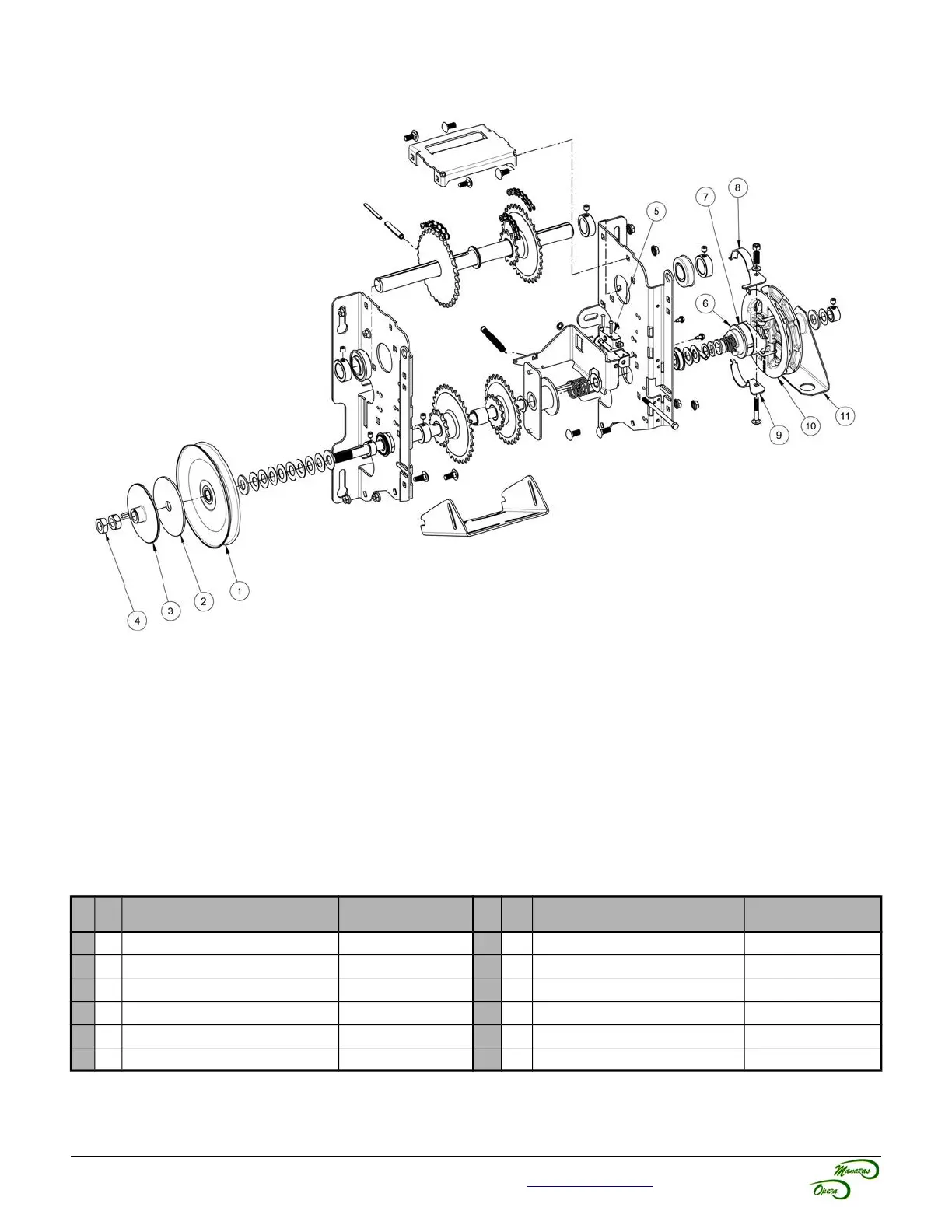

Figure 48 - Opera-HJ Mechanical Exploded View
